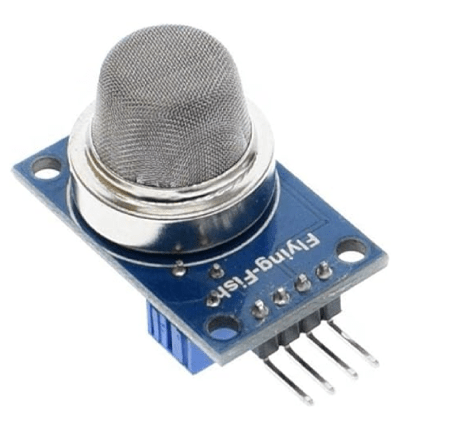

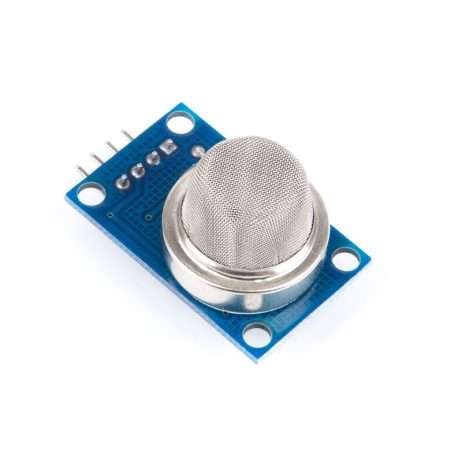

MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module

The gas sensor MQ-2 is a highly reliable and widely used module for detecting combustible gases such as LPG, methane, hydrogen, alcohol, and smoke. This sensor is designed for safety applications in homes, industries, and Arduino-based IoT projects where accurate gas detection is essential. Whether you are building a smart home safety system or an industrial monitoring solution, this sensor provides the performance you need.

The MQ-2 offers a wide detection range from 300 to 10000 ppm, making it far more efficient than ordinary gas sensors. With its fast response time and high sensitivity, this component ensures quick detection of gas leaks, helping prevent accidents and hazards before they become dangerous. Many engineers and hobbyists prefer this module because of its proven track record in real-world applications.

Key Features of Gas Sensor MQ-2

• Wide Detection Range: Detects gas concentration from 300 to 10000 ppm, covering most combustible gases.
• High Sensitivity: Excellent sensitivity to LPG, propane, hydrogen, smoke, methane, and alcohol.
• Fast Response: Immediate detection of gas leakage with response time under 10 seconds.
• Adjustable Sensitivity: Built-in potentiometer allows easy calibration for different environments.
• Dual Output: Supports both analog output (for precise concentration readings) and digital output (for threshold alarms).
• Low Cost & Durable: Long operational life with robust construction and reliable performance.
• Easy Integration: Works seamlessly with Arduino, Raspberry Pi, ESP8266, ESP32, and other microcontrollers.

Gas Sensor MQ-2 Working Principle

The MQ-2 works on tin dioxide (SnO2), which has low conductivity in clean air. When combustible gases are present, the conductivity of the sensing material increases proportionally to the gas concentration. The module converts this change into an electrical signal that can be read by a microcontroller.

This simple yet effective mechanism allows the device to be easily integrated with Arduino, Raspberry Pi, and other microcontrollers for real-time monitoring systems. The analog output provides continuous gas level readings, while the digital output triggers an alarm when a preset threshold is exceeded.

Applications of Gas Sensor MQ-2

• Domestic gas leakage detection systems for kitchens and boiler rooms
• Industrial combustible gas monitoring in factories and warehouses
• Portable gas detection devices for safety personnel
• Smart home safety systems integrated with IoT platforms
• Arduino and IoT automation projects for educational purposes
• Fire detection systems where smoke is an early indicator
• Air quality monitoring in enclosed spaces

Why Choose This Sensor?

The MQ-2 is one of the most popular sensors among engineers and hobbyists due to its accuracy, reliability, and affordability. Unlike single-gas sensors, this module can detect multiple gases using a single unit, making it a cost-effective solution for comprehensive safety monitoring.

With proper calibration, the device provides stable and repeatable results, ensuring long-term performance in safety-critical applications. The built-in comparator and potentiometer allow you to set custom threshold levels without writing complex code.

Technical Specifications

• Detection Range: 300 – 10000 ppm (parts per million)
• Operating Voltage: 5V DC ± 0.1V
• Sensor Type: SnO2 (Tin Dioxide) semiconductor
• Output: Analog (0-5V) and Digital (TTL logic high/low)
• Preheat Time: Approximately 20 seconds for stabilization
• Detectable Gases: LPG, Methane (CH4), Hydrogen (H2), Alcohol, Smoke, Propane, Carbon Monoxide (CO)
• Operating Temperature: -10°C to +50°C
• Humidity Range: 0-95% RH (non-condensing)
• Board Dimensions: 32mm x 22mm x 27mm
• Weight: Approximately 8 grams

Usage Guidelines for Optimal Performance

• Avoid water condensation on the sensor element as it may damage the sensing layer
• Do not expose to high gas concentration for long durations beyond the rated range
• Store in clean air conditions when not in use to preserve sensitivity
• Avoid high humidity environments above 95% RH without proper enclosure
• Protect from excessive vibration and physical damage during installation
• Allow the sensor to stabilize for 5-10 minutes after power-up for accurate readings
• Recalibrate if the sensor has been unused for more than 30 days

Installation Tips for Best Results

• Allow proper preheating of at least 20 seconds before taking measurements
• Adjust sensitivity using the onboard potentiometer while exposing the sensor to a known gas concentration
• Calibrate the sensor before deployment in a clean air environment
• Use with Arduino UNO, Nano, or Mega for best results and easy code integration
• Connect the analog output to an ADC pin for precise gas concentration readings
• Use the digital output with a pull-up resistor for simple threshold-based alarms
• Mount the sensor away from direct airflow sources that may cause false readings

Sample Arduino Connection Guide

To connect this sensor to an Arduino board, follow these simple steps:

• Connect the VCC pin to Arduino 5V
• Connect the GND pin to Arduino GND
• Connect the AO (Analog Output) pin to Arduino A0
• Connect the DO (Digital Output) pin to Arduino D2 (optional)

Once connected, you can read analog values to calculate gas concentration or use the digital output to trigger an LED or buzzer when gas is detected.

Additional Resources

Learn more about gas detection technology from this comprehensive gas detector guide on Wikipedia.

Explore more sensors and modules in our complete sensor collection for all your project needs.

For more Arduino tutorials and project ideas, check out our Arduino Beginner’s Guide and IoT Home Safety Projects.

Package Includes

• 1 x Gas Sensor MQ-2 Module
• 1 x Female-Female jumper wire set (4 wires)

Safety Precautions

• This sensor is designed for gas detection, not as a life-saving device. Always use certified equipment for critical safety applications.
• Test the sensor regularly to ensure proper operation.
• Do not install near strong electromagnetic fields that may interfere with readings.
• Replace the sensor if it shows signs of damage or inconsistent readings.

Conclusion

If you are looking for a reliable gas detection solution for your Arduino, IoT, or home safety project, the MQ-2 module is an ideal choice. It offers high sensitivity, fast response, easy integration, and the ability to detect multiple combustible gases with a single unit. Whether you are a beginner learning electronics or a professional developing safety systems, this sensor provides the performance and reliability you need at an affordable price point.

Order your MQ-2 gas sensor today from Mall of Aviation and take the first step toward smarter, safer project development.
