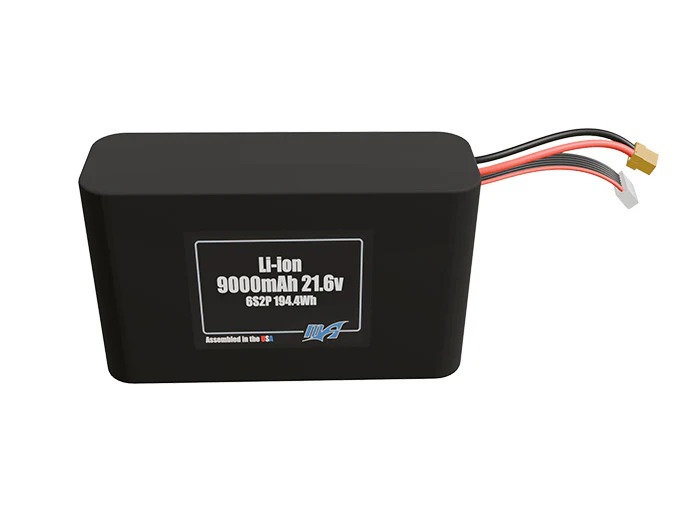

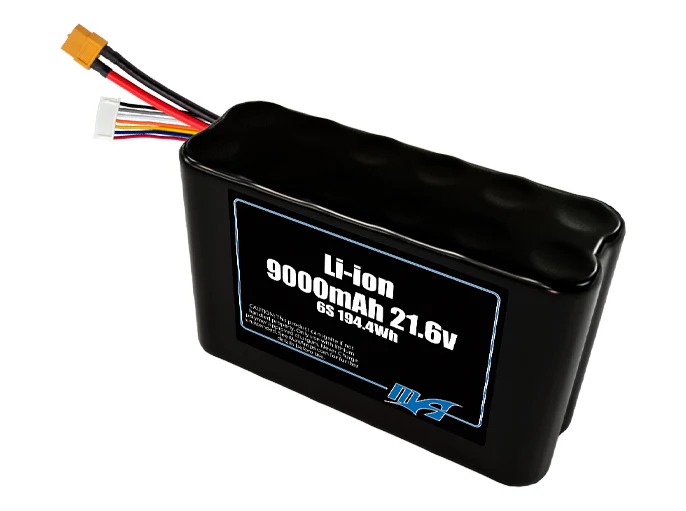

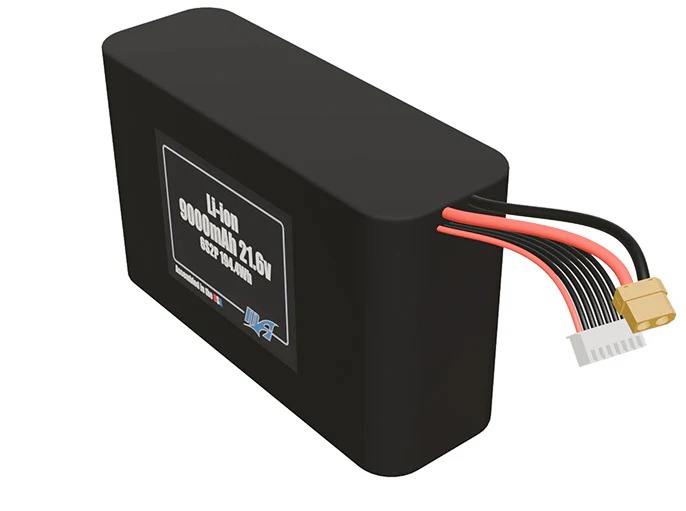

Li-ion Battery 9000mAh 6S2P
- Estimated Delivery : Up to 4 business days
Li-ion Battery 9000mAh 6S2P – MaxAmps Lithium Batteries
The MaxAmps Li-ion Battery 9000mAh 6S2P is a high-capacity lithium-ion battery pack designed for compatible UAV, drone, and other applications requiring a suitable 6S power source. It features voltage-matched Grade A cells, a proprietary low-temperature/high-current assembly process, and configurable connector and wire-length options.
Key Features
- 9000mAh (9Ah) capacity
- 6S 21.6V nominal voltage
- Maximum voltage: 25.2V
- Maximum continuous discharge: 90A
- Maximum charge current: 9A
- Factory-fresh Grade A cells with voltage matching
- Pure copper wire with silicone insulation; wire gauge depends on connector choice
- PVC outer covering for the standard battery configuration
- Choice of connectors and wire lengths
- Assembled in the USA, according to the supplied product information
Technical Specifications
| Brand | MaxAmps Lithium Batteries |
|---|---|
| Capacity | 9000mAh / 9Ah |
| Battery configuration | 6S2P |
| Chemistry | Lithium-ion (Li-ion) |
| Nominal voltage | 21.6V |
| Maximum voltage | 25.2V |
| Minimum voltage | 15V |
| Recommended landing voltage (air) | 18V |
| Recommended cutoff voltage (ground) | 16.2V |
| Maximum continuous discharge | 90A |
| Maximum charge current | 9A |
| Energy | 194.4Wh |
| Energy density | 222Wh/kg |
| Main lead length | 5.5 inches (140mm); custom lengths available |
| Balance lead length | 5.5 inches (140mm); custom lengths available |
| Length | 5.08 inches (129mm) |
| Width | 1.73 inches (44mm) |
| Height | 3.07 inches (78mm) |
| Weight | 30.82oz (874g) |
Available Upgrades
- Hard case: Aluminum-rubber composite construction. Adds approximately 5–15mm to length, width, and height, and 5% to weight.
- State-of-charge indicator: Momentary push-button LED indicator. Adds 6mm to length and 10g to weight.
- Self-balancing unit: Externally balances individual battery cells, with no added weight or dimensions according to the supplied specifications.
- DroneCAN adapter: Optional bus communication adapter, listed with a maximum rating of 150A in the supplied information. Confirm compatibility before ordering.
- Battery handle: Provides a smoother transition when removing the battery from a platform. Adds approximately 8mm to length, 2mm to width, 4mm to height, and 35g to weight.
Quality and Support
The supplied product information lists a lifetime warranty, lifetime USA customer support, ISO 9001 and ISO 14001 compliance, NDAA compliance, dangerous-goods certification, and military-grade assembly. Confirm applicable warranty terms, certifications, and shipping eligibility with the seller before purchase.
Custom configurations, additional functionality, and engineered drawings are available upon request, according to the supplied product information.
Explore drone batteries, UAV components, and accessories at Mall of Aviation.
Safety: Use a compatible lithium-ion charger and follow the manufacturer’s charging, storage, and handling instructions. Verify voltage, connector type, current requirements, and physical dimensions before installation.
