Cube Orange+ Standard Set ADS-B
- Estimated Delivery : Up to 4 business days
Cube Orange+ Standard Set ADS-B – Non-Chinese Flight Controller with H7 Processor
The Cube Orange+ Standard Set ADS-B is an advanced autopilot flight controller designed for professional UAV development, drone enthusiasts, educational projects, and autonomous vehicle applications. Powered by a high-performance H7 processor and equipped with a triple-redundant IMU system, the Cube Orange+ provides a powerful foundation for building reliable and versatile unmanned vehicles.
This configuration combines the Cube Orange+ flight controller with an ADS-B carrier board featuring an integrated 1090 MHz ADS-B receiver. When compatible aircraft broadcast ADS-B information, the system can receive aircraft position, altitude, speed, and other available traffic data for display in supported ground control software.
With a compatible flight stack and appropriate configuration, supported aircraft can use ADS-B traffic information to implement aircraft awareness and configured avoidance behaviors. Actual avoidance functionality depends on the vehicle, firmware, parameters, installation, and applicable operational requirements.
The Cube Orange+ supports a wide range of vehicle configurations, including multicopters, fixed-wing aircraft, VTOL platforms, helicopters, rovers, boats, and submarines. Its modular design, multiple interfaces, and redundant sensors make it suitable for research, prototyping, industrial UAV development, and advanced flight-control applications.
Key Features of the Cube Orange+ Standard Set ADS-B
1. High-performance H7 processor
The Cube Orange+ features a modern H7-series processor designed to handle demanding flight-control tasks, sensor processing, navigation, and supported autonomous flight functions. Its processing capabilities provide a foundation for complex UAV configurations and advanced autopilot applications.
2. Integrated 1090 MHz ADS-B receiver
The included ADS-B carrier board integrates a receiver for compatible 1090 MHz ADS-B transmissions. It can provide aircraft traffic information, including position, altitude, and speed when the aircraft broadcasts the relevant data and reception conditions are suitable.
3. Aircraft traffic awareness and configurable avoidance
With compatible firmware and correct configuration, ADS-B traffic information can be used to support aircraft awareness and configured avoidance functions. Pilots and developers can configure supported behaviors according to their vehicle setup and operating requirements.
ADS-B reception alone does not guarantee collision avoidance. It should not replace visual observation, airspace awareness, approved operating procedures, or other required safety measures.

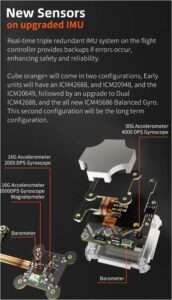

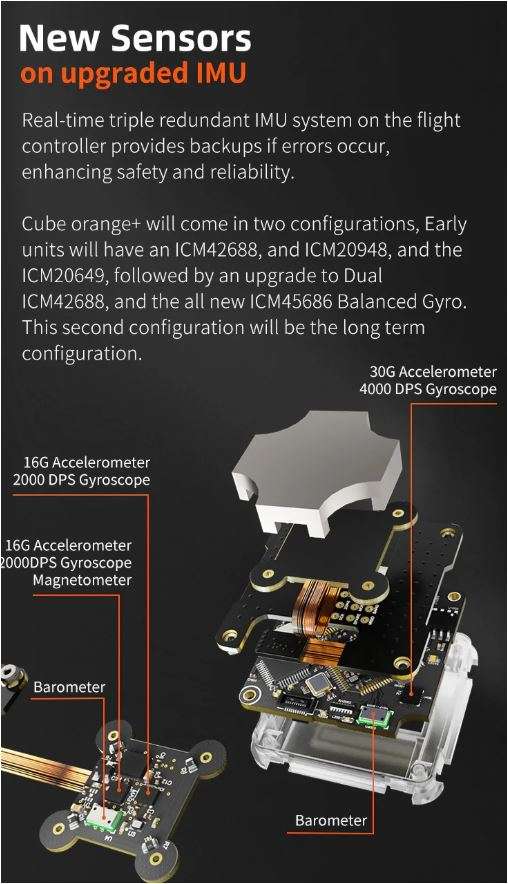

4. Triple-redundant IMU system
The Cube Orange+ incorporates three inertial measurement units (IMUs) to provide redundant motion-sensing capability. Sensor redundancy supports flight-controller reliability and can help compatible firmware identify sensor inconsistencies and select an appropriate sensor.
5. Temperature-controlled IMU heating
The flight controller includes an IMU heating and temperature-control system designed to help maintain suitable sensor operating conditions in cold environments. The stated operating temperature for this configuration is -10°C to +55°C; verify the applicable manufacturer’s specifications before use in demanding environments.
6. Shock-resistant modular construction
The Cube uses a compact aluminum-alloy enclosure and a dedicated carrier board. The design includes robust DF17 interface connectors intended to improve connection reliability and resistance to vibration and shock.
Correct mounting, vibration isolation, wiring, and installation remain essential for dependable flight performance.
7. Broad vehicle compatibility
The Cube Orange+ can support compatible configurations for:
- Multirotor drones
- Fixed-wing aircraft
- VTOL aircraft
- Traditional helicopters
- Ground rovers
- Boats and surface vehicles
- Submarines
- Robotics and autonomous vehicle projects
Supported functionality depends on the chosen firmware, airframe configuration, sensors, and connected hardware.
8. ArduPilot and PX4 compatibility
The Cube Orange+ supports major open autopilot ecosystems, including ArduPilot and PX4, subject to hardware revision and firmware compatibility. These platforms offer configuration, navigation, telemetry, mission planning, and flight-control capabilities.
Mission Planner can be used with supported ArduPilot configurations to configure the autopilot, monitor telemetry, and inspect compatible ADS-B traffic information.
9. Multiple input and peripheral interfaces

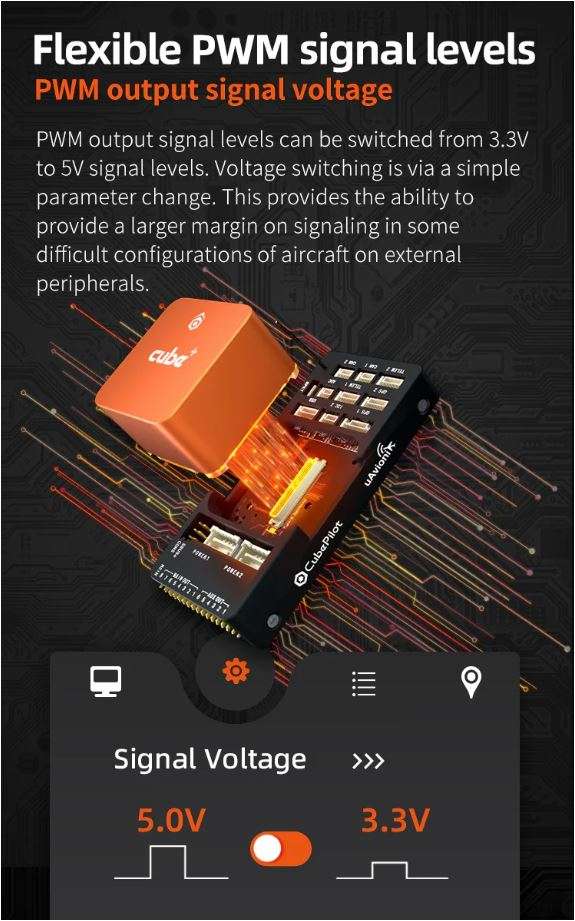

The flight controller provides multiple PWM outputs and interfaces for connecting compatible GPS modules, telemetry systems, power modules, I2C peripherals, and other supported accessories.
These interfaces make the Cube Orange+ suitable for complex UAV installations that require additional sensors and peripheral hardware.
Technical Specifications
| Specification | Details |
|---|---|
| Product name | Cube Orange+ Standard Set ADS-B |
| Product type | Autopilot flight controller kit |
| Processor | H7-series processor |
| ADS-B receiver | Integrated into the ADS-B carrier board |
| ADS-B frequency | 1090 MHz |
| IMU configuration | Triple IMU system |
| Barometer | MS5611 series × 2, as specified |
| RC signal inputs | PPM / SBUS / DSM, subject to configuration |
| PWM I/O | 14 |
| GPS/serial interfaces | 4 |
| Debug interfaces | 2 |
| I2C interfaces | 2 |
| Supported firmware | ArduPilot, PX4, and other listed compatible firmware |
| Supported vehicle types | Multicopter, fixed-wing, VTOL, helicopter, rover, boat, submarine |
| Flight controller dimensions | 38.4 × 38.4 × 22 mm |
| Carrier board dimensions | 94 × 44.3 × 7.3 mm |
| Flight controller weight | Approximately 73 g, as supplied |
| Chassis material | CNC aluminum-alloy enclosure and ABS carrier board |
| Operating temperature | -10°C to +55°C, as specified |
| Temperature management | IMU heating and temperature control |
| Country of origin | Taiwan, according to supplied product information |
| Shipping weight | 0.335 kg |
| Shipping dimensions | 17 × 10 × 7 cm |
Sensor configuration note: The exact IMU component variants may differ by hardware revision. Confirm the specific components and firmware support with the supplier before purchase.
What Is Included in the Package?
The Cube Orange+ Standard Set ADS-B package includes:
- 1 × Cube Orange+ flight controller with ADS-B carrier board kit
- 1 × Cube Orange+
- 1 × ADS-B carrier board
- 1 × Power Brick Mini
- 1 × I2C board
- 1 × buzzer cable
- 2 × CAN cables
- 1 × Power Brick Mini cable
- 1 × GPS1 cable
- 1 × Micro USB cable
- 2 × I2C cables
- 4 × mounting screws
- 3 × large 3M stickers
- 2 × medium 3M stickers
- 4 × small 3M stickers
Check the supplied kit inventory before dispatch, as package contents may vary by revision or supplier.
Applications of the Cube Orange+ ADS-B Flight Controller
Professional UAV development
Developers can use the Cube Orange+ as the autopilot foundation for UAV prototypes, navigation systems, and advanced autonomous flight projects.
Education and research
Universities, engineering students, and research teams can use the platform to explore flight control, sensor fusion, autonomous navigation, telemetry, and UAV system integration.
Industrial and commercial drones
The controller can be integrated into compatible platforms for surveying, mapping, inspection, and other professional applications, subject to the aircraft design and regulatory requirements.
VTOL and fixed-wing platforms
The Cube Orange+ supports suitable fixed-wing and VTOL configurations, enabling developers to work with different aircraft designs using compatible firmware.
Robotics and autonomous vehicles
Beyond aircraft, the controller can support compatible rover, boat, submarine, and robotics configurations.
Why Choose the Cube Orange+ Standard Set ADS-B?
The Cube Orange+ Standard Set ADS-B combines an H7-based flight controller, redundant inertial sensing, a modular carrier board, and an integrated ADS-B receiver in one kit. It is a useful option for developers seeking an autopilot platform with aircraft traffic awareness capabilities and support for multiple vehicle types.
Before selecting this configuration, verify that the ADS-B receiver, carrier board, firmware, GPS setup, and intended vehicle are compatible with your project. Additional components such as a GPS module, telemetry radio, receiver, ESCs, motors, and power distribution hardware may be required depending on the application.
Installation and Configuration Considerations
Before flying, install the flight controller according to the manufacturer’s instructions and the requirements of your airframe. Use suitable vibration isolation, check all electrical connections, calibrate sensors, configure the correct frame type, and perform pre-flight checks.
For ADS-B functionality, confirm that the receiver is detected, that compatible aircraft traffic data is available in the operating area, and that the selected firmware supports the intended traffic-awareness or avoidance behavior. Test the complete configuration safely and in accordance with applicable aviation regulations.
Frequently Asked Questions
1. What is the Cube Orange+ Standard Set ADS-B?
It is a flight-controller kit that combines the Cube Orange+ autopilot with an ADS-B carrier board featuring an integrated 1090 MHz receiver. It is designed for compatible UAV and autonomous vehicle projects requiring advanced flight-control capabilities and aircraft traffic information.
2. What does ADS-B mean?
ADS-B stands for Automatic Dependent Surveillance–Broadcast. It is an aviation surveillance technology through which suitably equipped aircraft broadcast information such as their position, altitude, velocity, and identification data.
3. What is the purpose of the ADS-B receiver?
The receiver allows the compatible flight-control system to receive supported aircraft broadcasts. Traffic information can be displayed in compatible ground control software and may be used by supported configurations for aircraft-awareness or avoidance functions.
4. Does the Cube Orange+ automatically avoid other aircraft?
Automatic avoidance is not guaranteed simply by installing the flight controller. It depends on supported firmware, correct parameter configuration, traffic data, vehicle capabilities, and the implementation of an appropriate avoidance system. ADS-B should not be treated as a substitute for required pilot responsibilities or approved safety procedures.
5. What ADS-B frequency does this kit support?
The supplied ADS-B carrier board is specified to receive ADS-B transmissions at 1090 MHz. Confirm receiver coverage and compatibility with the intended aircraft traffic environment.
6. Which processor does the Cube Orange+ use?
It uses an H7-series processor designed to provide the processing capability needed for demanding autopilot tasks, navigation, sensor management, and supported autonomous functions.
7. How many IMUs does the Cube Orange+ have?
The supplied specifications identify a triple-IMU configuration. The individual sensor models can vary with hardware revision.
8. Which firmware is compatible with the Cube Orange+?
ArduPilot and PX4 are listed as supported firmware platforms. Check the exact hardware revision and current firmware documentation to confirm compatibility and available features.
9. Can I use the Cube Orange+ with Mission Planner?
Yes, with a compatible ArduPilot setup, Mission Planner can be used for configuration, telemetry monitoring, mission planning, and viewing supported traffic information.
10. Which types of vehicles can use the Cube Orange+?
Compatible applications include multicopters, fixed-wing aircraft, VTOL aircraft, helicopters, rovers, boats, and submarines. The required configuration differs for each vehicle type.
11. Does the kit include a GPS module?
The listed package includes a GPS1 cable, but a cable is not the same as a GPS receiver. Confirm whether a GPS module is included before ordering.
12. Does the kit include telemetry equipment?
A telemetry radio is not explicitly listed in the supplied package contents. Additional telemetry hardware may be necessary for wireless communication with a ground control station.
13. What are the dimensions of the Cube Orange+?
The listed flight-controller dimensions are 38.4 × 38.4 × 22 mm. The ADS-B carrier board measures 94 × 44.3 × 7.3 mm.
14. What is the weight of the flight controller?
The supplied specification lists approximately 73 g for the flight controller. The complete kit has a stated shipping weight of 0.335 kg.
15. Can the Cube Orange+ operate in cold weather?
The product specification lists an operating temperature range of -10°C to +55°C and describes IMU heating and temperature control. The complete aircraft must also be suitable for the intended environmental conditions.
16. Is the Cube Orange+ suitable for beginners?
It can be used in educational projects, but installation and configuration require knowledge of flight controllers, sensors, wiring, firmware, and aircraft safety. Beginners should start with a suitable test platform and follow manufacturer documentation.
17. Is the Cube Orange+ a non-Chinese flight controller?
The supplied product information identifies Taiwan as the country of origin. If country of origin is a procurement requirement, verify the exact kit’s manufacturing origin and documentation with the supplier before purchase.
18. What additional components may be required?
Depending on the vehicle, you may need a compatible GPS, telemetry system, RC receiver, power distribution system, ESCs, motors, airframe, and other sensors. Check the requirements of your specific configuration.
19. Is the ADS-B receiver a replacement for a dedicated collision-avoidance system?
No. ADS-B provides traffic information from compatible broadcasting aircraft. Reception gaps, aircraft without compatible broadcasts, and system limitations mean it cannot guarantee detection or collision prevention.
20. What should I check before buying?
Verify the exact hardware revision, included components, ADS-B receiver compatibility, supported firmware, connector requirements, GPS and telemetry needs, dimensions, weight, warranty, and country-of-origin documentation.
Order the Cube Orange+ Standard Set ADS-B
Choose the Cube Orange+ Standard Set ADS-B for your compatible UAV development, flight-control research, or autonomous vehicle project. Review the technical specifications and package contents, and contact the supplier if you need help confirming hardware compatibility before ordering.
The Cube Orange+ Standard Set ADS-B is a non chinese flight controller which comes with an H7 processor, features a 1,090 MHz ADS-B receiver from Avionic, automatically avoids aircraft, and Is integrated into the new ADS-B carrier board. Through the parameter setting, the autopilot can optionally set up the cube to allow the vehicle to automatically avoid an aircraft that is detected in an exclusion zone set by the pilot. The Cube Orange targets education, amateur drone lovers, and professionals with cost-effective flight control hardware. This is one of the most user friendly flight controller which is non chinese flight controller.
