HGLRC ELRS Gemini RX 2.4G Dual Receiver (ExpressLRS)

HGLRC ELRS Gemini RX 2.4G Dual Receiver for ExpressLRS Systems – Complete Guide

The HGLRC ELRS Gemini RX 2.4G is an advanced dual receiver designed specifically for ExpressLRS systems, offering exceptional signal reliability, ultra-low latency, and outstanding long-range performance for FPV drones and UAV platforms. Built with true diversity technology, this advanced receiver integrates dual antennas and dual RF chips to ensure stable communication even in the most challenging RF environments. Whether you are a freestyle pilot pushing the limits of your drone or a long-range explorer flying miles away, this receiver delivers the confidence you need to fly further and harder.

This dual receiver is ideal for freestyle pilots, long-range drone builders, and professional UAV users who require consistent and interference-resistant signal transmission. With the growing popularity of ExpressLRS as the go-to RC link for FPV enthusiasts, having a reliable receiver like this one is no longer a luxury — it is a necessity for serious pilots.

What Makes This ExpressLRS Dual Receiver Unique?

This HGLRC receiver stands out from conventional receivers due to its true diversity system. Unlike standard receivers that rely on a single antenna and a single RF path, this unit uses two antennas and two independent RF modules to receive signals simultaneously. This dual-path approach significantly reduces signal loss and dramatically improves reliability during flight.

When the two antennas are positioned at a 90-degree angle to each other, the receiver minimizes signal drop caused by polarization mismatch. This is particularly important during aggressive freestyle maneuvers where your drone constantly changes orientation. The result is better control, fewer failsafes, and a more enjoyable flying experience, especially during long-range missions or technical freestyle sessions.

Dual Communication and Anti-Interference Performance

This advanced receiver features dual communication links that operate simultaneously, providing exceptional anti-interference capabilities. In today’s world, the 2.4GHz spectrum is crowded with Wi-Fi routers, Bluetooth devices, and other RC systems. The dual-link design of this HGLRC unit ensures stable signal transmission even in these noisy RF environments, giving you peace of mind when flying in urban areas or near other pilots.

The integration of dual-channel SX1281 RF chips combined with PA/LNA amplifiers significantly enhances signal strength and sensitivity. This makes the receiver suitable for high-performance drone applications where every millisecond of response time matters. Whether you are racing through gates at high speed or cruising through mountain valleys, this unit delivers the performance you demand.

ExpressLRS Technology Benefits

ExpressLRS is a modern open-source RC system celebrated for its ultra-low latency and long-range capabilities. This HGLRC dual receiver fully utilizes these advantages to deliver fast response times and reliable communication. With refresh rates up to 1000Hz, this unit ensures ultra-smooth control, making it ideal for racing, freestyle, and cinematic flying where precise inputs are critical.

For pilots who want to learn more about the ExpressLRS ecosystem, visit the official ExpressLRS website for documentation, firmware updates, and community support. The open-source nature of ExpressLRS means continuous improvements, and this receiver is fully compatible with the latest ExpressLRS firmware releases.

TCXO Stability for Reliable Performance

This HGLRC receiver includes a TCXO (Temperature Compensated Crystal Oscillator), which maintains stable frequency performance even under extreme temperature variations. This is a critical feature for pilots who fly in different climates or during long flight sessions where internal temperatures can rise. The TCXO ensures consistent signal transmission during long flights and varying environmental conditions, reducing the risk of frequency drift and signal loss.

Easy Installation and Connectivity

The dual receiver is designed for easy installation with plug-and-play connectors and convenient solder pads. This dual-connection approach allows quick setup and easy replacement in drone builds. Whether you prefer soldering for a permanent, lightweight installation or using connectors for modular builds, this receiver accommodates both methods.

It is compatible with a wide range of flight controllers used in FPV drone systems, making integration simple and efficient. The compact form factor of this HGLRC unit ensures it fits easily into tight builds, including 3-inch and 5-inch freestyle frames as well as long-range 7-inch platforms.

Applications of This ExpressLRS Receiver

The versatility of this dual receiver makes it suitable for a wide range of applications:

• FPV Freestyle Drones: The dual antenna diversity ensures you never lose signal during aggressive flips, rolls, and power loops.
• Long-Range Drone Builds: With its robust signal reliability, this receiver is perfect for mountain surfing and long-distance exploration.
• Racing Drones: The ultra-low latency and high refresh rate give racers a competitive edge.
• Professional UAV Systems: For commercial applications, signal reliability is paramount. This receiver delivers.
• DIY Drone Projects: Hobbyists and builders will appreciate the easy integration and open-source compatibility.

For building complete drone systems, you can explore additional drone components to enhance performance and compatibility with this HGLRC receiver.

Technical Highlights

• Frequency: 2.4GHz

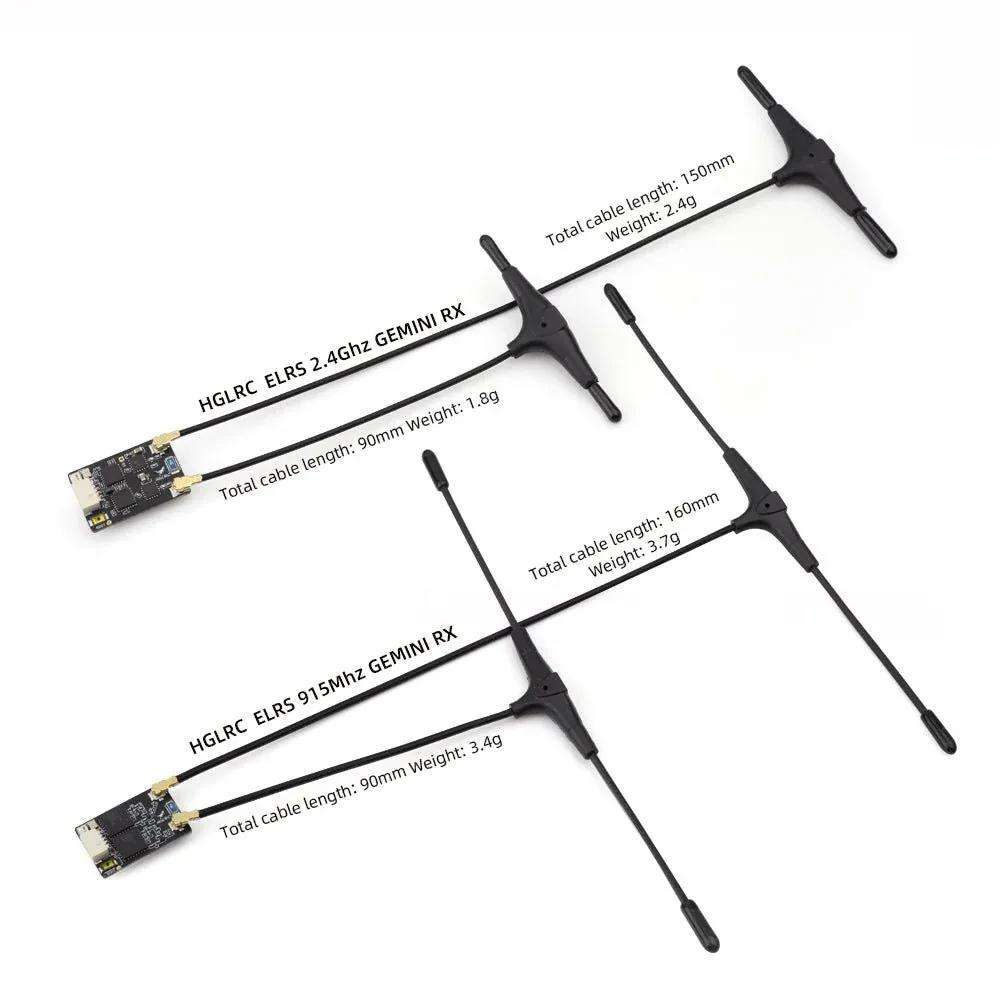

• Diversity System: Dual antenna true diversity with 90-degree optimal placement
• RF Chips: Dual SX1281 chips for stable dual-path reception
• Telemetry Power: Up to 100mW for reliable return signal
• Latency: Ultra-low latency with refresh rates up to 1000Hz
• Firmware Updates: WiFi firmware upgrade support for easy maintenance
• Oscillator: TCXO for temperature-stable frequency control
• Amplifiers: PA/LNA for enhanced signal strength and sensitivity

Complete Features List

• Dual communication link with superior anti-interference performance
• True diversity dual reception system for signal redundancy
• TCXO for stable frequency control across temperature ranges
• Plug-and-play installation with optional solder pad support
• Long-range and low-latency communication for all flying styles
• Compact and lightweight design for easy integration
• WiFi-based firmware updates — no special hardware required
• Compatible with all major ExpressLRS transmitters and modules

Package Includes

• 1x HGLRC ELRS Gemini RX 2.4G Receiver
• 1x Short Antenna for compact builds
• 1x Long Antenna for optimal range
• 1x Heatshrink for protection and insulation

Installation Guide for This ExpressLRS Receiver

Installing this HGLRC dual receiver is straightforward. Follow these steps for a successful setup:

1. Mount the receiver in your drone frame away from carbon fiber and power wires to avoid interference.
2. Position the two antennas at a 90-degree angle to each other for optimal diversity performance.

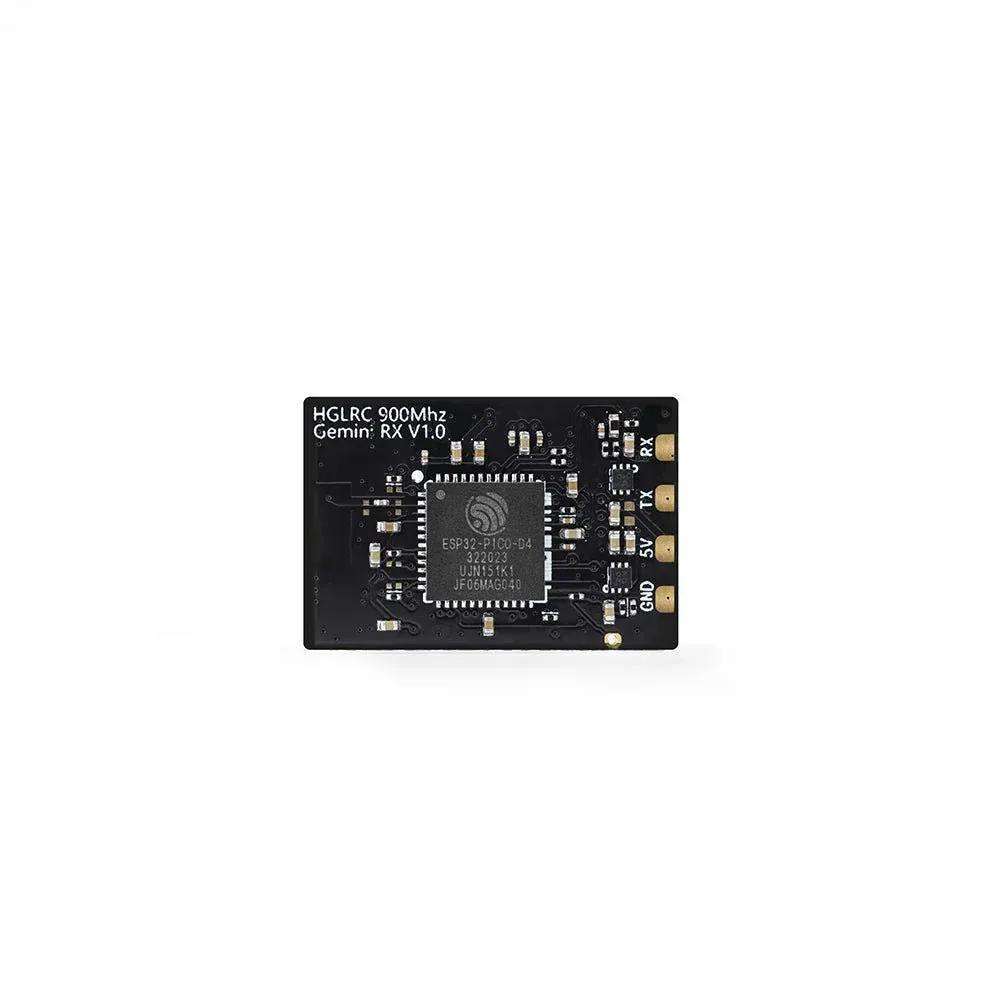

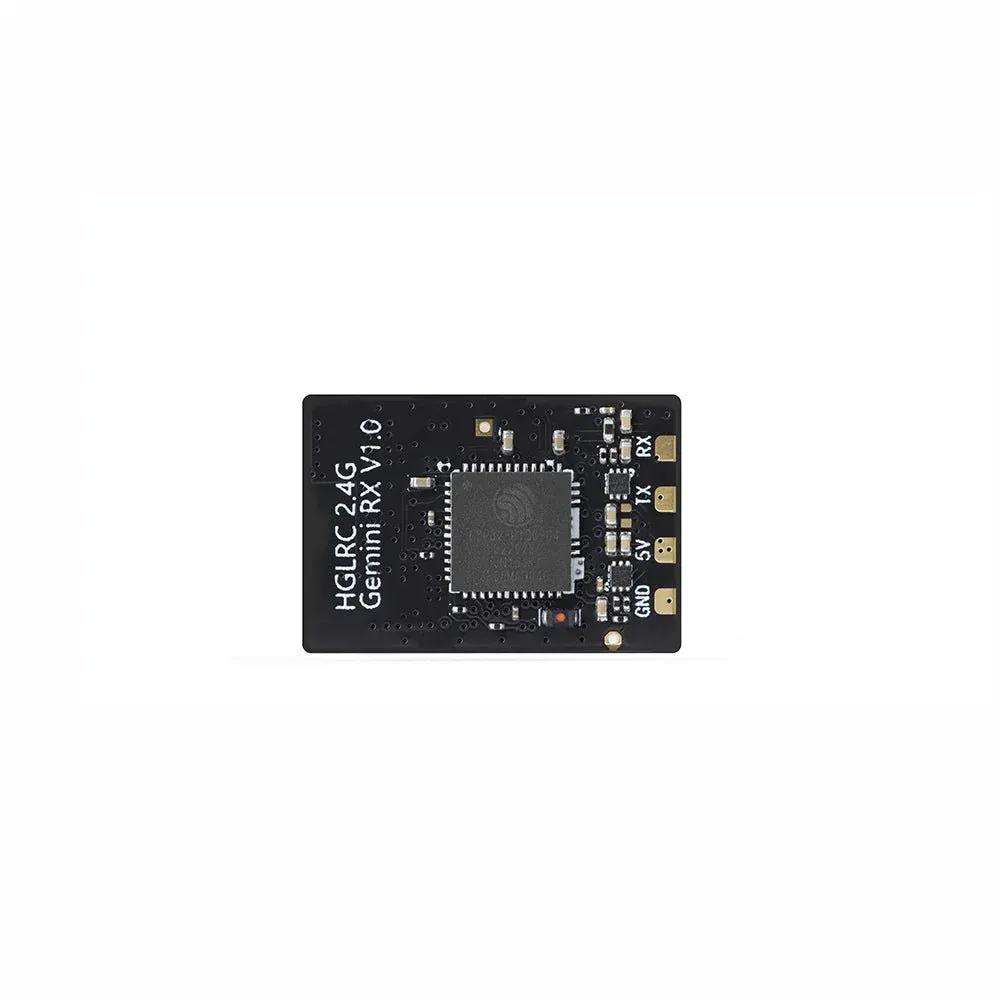

3. Connect the receiver to an available UART on your flight controller (RX to TX, TX to RX).
4. Power the receiver using 5V from your flight controller’s BEC.
5. Configure the UART as “Serial RX” in the Ports tab of Betaflight Configurator.
6. Set the Receiver mode to “Serial based receiver” and select “ExpressLRS” as the protocol.
7. Bind the receiver to your ExpressLRS transmitter by entering WiFi mode or using the bind button.

Frequently Asked Questions (FAQ)

What is the HGLRC ELRS Gemini RX 2.4G?

This is a dual receiver designed specifically for ExpressLRS systems, offering improved signal stability, true diversity, and long-range performance for FPV drones.

Is this receiver suitable for long-range drones?

Yes, this HGLRC dual receiver is specifically designed for long-range and high-performance drone applications. Its dual antenna diversity and dual RF chip design ensure reliable signal even at extreme distances.

Does this receiver support WiFi firmware updates?

Yes, the receiver supports firmware upgrades via WiFi. Simply power the unit, connect to its WiFi network, and upload the latest ExpressLRS firmware through your web browser.

What is true diversity on this receiver?

True diversity uses two antennas and two independent receiver circuits to ensure the best possible signal reception. This HGLRC unit continuously compares signal quality from both paths and selects the stronger one, eliminating dead zones and dropouts.

Can I use this receiver with any ExpressLRS transmitter?

Yes, this dual receiver is compatible with all ExpressLRS 2.4GHz transmitters and modules, including those from Radiomaster, BetaFPV, HappyModel, and others.

What is the maximum range of this receiver?

Under optimal conditions with proper antenna placement, this HGLRC receiver can achieve ranges exceeding 10-15 kilometers. Actual range depends on your transmitter power, antenna quality, and environmental factors.

Conclusion

The HGLRC ELRS Gemini RX 2.4G is a powerful and reliable receiver designed for modern FPV and UAV systems. It offers advanced true diversity technology, dual RF chips, TCXO stability, and easy integration, making it an excellent choice for drone enthusiasts and professionals alike. Whether you are building a freestyle basher, a long-range cruiser, or a professional inspection drone, this receiver delivers the signal confidence you need to fly without worry.

Upgrade your ExpressLRS setup today with this advanced dual receiver and experience the difference that true diversity makes. For more information on compatible components, check out our complete FPV drone collection at Mall of Aviation.
