RHCP vs LHCP: The Complete Guide to Circular Polarization in FPV Systems
In FPV drone systems, antenna polarization is one of the most critical yet frequently misunderstood aspects of radio frequency signal transmission. The debate of RHCP vs LHCP comes up in every FPV community, and understanding the difference can mean the difference between crystal-clear video and frustrating signal breakup. Whether you are a racing pilot needing reliable video through tight courses or a long-range enthusiast pushing distance limits, understanding the nuances of RHCP vs LHCP is essential. In this comprehensive guide from Mall of Aviation, we will explain the fundamental differences between RHCP vs LHCP, why circular polarization dominates FPV applications, how reflections affect your signal (including the truth about parabolic dishes), and advanced setup tips for optimal performance.
In This Guide
Understanding Polarization Basics: Linear vs Circular
All radio waves have polarization—the orientation of their electric field oscillation. Understanding this concept is the foundation of mastering the RHCP vs LHCP decision for your FPV video link.
Linear Polarization
With linear polarization, the electric field oscillates in a single plane—either vertical or horizontal. Common examples include dipole antennas and Moxon antennas. Linear polarization has a simple design and works well for control links like ExpressLRS radio communication system. However, it has a significant disadvantage: it is highly sensitive to antenna orientation changes. If your drone rolls or pitches, the signal strength and control response can drop dramatically. This is why when considering RHCP vs LHCP, circular polarization almost always wins for video transmission.
Circular Polarization

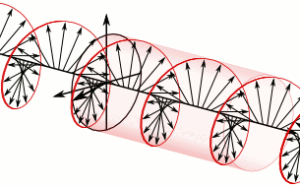

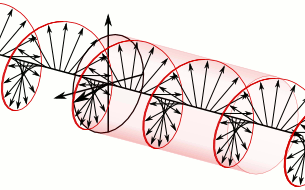

In circular polarization, the electric field rotates as the wave propagates. There are two types that create the RHCP vs LHCP distinction:
- RHCP (Right-Hand Circular Polarization): The electric field rotates clockwise as seen from the source.
- LHCP (Left-Hand Circular Polarization): The electric field rotates counter-clockwise as seen from the source.
Circular polarization maintains signal integrity during drone maneuvers because the rotation direction remains consistent regardless of how the drone is oriented. This is why FPV antenna systems overwhelmingly use circular polarization, and why the RHCP vs LHCP choice becomes important for compatibility.
Why FPV Systems Favor Circular Polarization
Circular polarization offers three critical advantages for FPV pilots. Understanding these benefits helps clarify why the RHCP vs LHCP discussion matters at all:
- Orientation Independence: Drones constantly change attitude—rolling, pitching, and yawing. Circular polarization maintains signal strength regardless of these movements. A linear antenna would experience deep fades as the drone rotates. Whether you choose RHCP or LHCP, you get this benefit.
- Multipath Rejection: When signals bounce off the ground, buildings, or trees, circular polarization naturally filters out reflected signals. This is because reflections reverse the polarization direction, as we will explain shortly. This works the same for both sides of the RHCP vs LHCP choice.
- Interference Reduction: Circular polarization allows multiple pilots to fly simultaneously with less crosstalk, especially when alternating between RHCP and LHCP. This is where the RHCP vs LHCP decision becomes a strategic advantage in group flying scenarios.
RHCP vs LHCP: Key Differences
Here is the most important fact to understand about RHCP vs LHCP: There is no performance difference between RHCP and LHCP when used correctly. They are functionally identical—they are mirror images of each other. The only thing that matters in the RHCP vs LHCP equation is consistency.
| Characteristic | RHCP | LHCP |
|---|---|---|
| Rotation Direction | Clockwise | Counter-clockwise |
| Common Applications | Standard FPV, GPS | Alternate channel systems |
| After Reflection | Becomes LHCP | Becomes RHCP |
| Compatibility Rule | Must match RX and TX | |
Critical Rule: Your video transmitter and receiver must use the same polarization type (both RHCP or both LHCP) for optimal performance. Mixing RHCP vs LHCP results in a signal loss of approximately 20 to 30 dB—essentially no usable video. This is the most important takeaway when deciding between RHCP vs LHCP.
The RHCP vs LHCP choice is often made based on what other pilots in your area use. If your local flying group primarily uses RHCP, it makes sense to also use RHCP for compatibility. If you fly alone, you can choose either—just be consistent across your entire video system.
The Reflection Paradox: How Surfaces Affect Polarization
This is where many pilots get confused—especially regarding parabolic dishes. The fundamental principle is simple but critical to understanding RHCP vs LHCP in real-world environments:
All reflections reverse circular polarization. When a signal bounces off a surface:
- RHCP becomes LHCP when reflected
- LHCP becomes RHCP when reflected
This occurs because the reflection inverts the wave’s rotation direction. For flat surface reflections—like ground, buildings, or trees—the direct signal maintains its original polarization, while the reflected signal reverses. Because your receiver is matched to the direct signal’s polarization, it automatically rejects the reversed reflected signals. This multipath rejection behavior is similar to how signal issues are handled in analog FPV systems, making circular polarization highly effective in FPV regardless of your RHCP vs LHCP choice.
This reflection property is why circular polarization outperforms linear polarization in urban or obstacle-rich environments. The RHCP vs LHCP choice doesn’t affect this benefit—both provide excellent multipath rejection.
Parabolic Dish Truth: The Critical Setup Rule
Despite common misconceptions, parabolic dishes DO reverse polarization just like flat surfaces. The curved shape focuses the signal but does not prevent polarization reversal. This has a major implication for your RHCP vs LHCP decision when using a dish.
When using a parabolic dish reflector:
- The dish focuses the signal onto your receiver antenna.
- The reflection off the dish reverses the polarization of the incoming signal.
- Therefore, your receiver antenna must use the opposite polarization of your VTX antenna.
Dish Setup Rule: If your VTX antenna is RHCP, your dish receiver antenna must be LHCP to match the reflected signal. Conversely, if your VTX antenna is LHCP, your dish receiver antenna must be RHCP. This is a critical RHCP vs LHCP consideration for long-range pilots.
This is one of the most overlooked details in long-range FPV setups. Many pilots incorrectly use the same polarization on both ends with a dish, resulting in significant signal loss. Understanding how the RHCP vs LHCP relationship changes with a dish can save you from frustrating range issues.
Antenna Recommendations for Different Applications

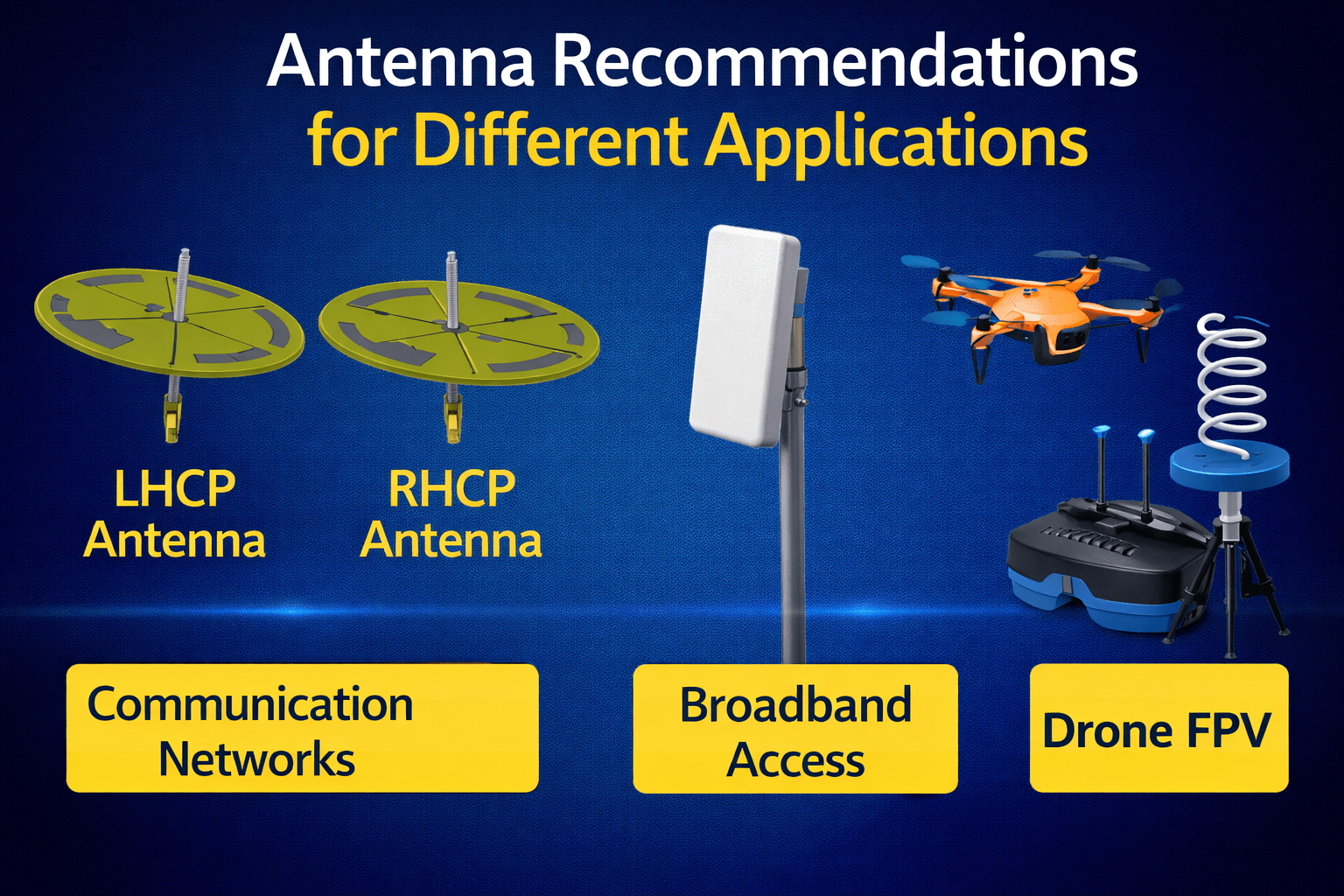

Based on expert guidance, here are antenna recommendations for various FPV scenarios. Remember, antenna quality matters significantly—pay attention to axial ratio and VSWR specifications, regardless of your RHCP vs LHCP preference.
RHCP Solutions (Standard FPV)
-
- high-quality RHCP FPV antenna for stable video signal: A premium omnidirectional antenna with optimized axial ratio for clean signal. Ideal for freestyle and racing where you need consistent coverage in all directions.
- Helical RHCP Antenna: A high-gain directional antenna perfect for long-range applications. With up to 18dBic gain, it provides extreme distance capability for exploratory flights.
LHCP Solutions (Specialized Applications)
- LHCP Crosshair Antenna: Designed to reject RHCP interference, making it excellent for group flying scenarios. Works well with dish reflector systems.
- LHCP Helical Array: A custom ground station solution that pairs with parabolic reflectors. Delivers high gain for weak signal reception in challenging environments.
Linear Antenna Options
- Moxon 2.4GHz (Linear): Highly directional and ideal for control links like ExpressLRS or Crossfire. Not recommended for video transmission due to orientation sensitivity.
Advanced Setup Considerations for RHCP vs LHCP
Group Flying Protocol

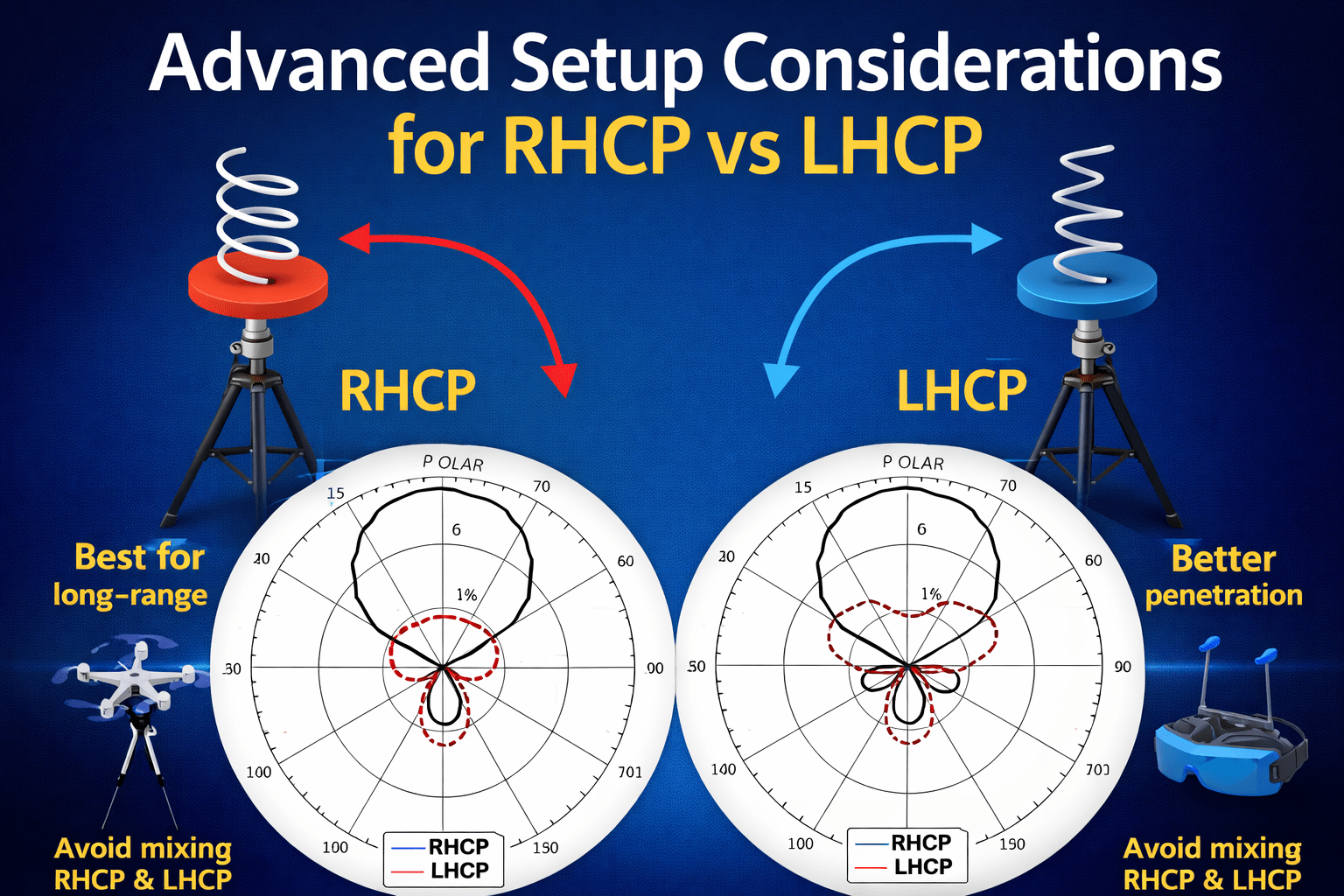

When multiple pilots fly together, you can significantly reduce video interference by alternating polarizations. This is where the RHCP vs LHCP choice becomes a strategic tool. For example:
- Pilot 1: RHCP
- Pilot 2: LHCP
- Pilot 3: RHCP
- Pilot 4: LHCP
This simple scheme reduces crosstalk because RHCP antennas naturally reject LHCP signals and vice versa. When organizing group flights, coordinate the RHCP vs LHCP assignments in advance.
Polarization Purity Matters
Not all RHCP and LHCP antennas are created equal. Key specifications to look for regardless of your RHCP vs LHCP choice:
- Axial Ratio: Measures how pure the circular polarization is. Closer to 0dB is better. A high axial ratio means the antenna is emitting elliptical or nearly linear polarization, reducing the benefits of circular polarization.
- VSWR (Voltage Standing Wave Ratio): Indicates how well the antenna is tuned. Under 1.5:1 is ideal for efficient power transfer.
Reputable manufacturers test all antennas for optimal performance in these metrics. When comparing RHCP vs LHCP antennas from different brands, pay attention to these specifications rather than just the polarization type.
Dual-Polarization Systems
Some advanced systems use simultaneous RHCP and LHCP reception with diversity combining. This requires specialized receivers and antennas but offers the ultimate in signal robustness by capturing both polarization types and selecting the strongest signal path. In these systems, the RHCP vs LHCP decision becomes moot—the system uses both.
Troubleshooting Common Antenna Issues Related to RHCP vs LHCP
Problem: Video breakup when flying behind obstacles
Solution: Ensure your VTX and receiver antennas have matched polarization. Double-check your RHCP vs LHCP compatibility. Consider switching to higher-gain antennas like a helical or patch for directional focus.
Problem: Interference from other pilots
Solution: Coordinate with your group to alternate between RHCP and LHCP. This simple change dramatically reduces crosstalk and is the most effective use of the RHCP vs LHCP distinction in group settings.
Problem: Weak signal with parabolic dish system
Solution: Verify you are using opposite polarization on the receiver. With an RHCP VTX, your dish receiver antenna must be LHCP. This is the most common mistake with dish setups and a critical RHCP vs LHCP consideration.
Problem: Inconsistent signal when flying close to the ground
Solution: Ground reflections are a major source of multipath interference. Ensure your antennas have good axial ratio to properly reject reflected signals. This applies equally to both sides of the RHCP vs LHCP choice.
Problem: Video signal drops when another pilot arms their drone
Solution: You are likely on the same polarization. Switch to the opposite polarization in the RHCP vs LHCP spectrum to reduce interference.
Frequently Asked Questions About RHCP vs LHCP
1. Which is better: RHCP or LHCP?
Neither is inherently better. They are mirror images of each other and perform identically. The only thing that matters in the RHCP vs LHCP decision is consistency—your VTX and receiver must match.
2. Can I mix RHCP and LHCP antennas?
No. Mixing RHCP vs LHCP results in a signal loss of approximately 20 to 30 dB, which will make your video unusable beyond very short range. Always match your polarization.
3. How do I know if my antenna is RHCP or LHCP?
Most manufacturers clearly label their antennas. For circularly polarized antennas without markings, you can often tell by the direction of the helix or by looking at the element shape.
4. Does a parabolic dish reverse polarization?
Yes. All reflections reverse circular polarization. Your receiver must use the opposite polarization of your VTX antenna in such setups.
5. What is axial ratio in FPV antennas?
Axial ratio measures how purely circular the polarization is. A lower value means better performance and improved signal quality.
6. Can I use a linear antenna with circular polarization?
Yes, but you will experience about a 3dB signal loss and reduced performance compared to a fully matched circular setup.
7. Does RHCP vs LHCP affect FPV range?
No. Range depends on antenna quality, gain, and setup—not polarization type.
8. Why is RHCP more common in FPV systems?
RHCP is widely used as an industry standard, making it more compatible with most off-the-shelf FPV equipment.
9. Which FPV antenna is best for long range?
For long-range FPV, high-gain directional antennas like patch or helical antennas are best. Pair them with matching RHCP or LHCP polarization for optimal performance.
10. Should I choose LHCP or RHCP for FPV?
Both perform the same, but RHCP is more commonly used. Choose based on compatibility with your existing FPV gear.
11. What are FPV antennas and how do they work?
FPV antennas transmit and receive radio signals between your drone and goggles. Circular polarization helps reduce interference and signal dropouts.
12. What is an FPV antenna extension cable?
An extension cable allows you to reposition your antenna for better signal reception, especially in long-range or obstructed environments.
13. Which antenna is best for analog FPV goggles?
For analog FPV, a diversity setup with one omni-directional antenna and one directional antenna provides the best performance.
14. What are FPV antenna connector types?
Common connectors include SMA and RP-SMA. Always ensure compatibility between your antenna and device.
15. Can I build a DIY FPV antenna?
Yes, DIY FPV antennas are possible, but require precise measurements and tuning for optimal performance.
