TBS Unify Pro32 DP (MMCX)

TBS Unify Pro32 DP (MMCX) – Professional 3W FPV Transmission System

The TBS Unify Pro32 DP MMCX is engineered for pilots who require dependable high-power analog video transmission in demanding FPV environments. Designed with reduced size and weight in mind, this 3W video transmitter delivers strong RF output while maintaining efficient thermal performance. Its compact structure and optimized heat management eliminate the need for bulky external heatsinks or cooling fans.

Operating across a wide 4990 MHz to 6030 MHz frequency range, the Pro32 DP supports flexible channel selection for racing, freestyle, and long-range FPV applications. The advanced RF filtering system delivers more than 63dB SNR, helping reduce signal noise and improving overall video clarity.

High-Power Output with Intelligent Control

The transmitter offers multiple adjustable output levels ranging from 10mW up to maximum 3W output. This flexibility allows pilots to select lower power for racing environments or maximum power for extended range flights. Configuration is simplified through TBS SmartAudio 2.1, enabling OSD control via Betaflight, TBS Crossfire, Tracer, or Ardupilot systems.

LUA script support further enhances control for CRSF users, making in-field adjustments fast and efficient without physical button access.

Thermal Engineering Without External Heatsink

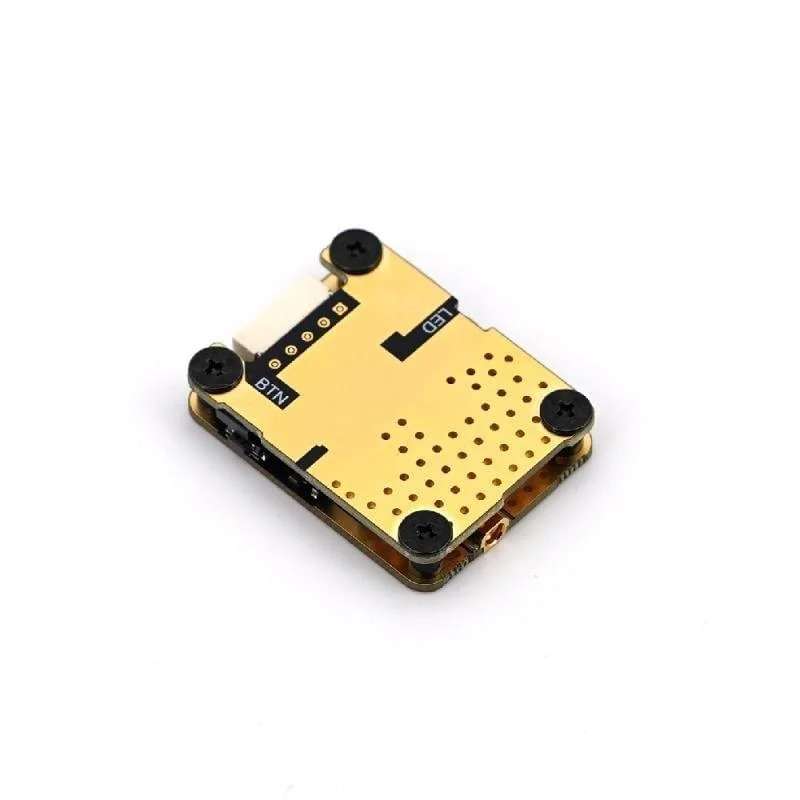

Unlike many high-power transmitters that require external cooling accessories, the TBS Unify Pro32 DP MMCX features optimized heat dissipation built directly into its design. The internal structure distributes heat efficiently across the shielded board surface, improving durability during extended high-power operation.

This approach maintains performance stability even under demanding conditions while keeping overall weight at just 8.7 grams.

MMCX Antenna Interface & Installation

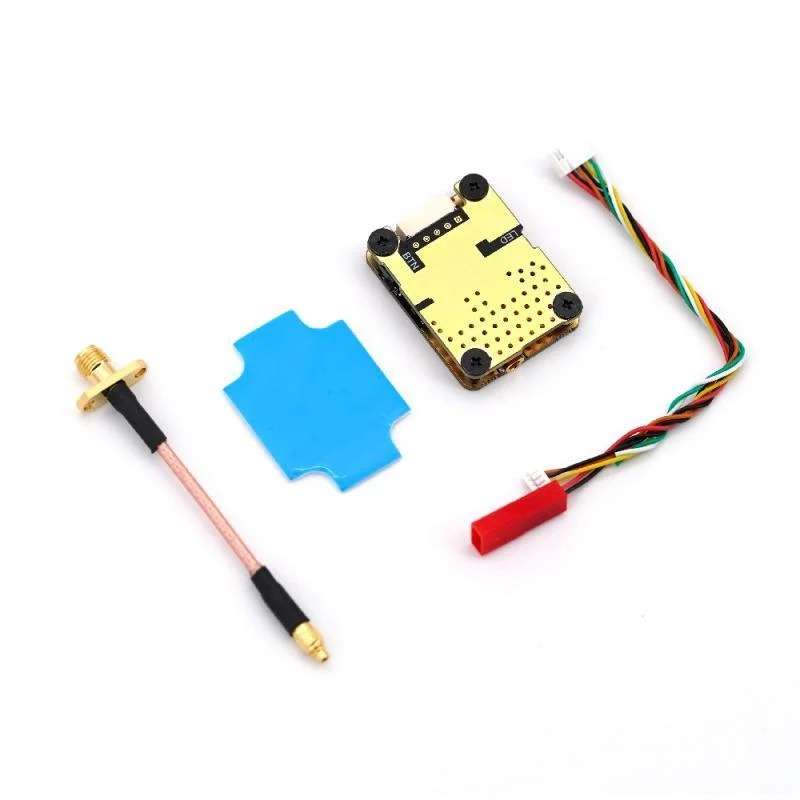

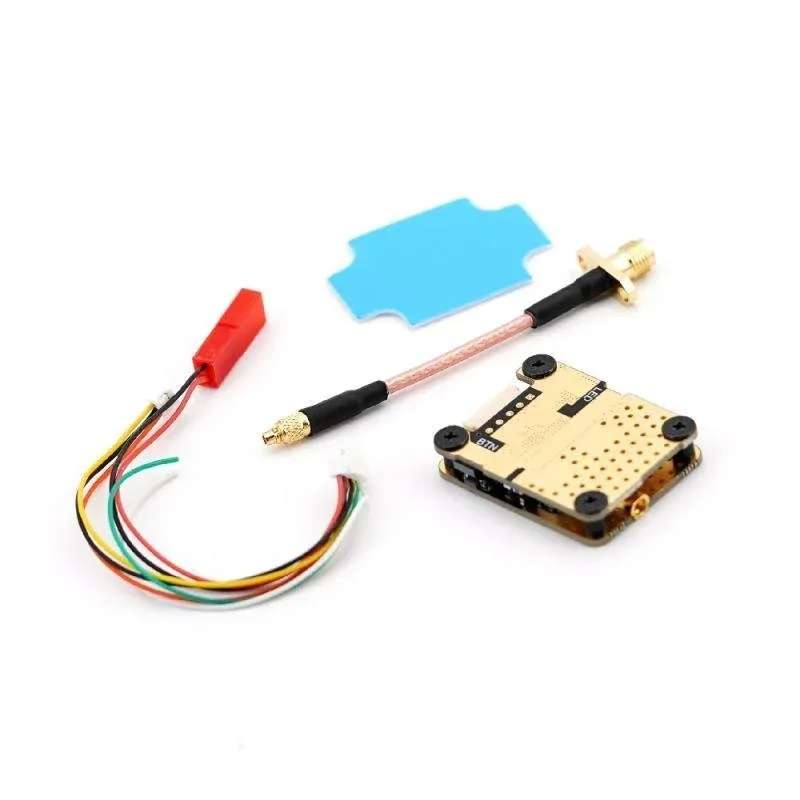

The secure MMCX connector ensures stable antenna attachment while allowing flexible antenna positioning using the included MMCX to SMA pigtail. Proper antenna quality is essential for high-power operation. Operating the unit without a suitable wideband antenna at maximum power may cause damage. Therefore, pairing it with reliable circularly polarized antennas is strongly recommended.

If you are exploring alternative high-power transmitters, you may also consider the SLONWAKE 5.8G 5W Analog VTX or the TX-F2-72 4.9G 5.8G 6G VTX for different channel and power configurations.

Electrical & Compatibility Profile

• Input Voltage: 6V – 25V (2–6S LiPo)
• Frequency Range: 4990 – 6030 MHz
• Output Power Levels: 10mW to 3W
• Video Format: NTSC / PAL
• Video Input Impedance: 75 Ohm
• SNR: >63dB
• Dimensions: 37 x 28 x 10 mm
• Weight: 8.7g

For general technical understanding of 5.8GHz FPV transmission standards, refer to 5.8GHz Frequency Band Overview. This resource explains the RF spectrum commonly used in analog FPV systems.

The TBS Unify Pro32 DP MMCX combines compact size, intelligent configuration, robust RF filtering, and high-power output into a lightweight professional-grade FPV transmitter suitable for competitive pilots and long-range drone builders.
