SLONWAKE 5.8G 5W 48CH analog image transmitter Adjustable power built in microphone

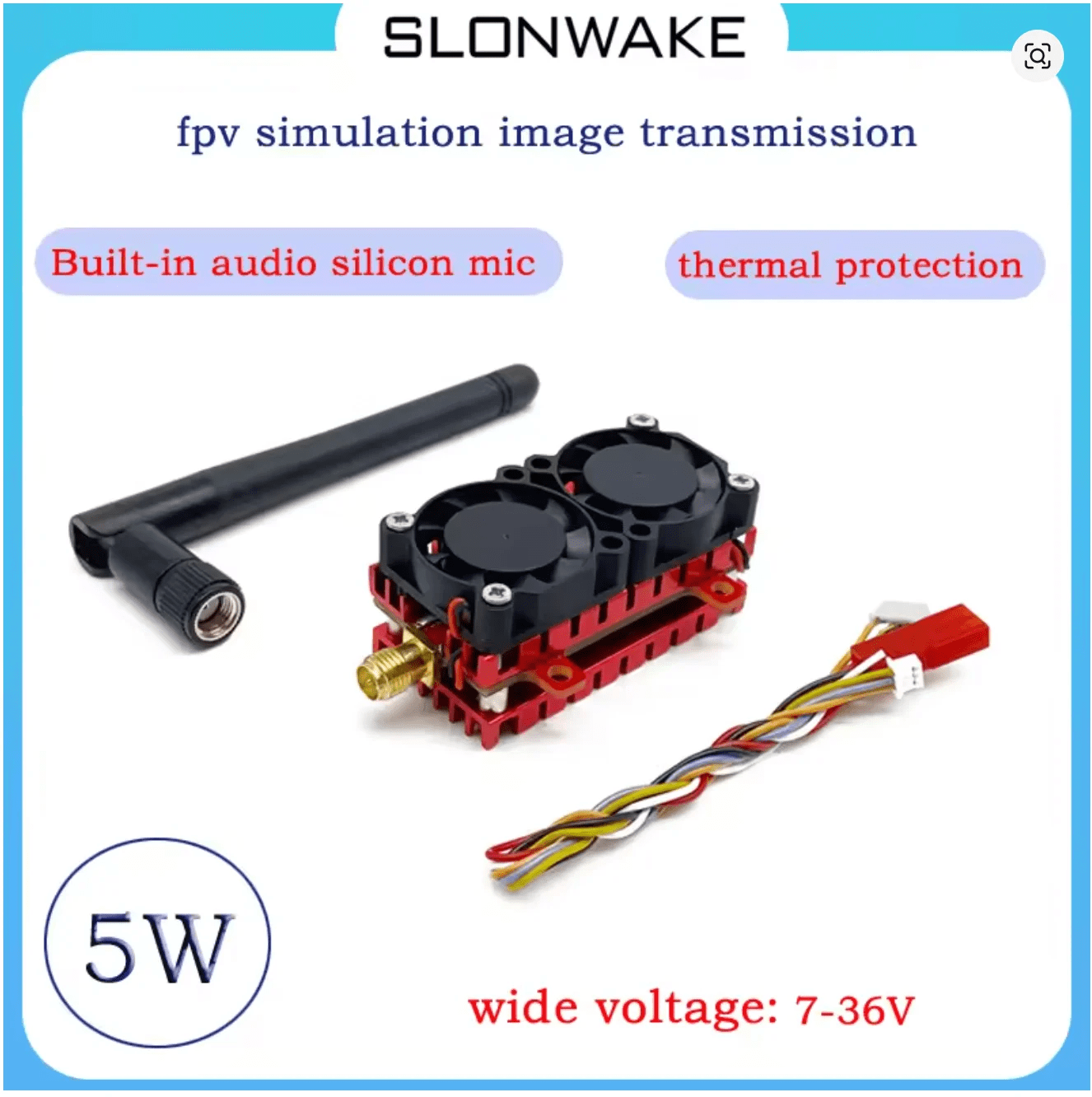

SLONWAKE 5.8G 5W 48CH Analog Image Transmitter – High Power FPV Transmission System

The SLONWAKE 5W VTX is a high-power 5.8GHz analog video transmitter designed for long-range FPV drones and RC aircraft. This 48-channel transmission module supports adjustable output levels up to 5 watts, ensuring stable image transmission and improved signal penetration during demanding flight conditions.

SLONWAKE 5W VTX Adjustable Power Output

This transmitter supports multiple selectable output levels including 200mW, 500mW, 1200mW, and up to 5000mW (5W). Lower settings help reduce interference during short-range flying, while maximum output enhances signal penetration for long-distance missions. The adjustable configuration allows pilots to optimize power consumption and heat management depending on flight requirements.

SLONWAKE 5W VTX 48CH 5.8GHz Compatibility

The 48-channel architecture ensures wide compatibility with most analog FPV goggles and receivers operating on standard 5.8GHz bands. Frequency flexibility minimizes channel conflicts when flying in groups and improves reliability during competitive or professional FPV operations.

SLONWAKE 5W VTX Built-in Microphone

A built-in microphone enables real-time audio feedback alongside video transmission. This enhances pilot awareness by capturing environmental sound during flight. Audio support adds value for inspection missions and immersive FPV experiences.

Thermal Protection & Active Cooling Design

High-power transmission generates significant heat. The SLONWAKE transmitter incorporates active cooling with dual-fan support to maintain temperature stability during prolonged operation. Efficient airflow helps prevent overheating and ensures consistent RF output performance at higher power levels.

Wide Voltage Input (7–36V)

Supporting a broad 7–36V input range, the transmitter is compatible with 2S to 6S LiPo battery configurations. This flexibility simplifies integration into different drone platforms without requiring additional voltage regulation modules.

Optimized Antenna Pairing

For improved signal strength and long-range performance, pairing the module with a high-gain antenna such as the FPV Drone Mushroom Antenna SMA is recommended. You can also explore additional options in our FPV Video Transmitter(VTX) Collection.

Technical Specifications

• • Frequency: 5.8GHz
  • Channels: 48CH
  • Output Power: 200mW / 500mW / 1200mW / 5000mW
  • Audio: Built-in Microphone

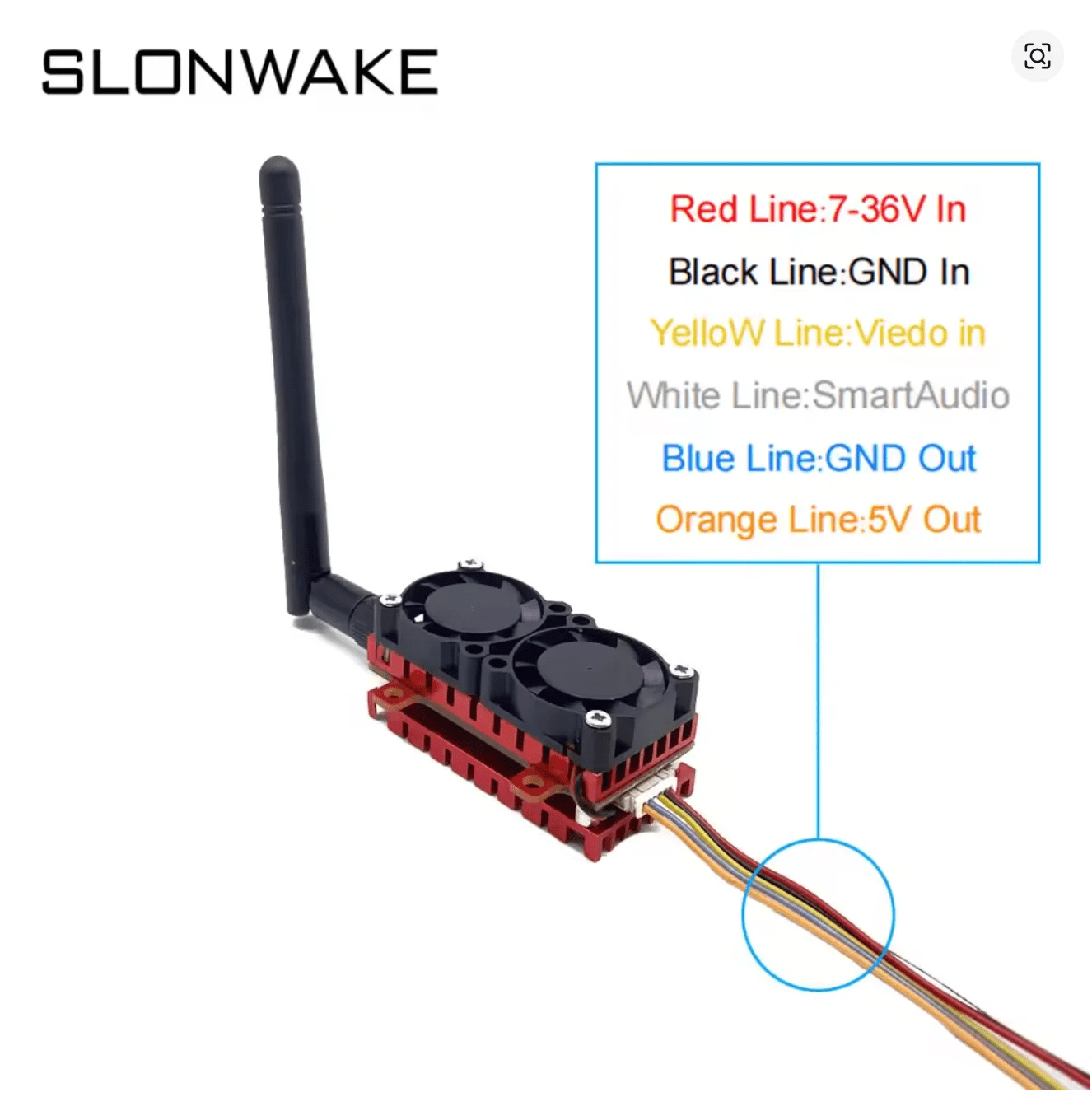

  • Input Voltage: 7–36V (2–6S LiPo)

• Connector: RP-SMA Female
• Application: FPV Drone / RC Aircraft

For additional technical background on 5.8GHz ISM band transmission, refer to ISM Radio Band Overview , which explains how the 5.8GHz frequency is used in wireless communication systems including FPV transmission.

The SLONWAKE 5.8G 5W 48CH Analog Image Transmitter provides high-output performance, adjustable flexibility, and thermal stability in one compact module. It is an ideal solution for pilots seeking dependable long-range analog FPV transmission.
