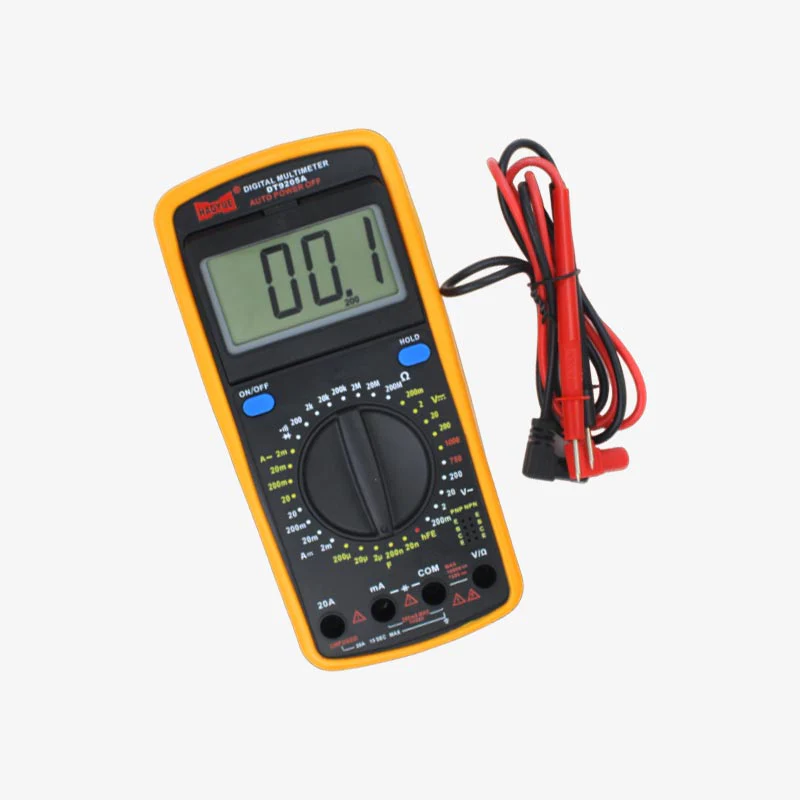

Digital Multimeter

Digital Multimeter for Accurate Electrical Testing and Measurement

A digital multimeter is an essential tool for measuring electrical parameters such as voltage, current, and resistance with high accuracy. This versatile instrument is widely used by electricians, engineers, hobbyists, and DIY enthusiasts for troubleshooting electrical circuits, testing electronic components, and diagnosing system failures. Whether you are a professional working on industrial equipment or a beginner learning electronics, a reliable measuring device is indispensable for safe and efficient work.

This precision instrument features a clear LCD display that provides easy-to-read measurements, allowing users to quickly analyze electrical values without guesswork. Its compact and portable design makes it suitable for both professional workshops and home use. The lightweight construction ensures you can carry it to job sites, repair shops, or educational laboratories without hassle.

What is a Digital Multimeter?

A digital multimeter is a versatile measuring instrument that combines multiple electrical testing functions into one convenient device. It can measure AC and DC voltage, current, resistance, and continuity, making it a must-have tool for electrical diagnostics. Some advanced models also offer additional features such as capacitance testing, frequency measurement, temperature sensing, and diode checking.

The device works by connecting test probes to a circuit and displaying the measured values digitally on an LCD screen. This digital display makes it more accurate and easier to read compared to traditional analog meters, which rely on a moving needle and printed scale. Digital readouts eliminate parallax errors and provide precise measurements down to several decimal places.

Working Principle of a Digital Multimeter

Understanding how this testing tool operates helps users maximize its potential. Inside the device, an analog-to-digital converter (ADC) converts the incoming electrical signal into a digital value displayed on the screen. When you select a measurement mode, the internal circuitry configures itself to read the appropriate electrical parameter. For voltage measurements, high internal resistance ensures minimal circuit loading. For current measurements, low internal resistance allows accurate readings without significant voltage drop. Resistance measurements work by sending a small known current through the component and measuring the resulting voltage drop.

Key Features of This Electrical Testing Tool

• Wide Voltage Range: Measures AC and DC voltage up to 1000V, suitable for household, automotive, and industrial applications
• Multiple Measurement Functions: Supports current testing (both AC and DC), resistance testing, continuity checking, and diode testing
• Clear LCD Display: Large backlit screen with easy-to-read digits, even in low-light conditions
• Compact and Portable Design: Lightweight construction with protective rubber casing for durability
• Battery-Powered Operation: Runs on standard batteries for cordless convenience anywhere you work
• High Accuracy: Provides stable, reliable measurements with minimal drift over time
• Overload Protection: Built-in safety features prevent damage from accidental overvoltage or incorrect settings
• Auto-Ranging Capability: Automatically selects the correct measurement range for effortless operation
• Data Hold Function: Freezes the current reading on the display for easy recording

Practical Applications of This Measuring Instrument

This testing tool is widely used across numerous applications, from professional electrical work to hobbyist electronics projects. Here are some common use cases:

• Testing Electrical Outlets and Switches: Verify proper wiring, check for correct voltage, and ensure safety in residential and commercial buildings
• Checking Batteries and Power Supplies: Measure voltage output to determine if batteries need replacement or power supplies are functioning correctly
• Measuring Resistance in Circuits: Test resistors, potentiometers, and other components to verify they meet specifications
• Diagnosing Electrical Faults: Identify broken wires, faulty connections, or short circuits in complex systems
• Arduino and Electronics Projects: Debug sensor readings, verify power delivery, and test prototype circuits
• Automotive Diagnostics: Check car battery voltage, alternator output, and sensor operation
• Appliance Repair: Test heating elements, motors, and control boards in household appliances
• Continuity Testing: Quickly verify if a circuit path is complete or if there is a break in the wire

For advanced projects, you can also explore related components like electronics modules and sensors to expand your capabilities.

Technical Specifications

• Maximum Voltage: 1000V AC/DC
• Maximum Current: 10A (AC/DC)
• Measurement Types: AC Voltage, DC Voltage, AC Current, DC Current, Resistance, Continuity, Diode Test
• Display: LCD Screen with backlight (3.5 to 4 digits)
• Power Source: 9V Battery (included)
• Weight: 335 grams (approximately 0.74 lbs)
• Dimensions: 26.3 x 17.4 x 6 cm (10.4 x 6.9 x 2.4 inches)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -10°C to 50°C (14°F to 122°F)
• Safety Rating: CAT II or CAT III rated for overvoltage protection

How to Use This Electrical Testing Tool

Using a measuring instrument is straightforward, but following proper procedures ensures safety and accuracy. Here is a step-by-step guide:

1. Insert the test probes into the correct jacks on the device (common, voltage/resistance, and current jacks)
2. Turn the rotary dial to select the desired measurement mode (AC voltage, DC voltage, resistance, etc.)
3. If using a manual-ranging model, select the appropriate range starting with the highest setting
4. Connect the probes to the circuit or component being tested, ensuring proper polarity for DC measurements
5. Read the measured value on the LCD display
6. For continuity testing, listen for the audible beep that indicates a complete circuit
7. After completing measurements, turn off the device to conserve battery life

Always ensure proper probe placement and correct mode selection to avoid incorrect readings or damage to the device. Never attempt to measure voltage in a circuit that exceeds the device’s maximum rating, and always start with the highest range when the expected value is unknown.

Benefits of Using This Precision Measuring Tool

This electrical testing tool provides accurate and reliable measurements, making it an essential instrument for troubleshooting electrical problems. It helps users detect faults quickly, verify proper operation, and ensure safe functioning of electrical systems. The ability to measure multiple parameters with a single device saves time, reduces equipment costs, and simplifies diagnostic procedures.

Its portable design allows easy usage in different environments, making it ideal for both indoor and outdoor applications. Whether you are working in a cramped electrical panel, on a rooftop solar installation, or at a workbench, this compact tool fits where you need it. The durable construction withstands the rigors of daily use, while the clear display ensures you never miss a reading.

Safety Precautions When Using a Digital Multimeter

Safety should always be your top priority when working with electricity. Follow these important guidelines:

• Always inspect the test leads for damage before each use
• Never exceed the maximum voltage or current ratings of the device
• Use the correct measurement mode for what you are testing
• Start with the highest range when measuring unknown values
• Keep fingers behind the finger guards on the test probes
• Do not use the device in wet or damp environments unless it is specifically rated for such conditions
• Remove the probes from the circuit before changing measurement modes
• Replace the battery when the low battery indicator appears to maintain accuracy

Why Choose This Testing Tool from Mall of Aviation

Mall of Aviation offers high-quality testing tools designed for accuracy and durability. Our measuring instrument ensures reliable performance, making it suitable for beginners and professionals alike. We focus on providing dependable products that help users perform electrical testing safely and efficiently. Every device undergoes quality checks to ensure it meets our standards for precision and longevity.

When you purchase from Mall of Aviation, you get more than just a product. You receive access to our knowledgeable support team, comprehensive documentation, and a commitment to customer satisfaction. We stand behind the quality of our testing equipment and are here to help you succeed in your projects.

External Resource

Learn more about how multimeters work from this detailed guide on multimeters, which covers the history, operation principles, and advanced features of these essential diagnostic tools.

Table of Contents

• Introduction to Electrical Testing Tools
• Working Principle and Internal Operation
• Key Features and Specifications
• Practical Applications in Various Fields
• Detailed Technical Specifications
• Step-by-Step Usage Guide
• Safety Precautions and Best Practices
• Benefits of Choosing Mall of Aviation
• Frequently Asked Questions

Frequently Asked Questions (FAQ)

What is a digital multimeter used for?

This versatile instrument is used to measure voltage, current, and resistance in electrical circuits. It can also test continuity, diodes, and in some models, capacitance, frequency, and temperature.

Can beginners use this measuring device?

Yes, this testing tool is beginner-friendly and easy to operate. The clear display, simple controls, and auto-ranging feature make it accessible for users with minimal electrical experience.

Is it safe to use for electrical testing?

Yes, when used properly with correct settings and safety precautions. Always follow the guidelines in the user manual, inspect test leads before use, and never exceed the device’s rated limits.

Does it support both AC and DC measurement?

Yes, this instrument supports both AC and DC voltage and current measurement. Simply select the appropriate mode using the rotary dial for the type of measurement you need.

How do I know if my test leads are damaged?

Inspect the test leads for visible cracks, exposed wires, or bent connectors. You can also perform a continuity test on the leads themselves by touching the probe tips together while the device is set to continuity mode.

What is the difference between auto-ranging and manual-ranging?

Auto-ranging devices automatically select the correct measurement range, making them easier for beginners. Manual-ranging requires you to select the range, but offers more control for experienced users who need specific range settings.

How often should I replace the battery?

Replace the battery when the low battery indicator appears on the display. Using a device with a low battery can lead to inaccurate readings. For occasional use, the battery typically lasts 6-12 months.

Can this device measure AC current?

Yes, this model supports AC current measurement. To measure AC current, you must connect the device in series with the circuit, which requires breaking the circuit path and inserting the meter between the disconnected ends.

Note: Product color may vary depending on availability. All devices undergo rigorous quality testing before shipment to ensure accurate readings and reliable performance.
