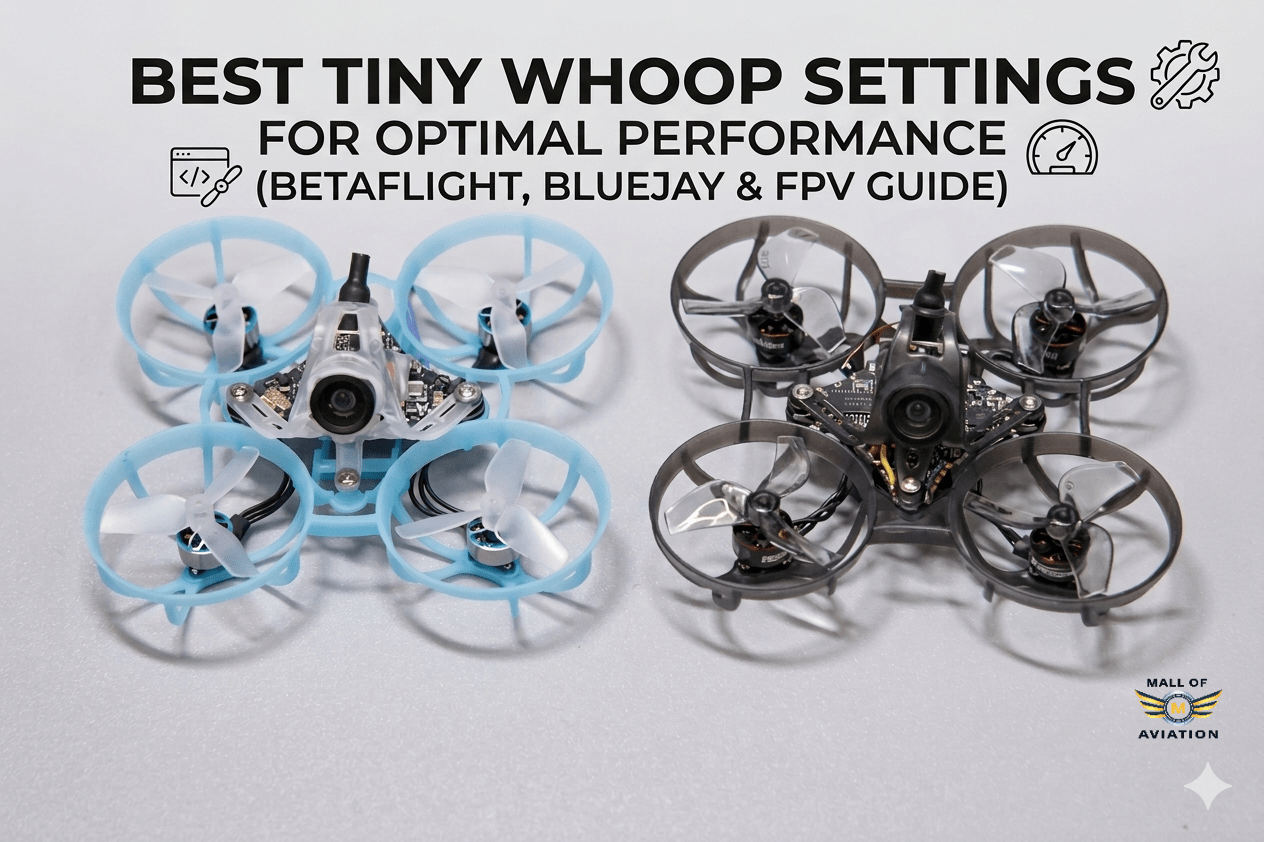

Best Tiny Whoop Settings for Optimal Performance (Betaflight, Bluejay & FPV Guide)

Tiny Whoop FPV drone build and setup — lightweight, fast, and perfect for indoor flying. But to unlock their full potential, finding the best tiny whoop settings is absolutely essential. Out-of-the-box settings are rarely optimized for these micro quads. With the right adjustments, you can achieve smoother control, longer flight time, better responsiveness, and improved crash recovery. In this complete guide by Mall of Aviation, we will walk you through every important setting to optimize your Tiny Whoop. From battery connectors to Betaflight tuning, Bluejay ESC configuration, and radio link setup, these best tiny whoop settings will take your indoor FPV experience to the next level.

Best Tiny Whoop Settings: Battery Connectors

When searching for the best tiny whoop settings, many pilots overlook the battery connector. Yet, upgrading your Tiny Whoop LiPo battery connector is one of the easiest and most effective performance boosts you can make. The stock PH2.0 connector that comes with most Tiny Whoops creates significant resistance, limiting current flow and causing voltage sag.

For the best tiny whoop settings, upgrade to BT2.0 or A30 connectors. These connectors offer:

• Better current flow: Reduced resistance means more power reaches your FPV drone motors when you need it.
• Less voltage sag: Your battery voltage stays higher throughout the flight, preventing early low-voltage cutoffs.
• Longer flight time: More efficient power transfer translates to 30 to 60 seconds of additional flight time per battery.

Best Tiny Whoop Settings: FPV System Setup

Your FPV camera and video system is critical for indoor flying. Part of achieving the best tiny whoop settings involves optimizing your video link for indoor environments where walls, furniture, and other obstacles can cause interference.

VTX Power Settings

For indoor flying, use 25mW FPV video transmitter (VTX) power. Higher power settings (like 200mW or 400mW) can actually cause more multipath interference indoors as signals bounce off walls. The best tiny whoop settings for indoor VTX are:

• Power: 25mW
• Channel: Select a clean channel (Raceband 1-8 is recommended)
• Avoid WiFi interference: Use channels outside typical home WiFi ranges (like Raceband 5-8)

Antenna Setup

For the best tiny whoop settings regarding antennas:

• Use stubby antennas that are lightweight and less likely to get caught on obstacles.
• Position the antenna at 90 degrees to the frame for better signal coverage during turns and flips.
• RHCP (Right-Hand Circular Polarization) is recommended for most FPV setups, but ensure your VTX and goggles match.

Best Tiny Whoop Settings: Radio Link Setup (ELRS)

ExpressLRS (ELRS) has become the standard for Tiny Whoop radio links. To achieve the best tiny whoop settings for your radio link:

• Power: Set to 10–25mW. Higher power is unnecessary for indoor flying and only drains your battery faster.
• Packet Rate: 250Hz offers the best balance between responsiveness and reliability. 500Hz can be used for racing, but 250Hz is the sweet spot for the best tiny whoop settings.
• Consistency: Keep your packet rate consistent across all your Tiny Whoops so your muscle memory remains intact when switching drones.

Best Tiny Whoop Settings: Bluejay ESC Configuration

Bluejay ESC firmware is a game-changer for Tiny Whoops. It offers better performance, smoother throttle response, and improved efficiency compared to stock BLHeli_S. For the best tiny whoop settings, flashing Bluejay is highly recommended.

Recommended PWM Frequency

The PWM frequency you choose significantly impacts flight time and responsiveness. Here is how different frequencies affect performance:

Best Tiny Whoop Settings: Props In vs Props Out

One of the most debated topics in Tiny Whoop tuning is whether to use Props In or Props Out configuration. Both setups have their advantages, and the best tiny whoop settings depend on your flying style.

• Props Out: In this configuration, the props spin outward away from the frame. This setup offers better performance, less yaw washout during hard turns, and improved handling in freestyle maneuvers. It also helps keep debris away from the camera.
• Props In: This is the default configuration on most Tiny Whoops. It provides stable, predictable handling and is perfectly adequate for cruising and beginner flying.

To determine the best tiny whoop settings for your props, test both configurations. Many pilots find that Props Out provides a noticeable improvement in handling, especially for more aggressive indoor flying.

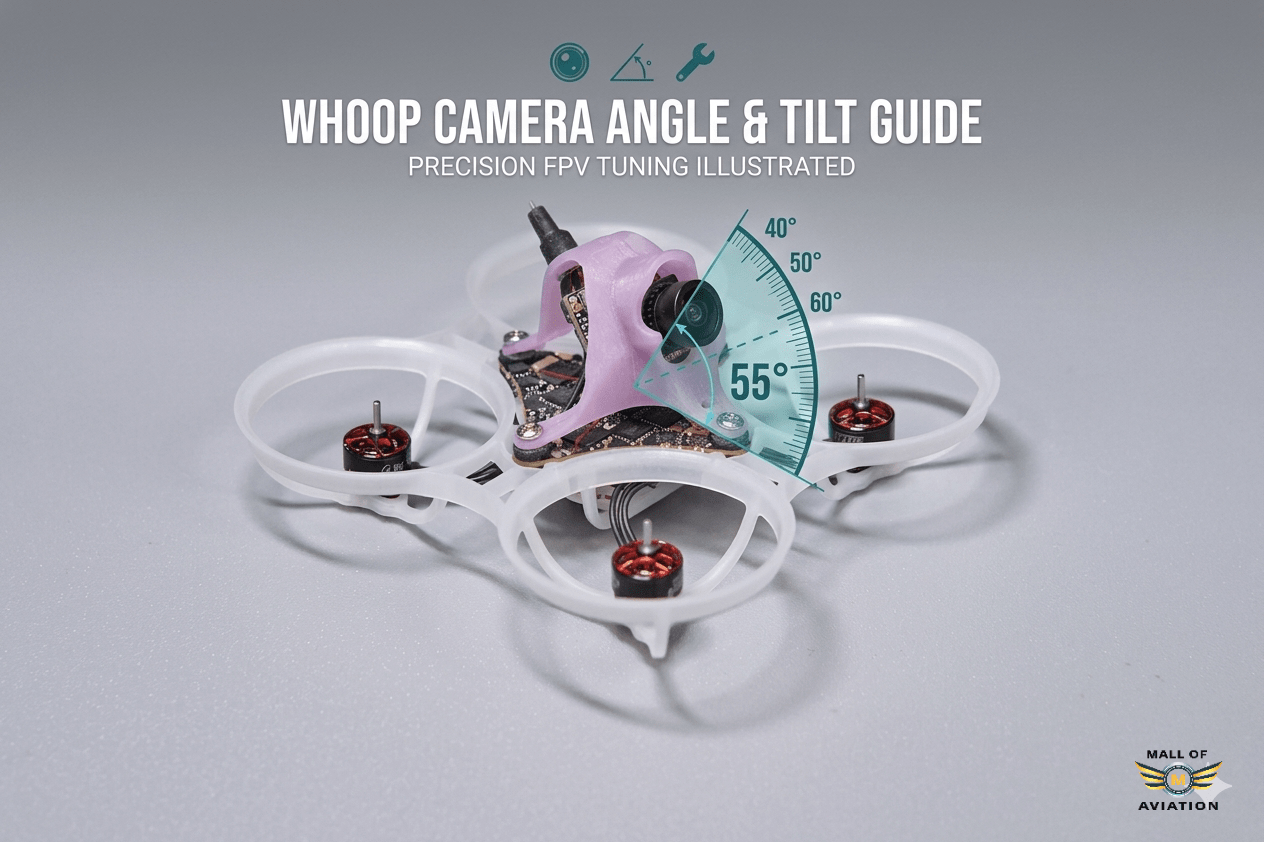

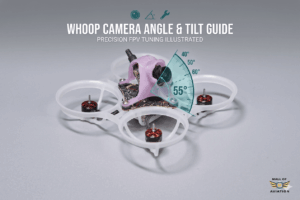

Best Tiny Whoop Settings: Camera Angle

Camera angle is a crucial component of the best tiny whoop settings. The angle you choose dramatically affects how your drone feels in the air.

• Lower camera angle (10-20 degrees): Provides better control for slow, precise indoor flying. You can see more of the ground and obstacles directly in front of you, making it easier to navigate tight spaces. This is the best tiny whoop settings for beginners and technical indoor flying.
• Higher camera angle (25-35 degrees): Allows for faster forward flight and smoother transitions between tricks. However, it makes hovering and slow flying more challenging because you cannot see directly below the drone.

For the best tiny whoop settings in indoor environments, start with a lower camera angle and gradually increase as your skills improve. Most Tiny Whoop pilots find their sweet spot between 15 and 25 degrees.

Best Tiny Whoop Settings: Betaflight Configuration

Betaflight is where the magic happens. The best tiny whoop settings in Betaflight balance stability, responsiveness, and efficiency for indoor flying.

Angle Mode Settings (For Beginners)

If you are still learning, Angle Mode provides auto-leveling assistance. The best tiny whoop settings for Angle Mode are:

• Angle Strength: 75 (higher values make the drone snap back to level faster)
• Angle Limit: 60 degrees (prevents excessive tilt that can lead to crashes indoors)

Acro Mode Rates (For Advanced Pilots)

For pilots flying in Acro mode, the best tiny whoop settings for rates are:

• Roll/Pitch Max Rate: 1100 degrees per second
• Yaw Max Rate: 900 degrees per second
• Expo: 0.55 (softens the center stick feel for smoother small corrections)

These rates provide a good balance between responsiveness and control. They allow you to perform flips and rolls while maintaining precise control for tight indoor flying.

Best Tiny Whoop Settings: Throttle Optimization

Throttle management is critical for indoor flying. The best tiny whoop settings include throttle scaling and expo to make throttle control smoother and more intuitive.

Throttle Scale

Setting throttle scale to 85-90% reduces the maximum throttle output, effectively limiting the drone’s top speed. This is one of the best tiny whoop settings for indoor flying because it makes the drone easier to control in tight spaces without sacrificing low-end responsiveness.

Throttle Expo

Throttle expo softens the throttle response around hover point, making small altitude adjustments much easier. For the best tiny whoop settings, use:

• Throttle Mid: 0.28 (the stick position that corresponds to hover)
• Throttle Expo: 0.6 to 0.7 (how much softening is applied around hover)

Best Tiny Whoop Settings: Other Important Betaflight Parameters

Beyond rates and throttle, several other Betaflight parameters contribute to the best tiny whoop settings:

• VBAT Sag Compensation: 100% (compensates for voltage drop under load, maintaining consistent power throughout the flight)
• Thrust Linearization: 10% (helps make throttle feel more linear across the battery voltage range)
• Motor Idle: 8-10% (prevents motor desyncs and provides consistent low-end response)
• Battery Warning Cell Voltage: 3.3V (gives you time to land safely)
• Minimum Cell Voltage: 3.2V (prevents over-discharging your batteries)

Best Tiny Whoop Settings: Enable Crash Recovery (Must Have)

Tiny Whoops crash often indoors—it is part of the fun. However, disabling crash recovery can lead to frustrating tumble recoveries. The best tiny whoop settings absolutely must include crash recovery enabled.

To enable crash recovery, enter these commands in the Betaflight CLI:

set crash_recovery = ON
set crash_recovery_rate = 150
save

Benefits of Crash Recovery

• Auto stabilization: When the drone detects a crash, it automatically levels itself and allows you to recover quickly.
• Less downtime: You spend more time flying and less time retrieving your drone.
• Better indoor flying: Crash recovery is essential for navigating tight indoor spaces where collisions are inevitable.

For the best tiny whoop settings, crash recovery should always be enabled. It transforms frustrating crashes into quick recoveries, keeping you in the air longer.

Pro Tips for Achieving the Best Tiny Whoop Settings

• Keep rates consistent: Once you find rates you like, use them across all your Tiny Whoops. This builds muscle memory and improves consistency.
• Use low VTX power indoors: 25mW is plenty for indoor flying and reduces multipath interference.
• Always carry spare batteries: Tiny Whoop flight times are short (2-4 minutes). Having multiple batteries ready keeps the fun going.
• Practice in Angle Mode first: Master basic control in Angle Mode before switching to Acro. This builds confidence and reduces crashes.
• Don’t over-tune: The best tiny whoop settings are often simple. Avoid the temptation to change too many parameters at once. Make one adjustment at a time and test.
• Use a smoke stopper: When making hardware changes, always use a smoke stopper to protect your electronics from shorts.

Frequently Asked Questions About Best Tiny Whoop Settings

Final Thoughts: Master Your Tiny Whoop with the Best Settings

Finding the best tiny whoop settings for your drone is a journey, but it is one that pays enormous dividends in flight quality. With the right combination of hardware upgrades (BT2.0 connectors) and software tuning (Bluejay 96KHz, Betaflight rates, crash recovery, and throttle expo), your Tiny Whoop will transform from a toy into a precision indoor flying machine.

Start with the settings outlined in this guide, then make small adjustments based on your personal flying style. Remember, the best tiny whoop settings are the ones that make you feel confident and in control. Take your time, test each change, and enjoy the process of dialing in your perfect setup.

At Mall of Aviation, we are committed to helping FPV pilots build and fly better. Whether you are just starting your Tiny Whoop journey or looking to optimize an existing build, we have the components and expertise to support you. Happy flying
