FPV drone frames are the single most important structural decision you will make when building a quad. Every component in your build — motors, electronic speed controllers, flight controller, video transmitter, camera, and battery — depends on the FPV drone frame for mounting, protection, and physical support. The frame determines how your drone handles crashes, how efficiently it flies, how easy it is to maintain and repair, and how well it can be tuned for your specific flying style.

Choosing the wrong FPV drone frame can lead to persistent vibration problems that resist tuning, structural failures during crashes, poor component compatibility, and a flying experience that never quite feels right regardless of how much time you spend adjusting settings. Choosing the right FPV drone frame, on the other hand, makes everything else in the build easier — components fit cleanly, the drone tunes well, and the finished quad feels like a cohesive, purposeful machine.

In this detailed guide by Mall of Aviation, you will learn exactly how to choose the perfect FPV drone frame based on your flying style and goals, understand the technical factors that separate great FPV drone frames from mediocre ones, and discover our top frame recommendations for every category of pilot in 2026. According to Oscar Liang’s comprehensive FPV drone frame guide, the frame selection process should always start with a clear understanding of your intended flying style — and this guide follows exactly that framework.

Top FPV Drone Frame Recommendations for 2026

Before diving into the technical details of FPV drone frames, here are our top frame recommendations for different categories of pilot. These have been selected based on build quality, component compatibility, community support, spare parts availability, and real-world performance feedback from pilots globally:

• GEPRC Vapor D5/X5: Premium FPV drone frame build quality with excellent DJI O4 Pro compatibility. The standout choice for pilots focused on cinematic content creation and smooth freestyle flying. The Vapor’s clean internal layout makes wiring straightforward, and its robust carbon construction handles crashes well. Best for intermediate to advanced pilots who want a top-tier FPV drone frame platform for serious content creation.
• AxisFlying Manta 5 SE: An excellent budget-friendly FPV drone frame option that does not feel budget in the air. The Manta 5 SE offers a clean, well-thought-out layout with good arm thickness and solid component clearances. Its accessible price point and forgiving flight characteristics make it one of the best beginner FPV drone frames available in 2026. Spare parts are readily available and reasonably priced.
• TBS Source One V5: The open-source benchmark of the FPV drone frame world. The Source One design has been refined through five iterations and is widely considered the best value FPV drone frame available. Its open-source nature means spare parts from multiple manufacturers are available everywhere, keeping long-term ownership costs very low. Excellent community support and documentation. Ideal for budget-conscious builders and anyone who wants a proven, repairable FPV drone frame platform.
• FlyFishRC Volador VX5: A premium FPV drone frame with a particularly clean internal build layout and excellent attention to detail. The Volador stands out for its precise manufacturing tolerances — components fit exactly where they should with minimal gap or flex. Its sleek aesthetic and quality carbon make it a popular choice among pilots who want their FPV drone frame build to look as good as it flies.

Each of these FPV drone frames represents excellent value within its category. Your choice between them should be driven primarily by your flying style, experience level, and budget — all of which we will help you clarify in the sections below.

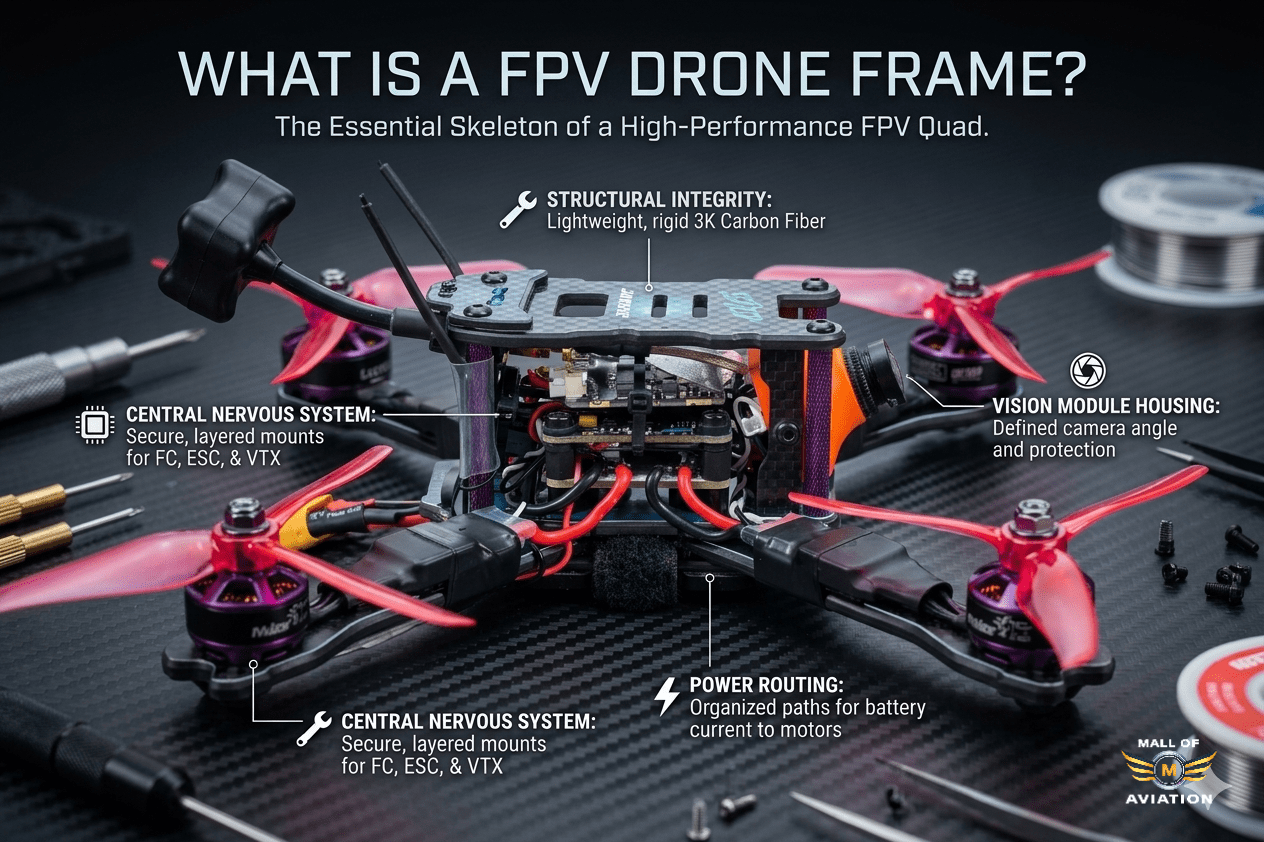

What is an FPV Drone Frame?

An FPV drone frame is the physical skeleton of a quadcopter — the structural foundation to which every other component is attached. At its most basic level, an FPV drone frame is a collection of carbon fiber plates, arms, standoffs, and mounting hardware that holds motors, electronics, cameras, and batteries in the correct positions relative to each other and protects those components from crash damage.

The primary structural elements of a typical FPV drone frame are:

• Arms: The four extending structures that hold the motors at their tips. Arm length and thickness are among the most critical design parameters on any FPV drone frame — they determine motor spacing (which affects propeller size and flight characteristics) and are the most crash-vulnerable part of the frame.
• Bottom plate: The lower main plate that typically mounts the ESC stack and serves as the primary structural base of the FPV drone frame build. On many frames, the bottom plate is the thickest, heaviest structural piece.
• Top plate: The upper plate that sandwiches the electronics stack, provides battery mounting surface, and often carries the camera mount and VTX antenna.
• Standoffs: The vertical aluminum or carbon posts that separate and connect the top and bottom plates of the FPV drone frame, creating the space (the “stack”) where your flight controller, ESC, and other electronics live.
• Camera mount: The forward-facing structure that holds the FPV camera at the pilot’s preferred angle. Many FPV drone frames include adjustable camera tilt mechanisms that allow angle changes without tools.

While these elements are present in virtually every FPV drone frame, how they are designed, dimensioned, and assembled varies enormously between different frames — and those variations have profound effects on how the finished drone flies, crashes, and is maintained.

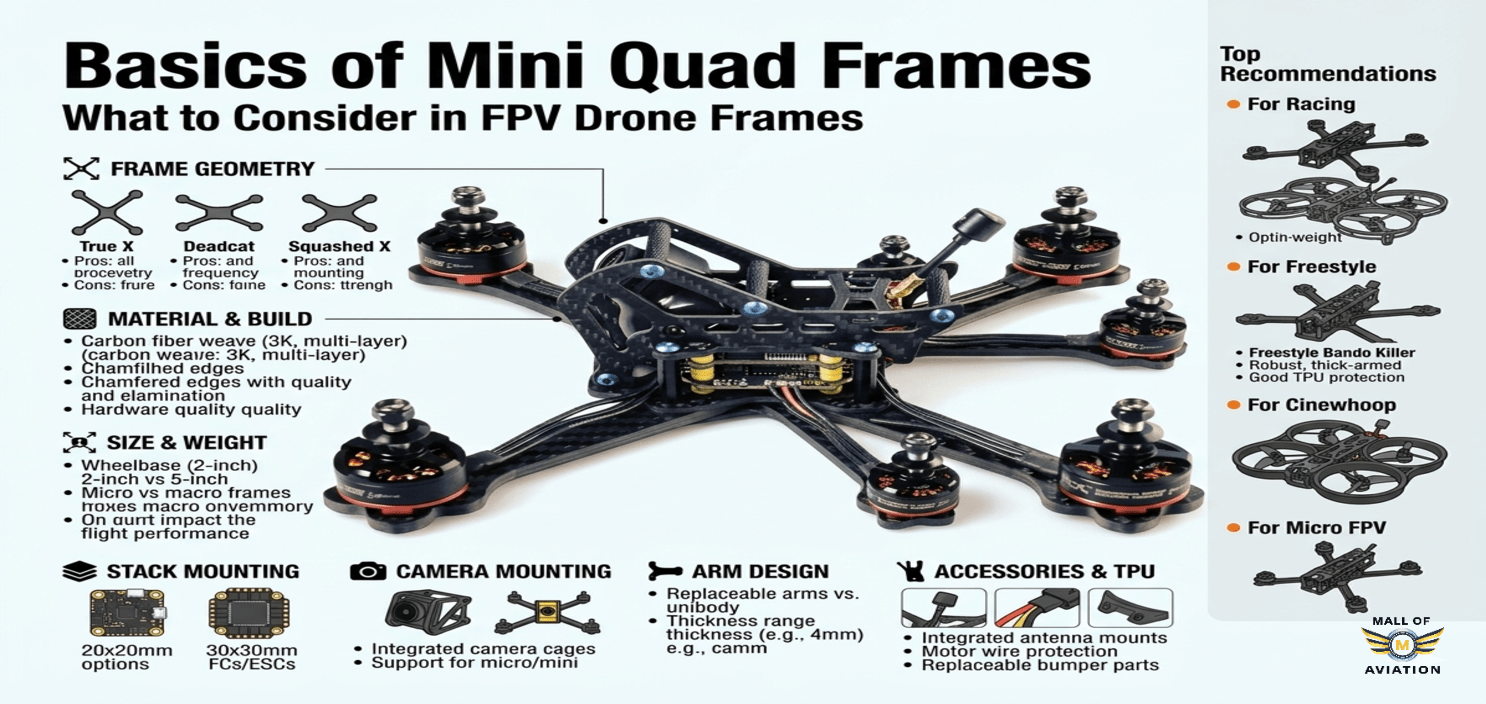

What Makes an Ideal FPV Drone Frame?

If there were a single universally “best” FPV drone frame, the entire market would converge on it. The reason dozens of different FPV drone frame designs coexist and sell successfully is that the ideal frame is genuinely different for different pilots, flying styles, and use cases.

The ideal FPV drone frame for any given pilot strikes the right balance across three fundamental trade-offs:

• Strength vs weight: Thicker carbon, reinforced joints, and additional structural features all increase crash resistance in FPV drone frames — but every gram of additional frame material is a gram less available for battery capacity, which directly translates to reduced flight time. The right balance depends on how aggressively you fly and how often you crash.
• Features vs simplicity: Integrated damping systems, cable routing channels, adjustable camera mounts, and modular arm designs all add convenience and capability to FPV drone frames — but they also add complexity, weight, cost, and potential failure points.
• Performance vs practicality: The lightest, most aerodynamically optimized FPV drone frames are sometimes the least practical to build and repair. The most practical, easy-to-work-on frames sometimes carry weight penalties that affect performance. Your priorities determine where on this spectrum you should land.

Understanding these trade-offs in the context of your own flying style is the foundation of choosing the right FPV drone frame. The sections below will help you evaluate each dimension systematically.

FPV Drone Frame Materials Explained

Carbon fiber dominates the FPV drone frame market so completely that it is worth understanding in detail. Not all carbon fiber used in FPV drone frames is created equal — the manufacturing process, fiber orientation, resin quality, and finishing all affect the final material’s strength, stiffness, and impact resistance.

• 3K carbon fiber: The most common grade used in FPV drone frames. Refers to the number of filaments per fiber bundle (3,000 in this case). Well-balanced between strength and cost. Suitable for the vast majority of FPV drone frame applications.
• High Modulus carbon fiber: Stiffer and lighter than standard 3K, but more brittle under impact. Used in premium FPV drone frames where absolute rigidity is prioritized. Can shatter rather than flex in severe crashes — a trade-off worth understanding before choosing a high-modulus FPV drone frame.
• Arm thickness as a quality indicator: For 5-inch FPV drone frames, arm thickness of 5mm is considered the practical minimum for reasonable crash durability. 6mm arms provide noticeably better crash resistance at a modest weight penalty. Premium FPV drone frames often use 6mm or even 7mm arms on designs specifically targeting durability.

One critical property of carbon fiber that every FPV drone frame builder must understand is its electrical conductivity. Carbon fiber conducts electricity. Any uninsulated solder joint, bare wire, or exposed electronic contact that touches the carbon fiber FPV drone frame can cause a short circuit — potentially destroying expensive electronics. Always use electrical tape, heat shrink, or conformal coating on any electronic component that will contact the carbon frame directly.

FPV Drone Frame Construction Types

Beyond material, the way an FPV drone frame is constructed — particularly how arms connect to the main body — significantly affects repairability, vibration characteristics, and overall durability. There are two primary construction philosophies for FPV drone frames:

Unibody FPV Drone Frame Construction

In a unibody FPV drone frame, the arms and main body are cut from a single continuous piece of carbon fiber plate. This eliminates joints between the arm and body — which are inherently the weakest points in any structure — making the FPV drone frame exceptionally stiff and light. The primary disadvantage is repairability: if an arm breaks, the entire bottom plate must be replaced. For pilots who crash frequently, replacement costs can accumulate quickly with unibody FPV drone frame designs.

Replaceable Arm FPV Drone Frame Construction

FPV drone frames with replaceable arms use separate arm pieces that bolt or clamp to the main body plates. When an arm breaks in a crash — the most common FPV drone frame failure mode — only the damaged arm needs replacement rather than the entire frame assembly. This dramatically reduces the cost of crash repairs and extends the practical lifespan of the FPV drone frame significantly. Replaceable arm designs also typically allow individual arm thickness variations and make the frame easier to transport safely with arms removed.

For most pilots — especially those still developing their flying skills — FPV drone frames with replaceable arms are the more practical and cost-effective choice. The slight weight penalty compared to unibody designs is typically outweighed by the long-term savings in replacement parts.

FPV Drone Frame Size Guide

FPV drone frame size is measured as the diagonal distance between opposing motor centers, expressed in millimeters. This measurement determines the maximum propeller size the FPV drone frame can accommodate, which in turn affects thrust, efficiency, flight time, and flight characteristics.

The 5-inch FPV drone frame category dominates the hobby for a compelling reason: it represents the sweet spot of the entire performance spectrum. Five-inch propellers are large enough to generate significant thrust and efficiency for sustained outdoor flying, yet small enough to keep the drone lightweight and highly agile. The motor and component ecosystem around 5-inch FPV drone frames is larger and more competitive than any other size category — meaning better choice, better pricing, and better community support.

For first-time builders, starting with a 5-inch FPV drone frame is almost always the right decision. The depth of available guidance, the breadth of compatible components, and the sheer number of experienced pilots who have built and flown 5-inch quads means that any problem you encounter has almost certainly been encountered and solved by someone before you.

FPV Drone Frame Configuration Types

FPV drone frame configuration refers to the geometric arrangement of the four arms — specifically where the motors sit relative to each other and the center of the frame. This seemingly simple geometric difference has significant implications for flight characteristics, camera angle capability, and handling feel across different FPV drone frame designs.

True-X FPV Drone Frame Configuration

In a True-X FPV drone frame layout, all four arms are evenly spaced at 90 degrees from each other, and all four motors sit at equal distances from the center of the frame. The result is a perfectly symmetrical platform that handles identically in all directions. This symmetry makes True-X the natural choice for freestyle flying on any FPV drone frame, where the pilot performs maneuvers in all orientations and directions equally. It also simplifies PID tuning, as the symmetrical layout produces consistent, predictable responses. The True-X is the most popular 5-inch FPV drone frame configuration for good reason — it is the most balanced and versatile all-round layout available.

Stretch-X FPV Drone Frame Configuration

Stretch-X FPV drone frames extend the front-to-back motor spacing while keeping the side-to-side spacing the same as a True-X. This asymmetric layout moves the front and rear motors further apart, which increases the pitch axis moment of inertia — making the drone more resistant to pitch changes at high speed. The practical effect is noticeably better straight-line stability and smoother handling at racing speeds. Stretch-X FPV drone frames are popular in racing circles where sustained high-speed forward flight dominates the flying profile.

Deadcat FPV Drone Frame Configuration

The Deadcat FPV drone frame layout moves the front motors significantly outside the camera’s field of view by angling the front arms sharply forward. In a standard True-X FPV drone frame layout, the front propellers are partially visible in the camera frame during certain maneuvers, creating distracting visual interference in footage. The Deadcat configuration eliminates this by pushing the front props clearly outside the camera’s viewing angle. This makes Deadcat FPV drone frames the standard choice for cinematic FPV — any pilot primarily concerned with clean footage rather than racing performance should strongly consider a Deadcat layout.

H Frame FPV Drone Frame Configuration

H FPV drone frames position the arms in a straight line front-to-back on each side, creating a wide, rectangular body shape rather than a square one. This layout provides significantly more interior space for electronics — useful for builds incorporating larger or non-standard components — and offers good crash resistance due to the wide, distributed structure. The trade-off is reduced agility compared to True-X and Stretch-X FPV drone frames, and a higher weight due to the larger plate area.

FPV Drone Frame Durability Factors

Crash durability is one of the most practically important FPV drone frame characteristics — especially for pilots who are still developing their flying skills and crash regularly. Here is what actually determines how well an FPV drone frame survives impacts:

• Carbon fiber quality: Higher-grade carbon with consistent fiber layup and quality resin bonding is both stiffer and tougher than lower-grade material in FPV drone frames. Reputable manufacturers use verified carbon grades — clone FPV drone frames and very cheap alternatives often use lower-quality material that looks identical but performs significantly worse under impact.
• Arm thickness: The arms are the primary crash impact point on virtually every FPV drone frame. For 5-inch freestyle flying, 5mm arms are the practical minimum. Six-millimeter arms provide noticeably better crack resistance without a prohibitive weight penalty. If you crash frequently or fly aggressively, prioritize 6mm arm FPV drone frames.
• Edge finishing: Sharp, unfinished carbon edges concentrate stress at specific points and are more prone to cracking under impact. Quality FPV drone frames feature chamfered or rounded edges that distribute impact stress more evenly across the material, significantly improving crack resistance.
• Joint design: The connection point between arm and body is the most structurally critical location on any multi-piece FPV drone frame. Well-designed joints with sufficient overlap area, clean tolerances, and proper hardware distribute load effectively.
• Hardware quality: FPV drone frame screws, standoffs, and nuts made from quality stainless steel or titanium maintain their structural integrity through many crash cycles. Cheap zinc alloy or low-grade steel hardware strips, bends, or corrodes — compromising FPV drone frame structural integrity over time.

Matching FPV Drone Frame to Your Flying Style

Your flying style is arguably the most important single factor in FPV drone frame selection. A frame that is perfect for one flying style can be actively wrong for another. Here is how to match FPV drone frame choice to what you actually fly:

• Freestyle flying: Prioritize True-X FPV drone frame layout for symmetrical handling, 5mm or 6mm arm thickness for crash resistance, replaceable arms for cost-effective maintenance, and top battery mounting for optimal center-of-gravity balance. Recommended FPV drone frames: TBS Source One V5, GEPRC Vapor X5.
• FPV racing: Prioritize lightweight FPV drone frames above all else, Stretch-X configuration for high-speed stability, and minimal features that add weight without speed benefit. Recommended: lightweight sub-200g FPV drone frames with simple unibody or semi-unibody construction.
• Cinematic flying: Prioritize Deadcat FPV drone frame configuration to keep props out of camera view, moderate weight, and clean internal layout for organized wiring. Recommended FPV drone frames: GEPRC Vapor D5, FlyFishRC Volador VX5.
• Long-range flying: Prioritize larger FPV drone frame size (6-inch or 7-inch) for propeller efficiency, lighter weight to maximize battery-to-airframe ratio, and clean, rigid construction to minimize the vibration that affects long-range video systems.

Battery Mounting Considerations for FPV Drone Frames

Where the battery sits on the FPV drone frame affects center of gravity, crash behavior, and ease of battery swapping — all of which matter more than many first-time builders realize.

• Top mounting: The battery sits on top of the FPV drone frame, above the electronics stack. This is the most common configuration for freestyle quads because it positions the heaviest component near the drone’s center of mass — producing natural, balanced handling in all orientations including inverted.
• Bottom mounting: The battery sits beneath the FPV drone frame, lowering the center of gravity. This configuration improves high-speed straight-line stability and is common in racing frame designs. The trade-off is that bottom-mounted batteries are exposed to ground contact during belly landings.
• Strap system quality: The battery strap on any FPV drone frame is a critical safety component. A failed battery strap during aggressive flying causes the battery to shift mid-flight, dramatically changing the drone’s center of gravity and handling characteristics. Use quality straps with secure fastening mechanisms, and inspect them regularly for wear.

Other Important FPV Drone Frame Considerations

• Stack mounting pattern: Most modern FPV electronics use 30.5mm x 30.5mm or 20mm x 20mm mounting patterns. Verify your chosen FPV drone frame supports the stack size you plan to use — incompatible mounting patterns require adapters that add complexity and potential instability.
• Camera mount compatibility: Camera mount dimensions vary between FPV drone frames. Ensure the mount accommodates your specific camera — particularly the vertical mounting height and tilt adjustment range.
• Spare parts availability: A FPV drone frame with readily available, affordable spare arms and hardware has a dramatically lower total cost of ownership than an equivalent frame whose replacement parts are difficult to source. The TBS Source One’s dominance in this area is a significant practical advantage that compounds over many flying sessions and crashes.
• Weight: For 5-inch FPV drone frames, a typical weight range is 70–120 grams without hardware. Lighter frames leave more of the all-up weight budget for battery capacity — directly improving flight time. The 90–110 gram range represents a good balance for most freestyle applications.
• Frame rigidity and resonance: A rigid FPV drone frame transmits vibrations efficiently from motors to the flight controller’s gyroscope — which is important for clean PID control. Flexible FPV drone frames or those with loose joints introduce resonance frequencies that manifest as oscillations in flight and can make tuning very difficult.

The Evolution of FPV Drone Frames

Understanding where FPV drone frames come from helps you appreciate why modern designs are the way they are — and what design choices represent genuine engineering progress versus marketing novelty.

The earliest FPV drone frames were repurposed or adapted from aerial photography platforms — heavy, wide aluminum and fiberglass H-frames designed to carry gimbaled cameras with maximum stability. These FPV drone frames weighed several hundred grams and were optimized for mechanical stability rather than agility. The idea of using them for fast, acrobatic flying would have seemed absurd.

As the FPV hobby evolved in the early 2010s, pilots began prioritizing agility and speed over camera stability. FPV drone frames shrank dramatically, aluminum was replaced by carbon fiber, and the True-X layout emerged as the dominant configuration for balanced performance. The introduction of Acro mode flying — where pilots control the drone’s rotation rates directly rather than its attitude — drove FPV drone frames toward ever-lighter, more rigid designs.

The mid-2010s saw the standardization of the 5-inch FPV drone frame class and the emergence of iconic frames like the Wizard X220 and the original Source One that defined the modern FPV drone frame template. Since then, evolution has been incremental — better manufacturing quality, cleaner internal layouts, improved arm geometries, and better integration with modern digital video systems — rather than revolutionary.

Today’s best FPV drone frames represent the accumulated refinement of a decade of community-driven iteration. The design choices that have survived — True-X layout, replaceable arms, 5–6mm arm thickness, 30.5mm stack mounting — have survived because they genuinely work well across a wide range of conditions and use cases. A comprehensive history of this evolution can be found on the RC Groups FPV frame history thread.

Should You Buy Clone FPV Drone Frames?

Clone FPV drone frames — unauthorized copies of original designs sold at a fraction of the original price — are a permanent feature of the FPV market and a perennial source of debate in the community. Understanding the genuine trade-offs helps you make an informed decision about whether clone FPV drone frames are right for your situation.

The appeal is obvious: a clone of a popular premium FPV drone frame at 20–30% of the original price sounds like excellent value, especially for a beginner who will inevitably crash frequently. And in truth, some clone FPV drone frames are mechanically serviceable for casual flying — they look identical to the originals and hold components in the right positions.

However, the differences in clone FPV drone frames matter more than they appear on the surface. Clone FPV drone frames consistently use lower-grade carbon fiber with inconsistent fiber orientation and lower-quality resin — which looks identical to premium carbon in photos but shatters rather than flexes under crash impact. Hardware tolerances are typically looser, resulting in FPV drone frames that flex more than they should and develop rattle and play after modest use. And crucially, buying clone FPV drone frames actively reduces the revenue available to the original designers — the small independent companies and designers who drive innovation in the FPV frame space.

Our recommendation: for beginners on a tight budget, the TBS Source One V5 is open-source and available from authorized manufacturers at very competitive prices — there is no need to resort to clone FPV drone frames to access an affordable, quality platform. For any other category, invest in original designs from reputable manufacturers. The total cost of ownership, including replacement parts after crashes, typically makes quality original FPV drone frames more economical than cheap clones over a full flying season. This is also supported by Betaflight’s official build guide, which specifically recommends using quality frames from reputable manufacturers to avoid tuning complications caused by poor carbon quality and loose tolerances.
