The SpeedyBee F405 V5: An ECE Engineer’s Honest Take

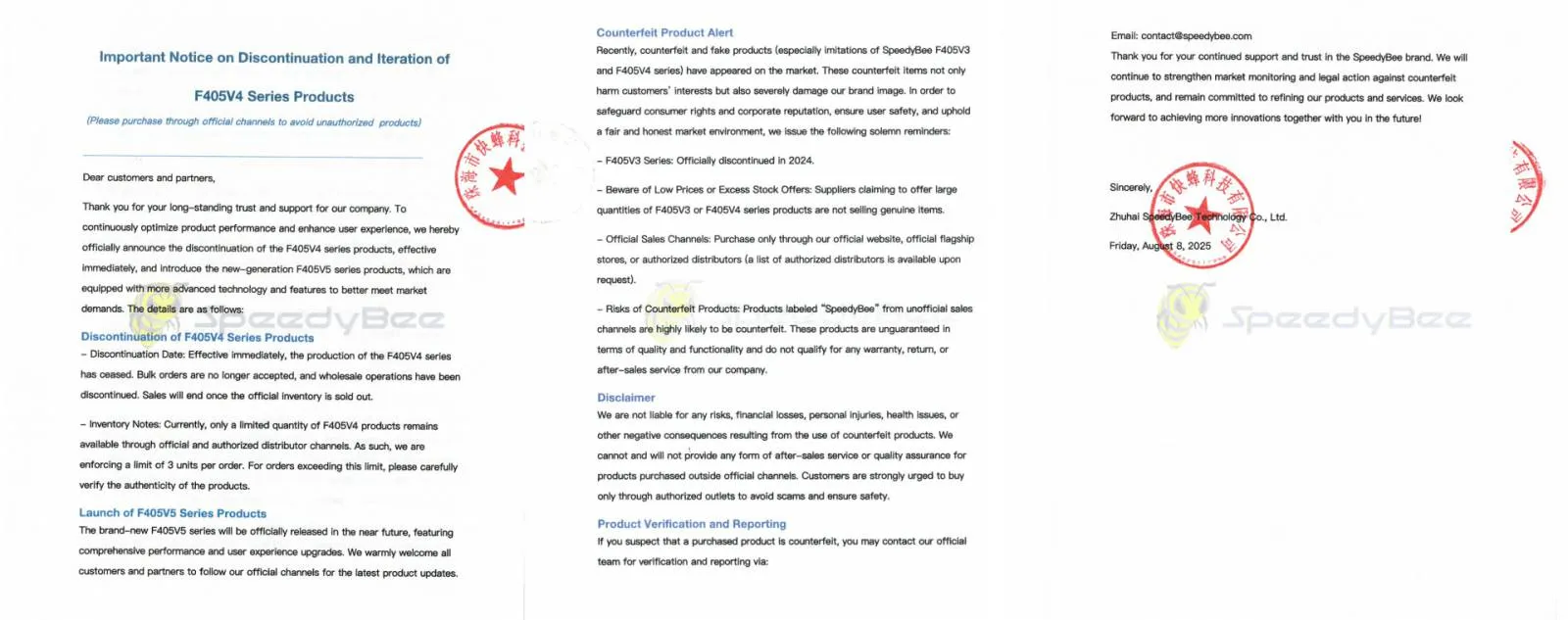

If you’ve been following the hardware stack market recently, you’ve probably noticed the legendary SpeedyBee F405 V4 has been impossible to find. As someone who has integrated the V4 into countless test rigs here at Atom Aviation, I had a feeling something new was on the silicon horizon.

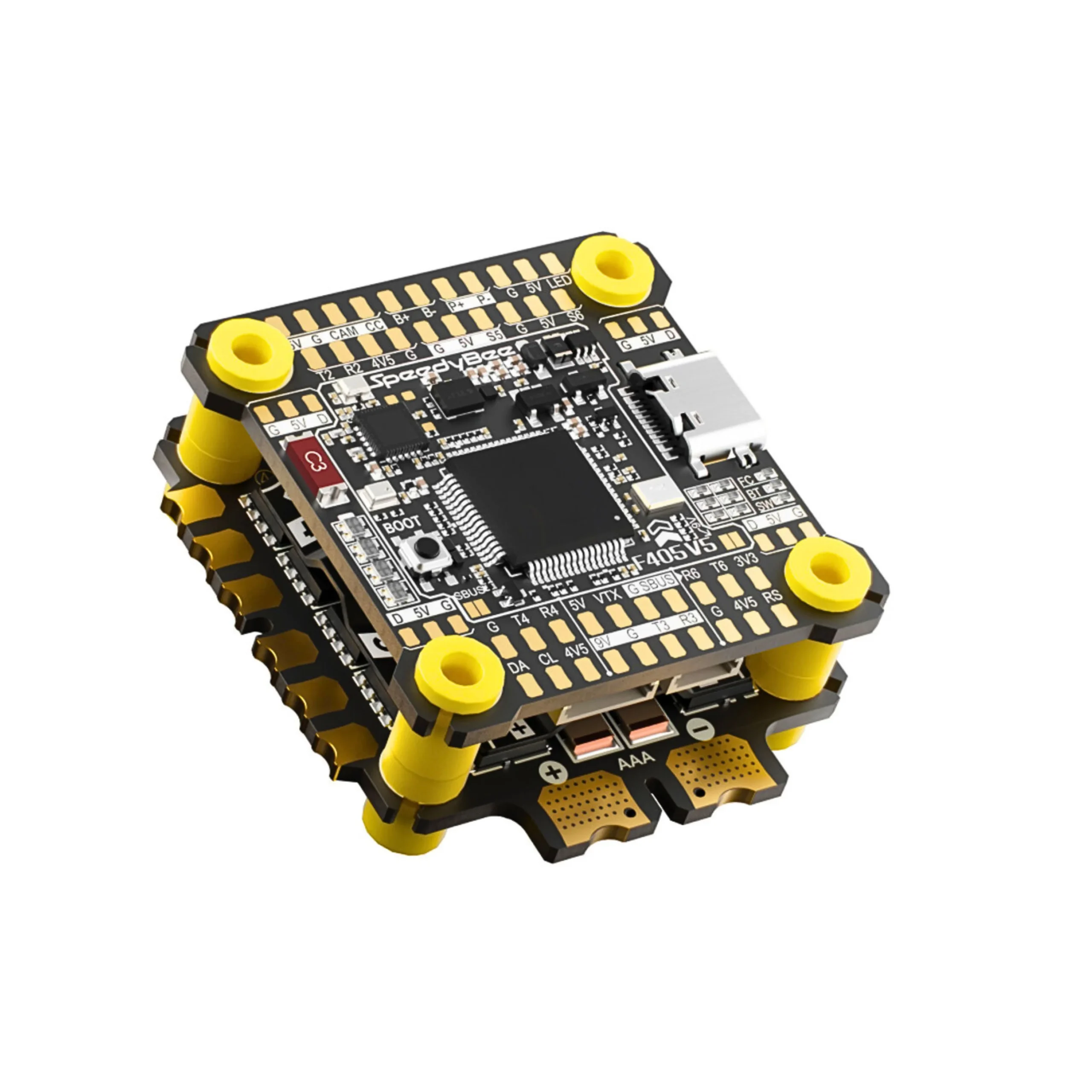

Well, the SpeedyBee F405 V5 is officially here.

Coming from a B.Tech ECE background and spending my days designing and troubleshooting drones for industrial applications, I look at flight controllers a bit differently than the average hobbyist. I don’t just care if it flies; I care about circuit architecture, firmware longevity, and reliability.

SpeedyBee has made some interesting design choices with the V5—some are solid engineering upgrades, but others have me scratching my head. Let’s break down the silicon.

The Price Bump & The Chip Shortage Reality

First off, the V5 lands at $74.99, which is a ~$9 hike over the V4. From a procurement standpoint, this is likely due to the shift to a 32-bit MCU on the ESC and general inflation. While $75 is still “budget” territory compared to premium stacks, that price gap starts to matter when you are buying components in bulk for a fleet.

The Flight Controller: A Mixed Bag of Layout Changes

The Mechanical Design

As an engineer, I appreciate good PCB layout. SpeedyBee has returned to a true square shape and moved the LED pads to accommodate proper gummy slots. This is a huge win for vibration isolation—mechanical noise is the enemy of the gyro, so easier soft-mounting is always welcome.

However, they moved the Boot button. On the V4, it was easily accessible on the side. On the V5, it’s migrated inwards. If you’ve ever bricked a board inside a tight frame or a custom industrial housing, you know the pain of needing a specialized tool just to reach DFU mode. It’s a small UX failure in an otherwise clean layout.

Connectivity: Plugs vs. Pads

They’ve added dedicated JST connectors for GPS and Receivers. In the R&D lab, I generally prefer direct soldering because connectors can introduce failure points under high vibration. However, for rapid prototyping and quick field repairs, I have to admit the modularity is convenient. Just remember to conformal coat those connectors if you’re flying in humid environments!

The Dealbreaker for Heavy Lifts

Here is my biggest gripe from an Atom Aviation perspective: Motor Outputs. The V4 had 8 motor outputs. The V5 has slashed this to 4. If you are building a standard quad, this is fine. But in my line of work, we often prototype Hexacopters or X8 configurations for heavy payloads. By limiting the board to 4 outputs, SpeedyBee has effectively categorized this stack as “Hobbyist Quad Only.” It’s no longer a viable option for our multi-rotor heavy-lift prototypes, which is a shame.

The ESC: 32-Bit vs. The “Closed Source” Trap

This is where my ECE brain starts ringing alarm bells.

SpeedyBee updated the ESC from an 8-bit MCU to a 32-bit MCU running a new firmware called OX32. On paper, 32-bit sounds superior—higher resolution, smoother RPM handling, and telemetry support.

But here is the reality: It is Closed Source.

We just witnessed the collapse of BLHeli_32. As an industry, we should be moving toward open standards like AM32 or Bluejay. Relying on a proprietary, closed-source firmware that is less than a year old is a risk for long-term R&D projects. If SpeedyBee stops supporting OX32, or if the configurator goes offline, the hardware becomes difficult to maintain.

From a technical standpoint, a well-tuned 8-bit ESC running Bluejay offers 95% of the performance of 32-bit for most FPV applications, with rock-solid reliability and open-source transparency. I would have preferred they kept the 8-bit architecture to keep the cost down and the ecosystem open.

The “App” Ecosystem

Another new “feature” is the requirement to activate the board via the SpeedyBee app (and provide an email) before first use. It feels very… DJI. One of the reasons we love building custom drones is to avoid walled gardens. Having to “login” to use a piece of hardware I physically own sits wrong with me.

Conclusion: Is it Lab-Ready?

The SpeedyBee F405 V5 is a robust piece of hardware with excellent wireless flashing capabilities—a feature that saves me significant time when tuning in the field without a laptop.

However, the reduction in motor outputs limits its versatility for industrial builds, and the move to closed-source ESC firmware is a step backward for community reliability.

My verdict: If you are building a standard 5-inch freestyle quad, this stack is still a beast. But for those of us in R&D looking for versatility and long-term firmware security, the V5 complicates things. I might be looking closer at the iFlight Blitz or GepRC Taker series for our next batch of prototypes.

Fly safe, and keep soldering.

Disclaimer: This is my personal technical analysis based on the spec sheets and my experience in the lab. I have no affiliation with SpeedyBee
