iFlight Albatross 150mm V2 5.8Ghz Antenna RHCP SMA
iFlight Albatross antenna 150mm V2 5.8GHz RHCP SMA is a high-performance FPV antenna designed for stable video transmission, reduced signal interference, and improved durability. Ideal for racing, freestyle, and long-range drones, it ensures reliable signal quality and consistent performance.
- Estimated Delivery : Up to 4 business days
iFlight Albatross 150mm V2 5.8GHz Antenna – Durable RHCP FPV Solution
Every FPV pilot knows the frustration of a broken antenna after a minor crash or sudden video breakup during an important gap shot. The iFlight Albatross 150mm V2 5.8GHz Antenna solves both problems. Engineered specifically for demanding FPV applications, this antenna delivers consistent signal performance while surviving impacts that would destroy standard stock antennas.
Operating across the 5.3GHz–6GHz frequency range, this RHCP antenna supports all major 5.8GHz FPV systems used in racing drones, freestyle quadcopters, and long-range builds. The right-hand circular polarization ensures proper signal matching between your video transmitter and goggles, significantly reducing multipath interference and video dropouts. Whether you are flying through concrete bandos or dense tree lines, this FPV antenna provides the link reliability you need to push harder and fly with confidence.
Built to Survive Real-World Crashes

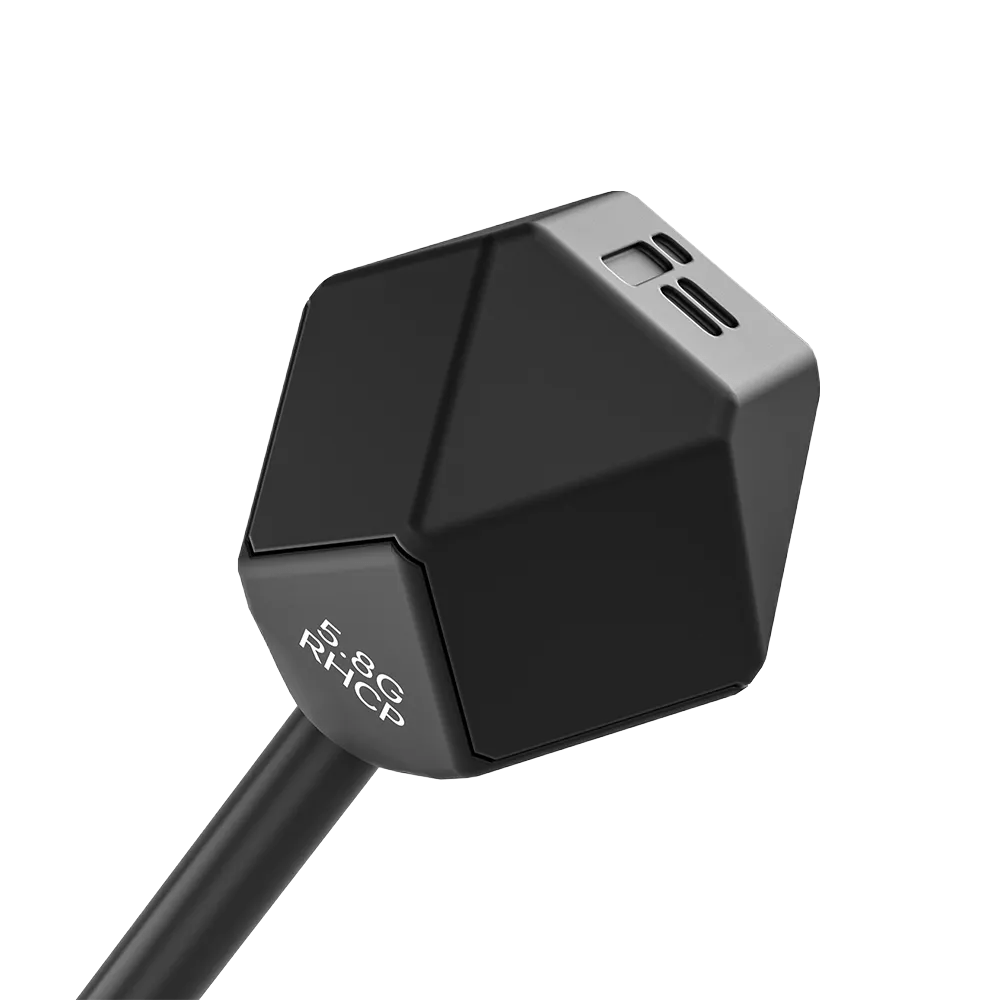

The V2 version of this iFlight antenna introduces a reinforced hexagonal outer housing specifically designed to withstand crash impacts. Ultrasonic welding technology secures the internal antenna core, eliminating movement that can degrade signal quality over time. Unlike cheap antennas that fail internally after a few hard landings, this FPV antenna maintains its performance characteristics through repeated abuse.

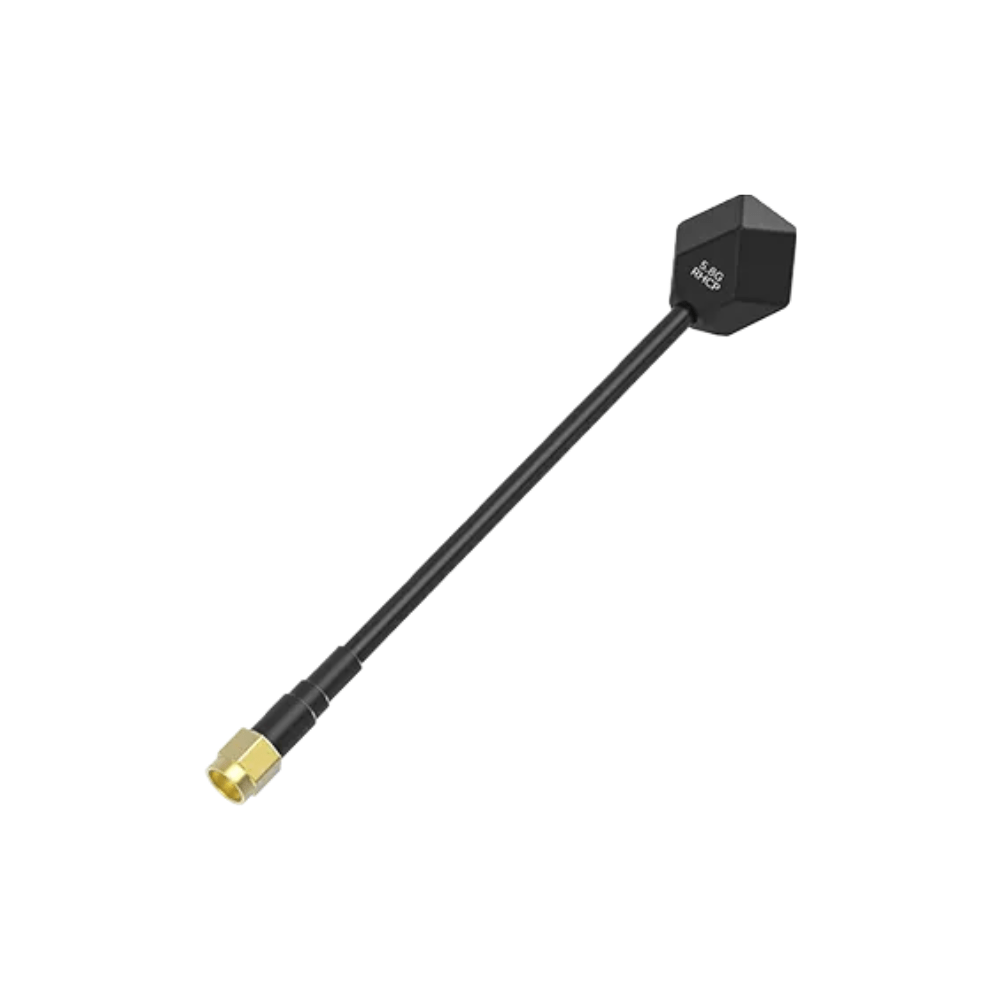

Weighing just 11.5 grams with a 150mm RG141 cable, the iFlight Albatross 150mm V2 5.8GHz Antenna adds minimal weight to your build while providing exceptional durability. The right-angle SMA connector simplifies mounting on tight frames and keeps the antenna positioned for optimal radiation pattern. When installing this antenna, route the cable away from sharp carbon edges and secure it with zip ties to prevent strain during crashes.
Clean, Consistent Video Signal
This FPV antenna achieves an average gain of 2.4dBi within its operating band, with radiation efficiency consistently above 80%. Cross polarization suppression of -25dB effectively rejects signals from opposite polarization, meaning cleaner video with less interference when flying near other pilots. The controlled VSWR values ensure your video transmitter operates efficiently without reflected power that can cause overheating.
For pilots using modern digital systems like DJI O3, Walksnail Avatar, or HDZero, the iFlight Albatross 150mm V2 5.8GHz Antenna provides the stable RF performance these high-bandwidth systems demand. Digital transmission users may also explore the Caddx Walksnail Avatar GT KIT for enhanced output power. Analog pilots seeking different gain patterns can consider the FPV Drone Mushroom Antenna depending on their specific frame layout and flying environment.
Polarization Matching Matters
This RHCP SMA version of the iFlight Albatross 150mm V2 5.8GHz Antenna is designed for systems requiring right-hand circular polarization. Proper polarization matching between your video transmitter and receiver is not optional — it is essential for maximum range and video clarity. Mismatched polarization can reduce signal strength by 20dB or more, turning a solid link into a unusable mess.
For technical background on circular polarization principles, refer to Circular Polarization Theory. Always verify that both your VTX and goggles use RHCP antennas when using this iFlight antenna. Mixing RHCP and LHCP antennas will severely limit your performance regardless of antenna quality.
Technical Specifications
- Frequency Range: 5.3GHz–6GHz
- Average Gain: 2.4dBi
- Polarization: RHCP
- Cable Type: RG141 (low-loss shielded coaxial)
- Cable Length: 150mm
- Total Length: 175mm
- Average Radiation Efficiency: ~83%
- Cross Polarization Suppression: -25dB
- Weight: 11.5g
- Connector Type: SMA (male, right-angle)
Why Pilots Choose This FPV Antenna
The iFlight Albatross 150mm V2 5.8GHz Antenna has become a trusted choice among freestyle and racing pilots for three reasons: durability, consistency, and value. Stock antennas often fail at the hinge point after minimal abuse, while cheaper aftermarket options sacrifice RF performance for low prices. This antenna delivers on all fronts — surviving crashes that would break others while maintaining clean, reliable video transmission.
When installing this antenna, position it vertically away from carbon fiber plates and large battery leads for best performance. The 150mm cable length fits most 3-inch to 7-inch FPV frames comfortably. For additional protection, consider using a TPU mount designed for SMA antennas to provide strain relief and crash protection.
Frequently Asked Questions
1. Will this antenna work with my DJI O3 Air Unit?
Yes, the iFlight Albatross 150mm V2 5.8GHz Antenna works perfectly with DJI O3, DJI O4, Walksnail Avatar, HDZero, and analog systems operating in the 5.8GHz band with RHCP polarization.
2. How does the V2 improve over the original Albatross?
The V2 version features a reinforced hexagonal housing, ultrasonic welding of internal components, improved cable strain relief, and more consistent gain characteristics across the frequency band.
3. Is 150mm cable length enough for my 5-inch freestyle build?
Yes, 150mm is sufficient for most 3-5 inch builds. For larger frames or specific mounting locations, consider measuring your desired cable path before ordering.
4. What is the difference between RHCP and LHCP?
RHCP (right-hand circular polarization) and LHCP (left-hand) are opposite polarization types. Your VTX and goggles must match. This antenna is RHCP, the most common standard in FPV.
5. Can this antenna be used on a long-range drone?
Yes, the iFlight Albatross 150mm V2 5.8GHz Antenna works well for medium-range flights. For extreme long-range (10km+), consider higher-gain directional antennas.
The iFlight Albatross 150mm V2 5.8GHz Antenna delivers the durability, RF performance, and reliability that serious FPV pilots demand. Stop replacing broken stock antennas and upgrade to a solution built for how you actually fly. Available now from Mall of Aviation.
