How to Use Blackbox in Betaflight: Evaluate FPV Drone Performance and Fix Issues

If you have ever struggled with tuning your FPV drone or diagnosing weird flight behavior, learning how to use Blackbox in Betaflight is the skill that changes everything. Before diving into advanced tuning, it is important to understand the complete FPV drone setup guide to ensure your drone is properly configured. Instead of guessing what is wrong with your drone, Blackbox lets you see exactly what your drone is doing in real time. It records gyro data, motor outputs, PID responses, and stick inputs so you can analyze performance with precision. In this comprehensive guide by Mall of Aviation, you will learn everything you need to know about how to use Blackbox in Betaflight—from enabling the feature to reading logs and fixing real FPV problems.

What Is Blackbox in Betaflight?

Before you learn how to use Blackbox in Betaflight, you need to understand what it actually is. Blackbox is a flight data recorder built directly into Betaflight firmware setup and configuration. Think of it as the black box recorder on an airplane—it captures everything your drone is doing during flight so you can review it later.

When you enable Blackbox logging, Betaflight records:

• • • Stick inputs (RC commands): What you are telling the drone to do.
    • Gyro movement: What the drone is actually doing.
    • PID responses: How the flight controller is correcting errors. Understanding PID tuning and rates in FPV drones is essential for analyzing Blackbox logs.
    • Motor outputs: How much power each motor is receiving.

This data is saved as a log file that you can open in Blackbox Explorer. Learning how to use Blackbox in Betaflight allows you to see whether your drone is following your commands accurately, detect oscillations and noise, diagnose hardware issues, and tune your PIDs with precision instead of guesswork.

Hardware Requirements for Blackbox Logging

To start using how to use Blackbox in Betaflight, you need storage space on your best flight controllers for FPV drones to record logs. There are three common ways to store Blackbox logs:

1. Flash Memory (Onboard)

Many modern flight controllers come with built-in flash memory chips specifically for Blackbox logging. If you are unsure which one to choose, understanding how to choose the right flight controller for your FPV drone is important.

2. SD Card Slot

Some flight controllers have a microSD card slot. This is the best option for frequent tuning because you can store unlimited logs. When learning how to use Blackbox in Betaflight, having an SD card allows you to record multiple flights without worrying about space.

3. External Blackbox Logger

If your flight controller has no onboard storage, you can use an external Blackbox logger that connects to your FC. This is less common now but still useful for older hardware.

Best Blackbox Settings for Logging in Betaflight

To get the most out of how to use Blackbox in Betaflight, you need to configure your logging settings correctly. Here are the recommended settings for clean, useful logs:

Logging Rate

• • 1 kHz: Suitable for basic tuning and beginners learning how to use Blackbox in Betaflight.

• • 2 kHz (Recommended): Provides higher resolution data for detailed analysis. Most modern FPV flight controllers can handle 2 kHz logging without issues, especially if you are using a high-performance flight controller for FPV drones.

Disable Unnecessary Fields

To keep your logs clean and easy to read, disable fields you do not need:

• GPS data
• RSSI information
• Battery telemetry
• Accelerometer (unless you need it)

Debug Mode

• NONE: Best for simple logs when first learning how to use Blackbox in Betaflight.
• FFT: Advanced mode for noise analysis and filter tuning.

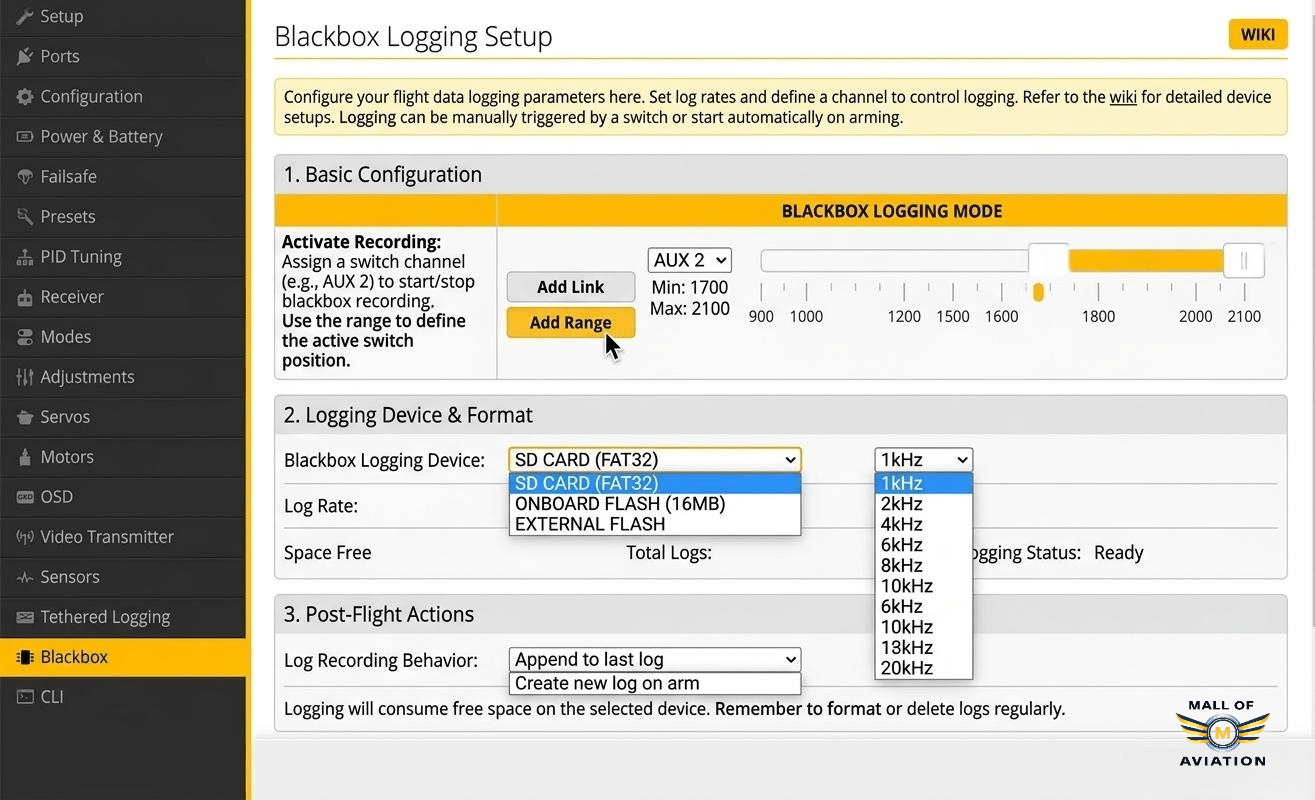

How to Record Blackbox Logs in Betaflight

Now that you understand the settings, let us dive into the actual process of how to use Blackbox in Betaflight to record logs. There are two primary methods:

Automatic Mode

By default, Blackbox starts recording automatically when you ARM your drone and stops when you DISARM. Before recording logs, make sure your drone is properly configured using a complete Betaflight setup guide for beginners. This is the simplest method and works well for most pilots.

Manual Mode

If you want more control over when recording starts and stops, you can assign Blackbox to an AUX switch on your transmitter. This allows you to start logging only during specific maneuvers or tuning flights, saving storage space.

Downloading Logs

After recording, you need to retrieve the logs to analyze them. Here is how to download Blackbox logs from your flight controller:

1. Connect your flight controller to Betaflight Configurator via USB.
2. Navigate to the Blackbox tab.
3. Enable Mass Storage Mode or Data Flash mode.
4. Your computer will recognize the flight controller as a removable drive.
5. Copy the .BBL or .BFL files to your computer.
6. Open the files in Blackbox Explorer for analysis.

Using Blackbox Explorer to View Logs

Once you have recorded your logs, the next step in how to use Blackbox in Betaflight is analyzing them. Blackbox Explorer is the official tool for viewing Betaflight logs. Here is how to navigate it:

• Graph Area: The main window displays data traces like gyro, setpoint, motor outputs, and more.
• Top Right: Shows stick inputs and RC commands in real time as you scrub through the log.
• Left Panel: Displays drone movement visualization, showing orientation and flight path.
• Time Axis: Allows you to zoom in on specific moments during your flight.

How to Analyze Blackbox Logs for Tuning

This is the core of how to use Blackbox in Betaflight. The two most important traces to understand are:

• Setpoint: The blue trace representing what you are commanding the drone to do.
• Gyro: The yellow trace representing what the drone is actually doing.

What to Look For in Your Logs

• Lag (Gyro trails behind Setpoint): This indicates P-gain or feedforward is too low. Increase P-gain or feedforward to improve response.
• Overshoot (Gyro goes past Setpoint): This means P-gain or feedforward is too high. Reduce them to prevent overshooting.
• Oscillations (Wavy lines in Gyro): High-frequency noise indicates filtering issues. Low-frequency oscillations indicate P-gain or D-gain problems.
• Motor Output Clipping (Motor traces hitting 100%): Your motors are maxing out. Reduce P-gain or increase filtering.

Real Troubleshooting Examples Using Blackbox

Now that you understand the basics of how to use Blackbox in Betaflight, let us look at real-world examples of problems you can diagnose:

1. Oscillation Issue (High-Frequency Noise)

What to look for: Wavy lines in the gyro trace during hovering or steady flight.
Cause: High P-gain or low D-gain. Also could be mechanical vibrations.
Fix: Increase D-gain to dampen oscillations, or reduce P-gain. Check propellers and motor mounting.

2. Propwash Oscillations

What to look for: Oscillations during descent or after sharp turns.
Cause: Motors maxing out (motor traces hitting 100%) trying to correct turbulence.
Fix: Adjust filters, increase D-gain, or reduce P-gain on roll and pitch.

3. Feedforward Too High

What to look for: Gyro moves before the setpoint during fast stick movements.
Cause: Feedforward is overpowering P-gain.
Fix: Reduce feedforward value gradually until gyro and setpoint align.

4. Motor Imbalance

What to look for: One motor output consistently higher than others during steady flight.
Cause: Weight imbalance, damaged motor, or ESC calibration issue.
Fix: Check your drone’s center of gravity, inspect FPV drone motors and performance issues, and recalibrate ESCs.

5. ESC Desync

What to look for: A motor output suddenly drops to zero while others continue.
Cause: ESC timing issues or motor failure.
Fix: Check ESC settings, motor connections, and consider replacing the ESC if the problem persists.

6. RC Link Issues

What to look for: Uneven steps or jumps in the RC command trace.
Cause: Interference, low packet rate, or receiver issues.
Fix: Check receiver antenna placement, increase packet rate, or inspect receiver connections.

Pro Tips for Mastering How to Use Blackbox in Betaflight

To get the most out of how to use Blackbox in Betaflight, follow these professional tips:

• Perform clean test moves: When recording logs for tuning, perform clear, deliberate maneuvers like rolls, flips, and full-throttle punches. This makes the logs easier to analyze.
• Avoid random flying during logs: If you are trying to diagnose a specific issue, focus on that maneuver rather than flying randomly.
• Check logs after every tuning change: Make one change at a time, record a log, and analyze the result. This helps you understand exactly what each adjustment does.
• Don’t rely only on feel: Your instincts are valuable, but Blackbox provides objective data that can reveal problems you might not feel.
• Use Blackbox for proof-based tuning: Instead of guessing, let the data guide your tuning decisions. This is the professional approach.
• Save reference logs: When your drone is flying perfectly, save a Blackbox log as a reference. This helps you compare future tuning changes.

Frequently Asked Questions About How to Use Blackbox in Betaflight

Final Thoughts: Why You Need to Learn How to Use Blackbox in Betaflight

Learning how to use Blackbox in Betaflight is one of the most valuable skills you can develop as an FPV pilot. It removes the guesswork from tuning and replaces it with real, actionable data. Instead of wondering why your drone feels off, you can open a log and see exactly what is happening. Whether you are struggling with oscillations, propwash, motor heat, or simply want to optimize your performance, Blackbox gives you the answers.

Start by enabling Blackbox on your flight controller and recording a few logs. Open them in Blackbox Explorer and compare the gyro and setpoint traces. Notice how they behave during different maneuvers. With each log, you will become more proficient at reading the data and understanding what your drone is telling you.

Remember, every professional pilot and tuner relies on how to use Blackbox in Betaflight to achieve peak performance. It is the tool that separates guesswork from precision. At Mall of Aviation, we are committed to helping you build smarter, fly better, and tune like a pro. Take the time to master Blackbox, and your FPV journey will reach new heights.
