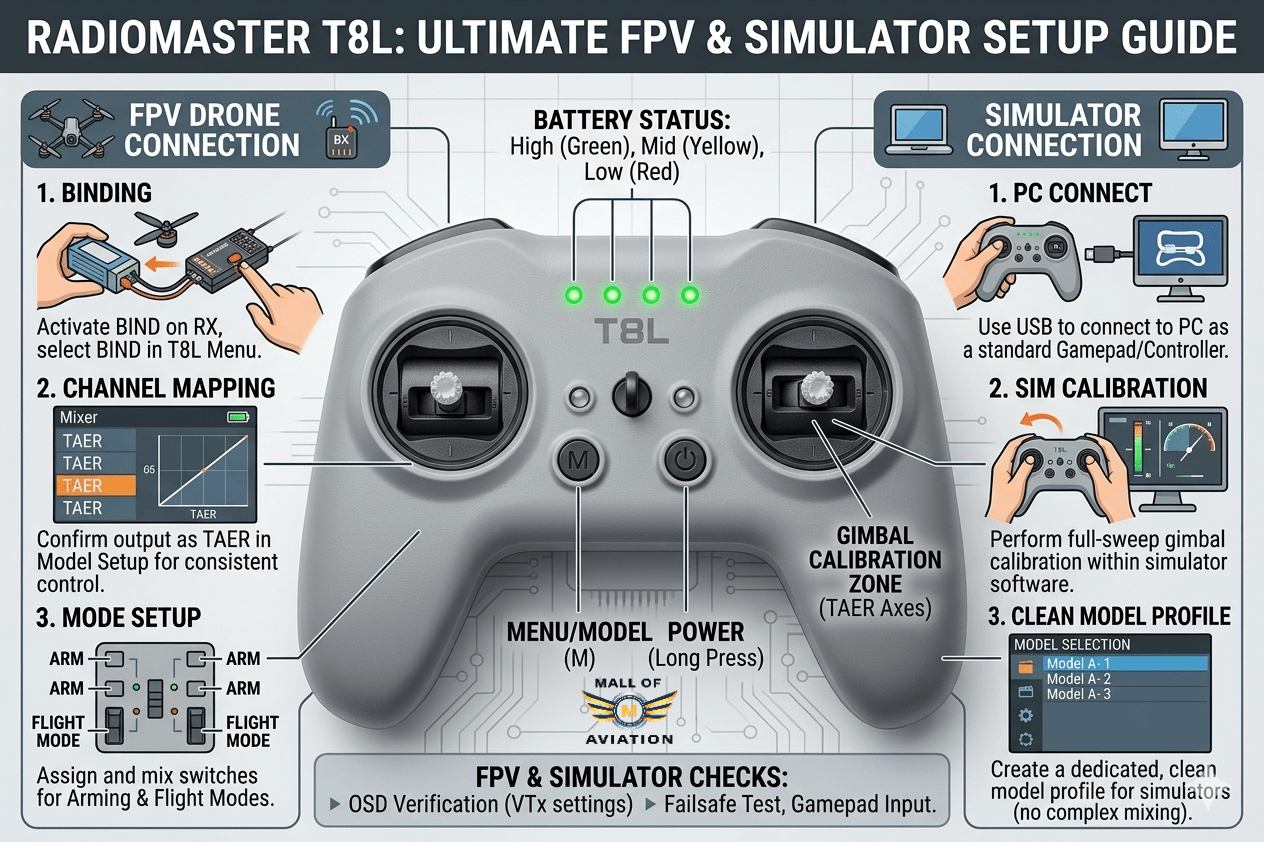

How to Setup Radiomaster T8L for FPV Drones & Simulators: Complete 2026 Guide

The Radiomaster T8L may look simple on the outside—no screen, minimal buttons—but don’t underestimate it. This compact radio offers nearly all the features of high-end transmitters through a powerful Web Configurator (WebUI) that runs right in your browser. Whether you are a beginner looking for an affordable entry into FPV or an experienced pilot wanting a backup radio, mastering how to setup Radiomaster T8L FPV radio controller for fpv drones simulators will give you a reliable, feature-packed control system. In this complete guide by Mall of Aviation, you will learn step by step how to fully configure the T8L for both real FPV drones and simulator practice.

How to Connect to Web Configurator

Before connecting USB, you must enter VCP (Virtual COM Port) mode. This is the first step in how to setup radiomaster t8l for fpv drones simulators. Follow these steps carefully:

1. Hold the M button + Power button simultaneously for about 3 seconds.
2. Release both buttons once you feel a vibration or see an LED indication.
3. Connect a USB-C cable from the radio to your computer.
4. Open your web browser and navigate to the WebUI address (typically displayed in your computer’s network settings).
5. Select the correct COM port from the dropdown menu and click Connect.

Overview of Web Configurator Settings

The WebUI is the brain of your T8L. Once you understand how to setup radiomaster t8l for fpv drones simulators using this interface, you will have complete control over your radio. The WebUI gives you access to:

• Switch Setup: Configure how each switch behaves and what channels they control.
• Channel Mapping: Define your stick order (AETR, TAER, etc.) and adjust trims.
• ExpressLRS Settings: Adjust power output, packet rate, and link mode for optimal performance.
• Firmware Updates: Keep your radio and ELRS module running the latest software.
• Calibration: Fine-tune your gimbals for precise control.

This WebUI system replaces the traditional screen-and-button navigation found on other radios, making configuration faster and more intuitive.

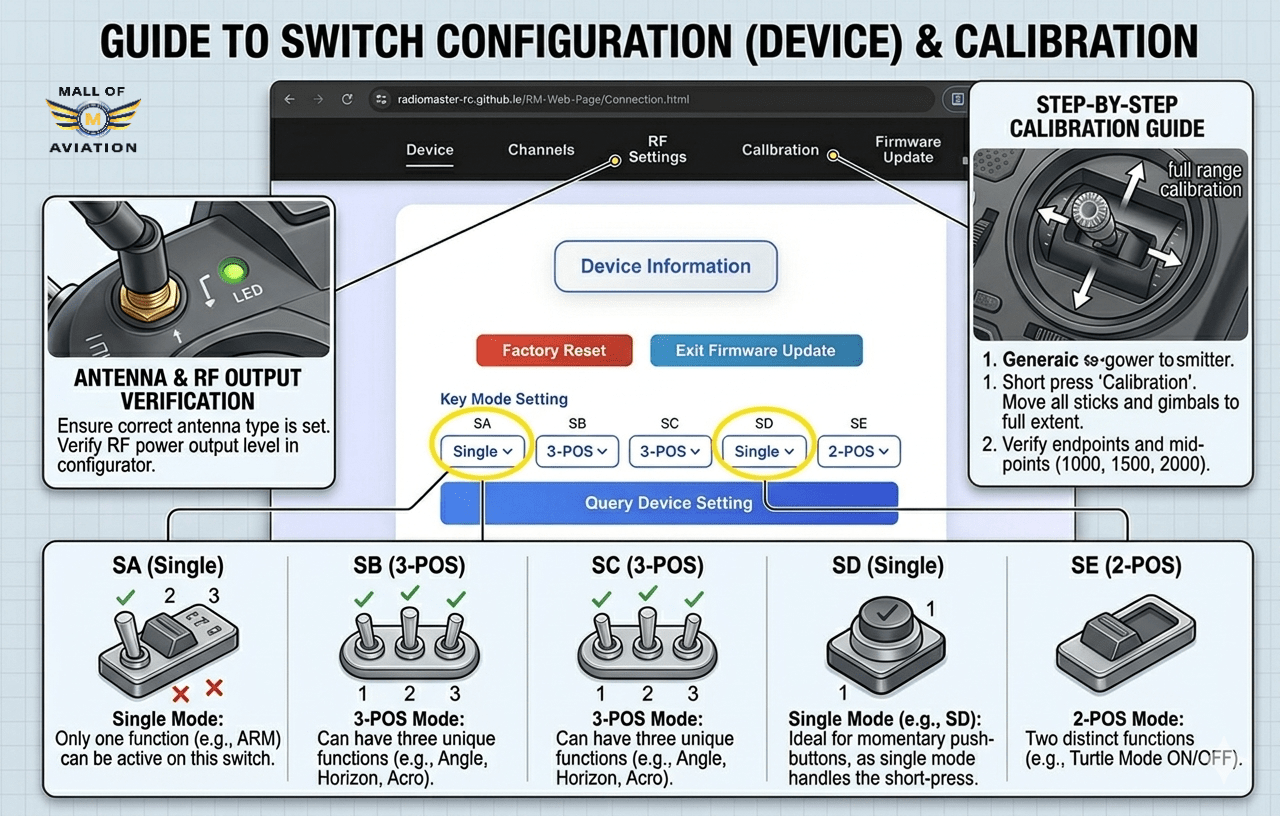

Switch Configuration in Device Tab

The Radiomaster T8L uses momentary switches that spring back to center. But you can convert them to act like traditional two-position or three-position switches. This is a key part of how to setup radiomaster t8l for fpv drones simulators because many simulator and drone functions require toggles rather than momentary buttons.

• Set Click → Single: This converts the switch to a 2-position switch. One press activates low, another press activates high.
• Set Click → Double: This creates a 3-position switch. One press = low, two presses = middle, three presses = high.

How It Works in Practice:

• 1 press → sends LOW signal (e.g., disarm)
• 2 presses → sends HIGH signal (e.g., arm)
• For 3-position mode, 3 presses sends the third state

Channel Setup for Your FPV Drone

Inside the Channels tab, you can fine-tune how your sticks and switches output signals. This section of how to setup radiomaster t8l for fpv drones simulators ensures your inputs match what your flight controller or simulator expects.

• Change Channel Mapping: Most FPV systems use AETR (Aileron, Elevator, Throttle, Rudder) order. Ensure your mapping matches your flight controller configuration.
• Reverse Sticks: If your throttle feels backwards, you can reverse individual channels here.
• Adjust Trims: Fine-tune center points for each stick.
• Set Deadband: Add a small dead zone to prevent unintended inputs from stick imperfections.

Most users don’t need to change anything here beyond verifying the mapping is correct. However, knowing these settings is important for advanced tuning.

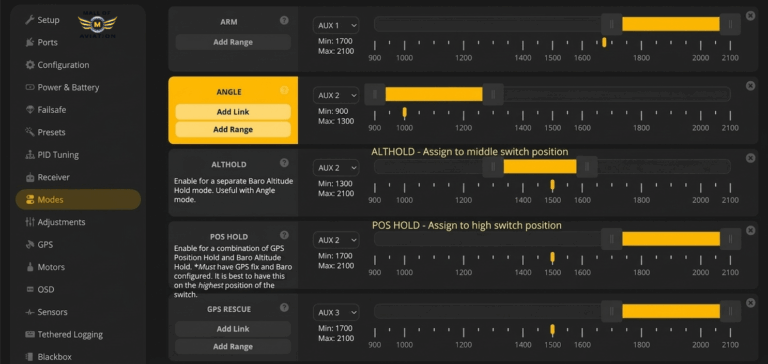

Betaflight Modes Configuration

After configuring your switches in the WebUI, the next step in how to setup radiomaster t8l for fpv drones simulators is assigning those switches to functions in Betaflight. This is where you turn your switch presses into actual drone commands.

1. Open Betaflight Configurator and connect your flight controller.
2. Go to the Modes tab.
3. You will see a list of functions like Arm, Angle Mode, Horizon Mode, Beeper, etc.
4. Click Add Range next to the function you want to assign.
5. Move the switch on your T8L—you will see the AUX channel move in the preview.
6. Adjust the yellow range bar to match the switch position.
7. Click Save.

Common assignments include:

• Arm switch: Assign to a switch position that feels natural and safe.
• Angle mode: For stable, self-leveling flight.
• Beeper: To locate your drone after a crash.
• Rate profiles: To switch between different flight characteristics.

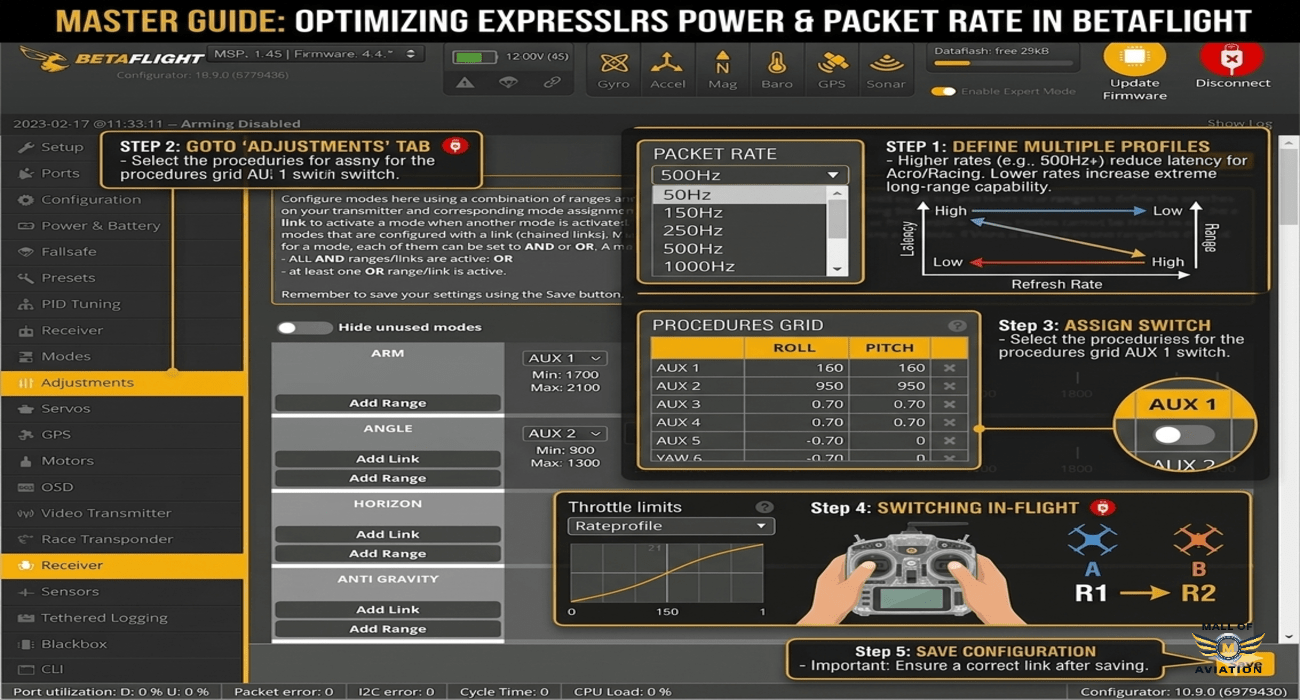

ExpressLRS Settings (Power & Packet Rate)

Inside the RF Settings section of the WebUI, you will configure your ExpressLRS receiver link. This is a critical part of how to setup radiomaster t8l for fpv drones simulators because it directly affects range, latency, and reliability.

• TX Power: Set between 25mW and 100mW for most flying. Higher power gives more range but uses more battery. 100mW is sufficient for most freestyle and racing.
• Packet Rate: 250Hz is the recommended balance of range and latency. Lower rates like 50Hz give more range but feel slightly slower. Higher rates like 500Hz give lower latency but reduce range slightly.
• Dynamic Power: Enable this to let the system automatically adjust power based on signal strength, saving battery when close.
• Switch Mode: Set to Wide for compatibility with most receivers.
• Link Mode: Normal is appropriate for most pilots.

How to Bind Receiver to Your T8L

Binding your receiver is essential for how to setup radiomaster t8l for fpv drones simulators to work with actual drones. There are two methods, and the bind phrase method is strongly recommended.

Method 1: Bind Phrase (Recommended)

1. Enable WiFi mode on your T8L.
2. Connect to the radio’s WiFi network (usually named ExpressLRS TX).
3. Open your browser and go to 10.0.0.1.
4. Enter your desired bind phrase (any text, must match exactly between radio and receiver).
5. Click Save and reboot.
6. Power cycle your receiver with the same bind phrase configured.

Method 2: Bind Button

1. Press the bind button on your T8L.
2. Power cycle your receiver three times quickly to enter bind mode.
3. Wait for the LED to indicate a successful bind.

The bind phrase method is superior because once set, your radio and receiver will automatically connect every time without needing to re-bind.

WiFi Mode & Firmware Updates

Enabling WiFi mode on your T8L unlocks powerful capabilities that are essential for how to setup radiomaster t8l for fpv drones simulators over the long term.

• Update ELRS Firmware: Connect to the radio’s WiFi, browse to 10.0.0.1, and upload new firmware files easily.
• Access Settings Wirelessly: Make configuration changes without a USB cable.
• Configure WiFi Settings: Connect your radio to your home WiFi for internet-based updates.

To enter WiFi mode, press the WiFi button or use the WebUI. The radio will create a hotspot you can connect to with your computer or phone.

Gimbal Adjustment & Calibration

Proper gimbal feel is crucial for precise control. Here is how to adjust your T8L’s gimbals as part of how to setup radiomaster t8l for fpv drones simulators.

Adjust Tension

• Open the radio case carefully.
• Locate the tension adjustment screws on each gimbal.
• Turn clockwise to increase tension (stiffer feel), counter-clockwise to decrease.
• You can also replace springs if you prefer a different resistance level.

Calibration Process

1. Go to the Calibration tab in WebUI.
2. Center both sticks and click Calibrate.
3. Move each stick to its full range in all directions (up, down, left, right).
4. Rotate any knobs or switches to their endpoints.
5. Click Save when complete.

FPV Simulator Setup: Master Before You Fly

One of the biggest benefits of understanding how to setup radiomaster t8l for fpv drones simulators is that you can practice without risking your real drone. The T8L works seamlessly with popular FPV simulators using a real radio controller.

1. Connect your T8L to your computer via USB-C.
2. Open your preferred simulator (Liftoff, Velocidrone, DRL Sim, Uncrashed, etc.).
3. In the simulator’s settings, select Controller or Input.
4. The T8L should appear as a game controller automatically.
5. Follow the simulator’s calibration process—usually moving each stick to its full range.
6. Test that throttle, yaw, pitch, and roll respond correctly.
7. Assign arm and mode switches if your simulator supports them.

The T8L is plug-and-play with most modern simulators—no drivers or additional software needed. This makes how to setup radiomaster t8l for fpv drones simulators incredibly straightforward.

Firmware Upgrade Process

Keeping your firmware current is an important part of long-term how to setup radiomaster t8l for fpv drones simulators. Updates often include new features, bug fixes, and improved performance.

Inside the WebUI, you can:

• Update Radio Firmware: Download the latest firmware from the Radiomaster website and upload it through the WebUI.
• Update ELRS Module: Similarly, update the ExpressLRS module to the latest version for improved link performance.

If your radio gets stuck in firmware mode, simply click the Exit Firmware Mode button in the WebUI to return to normal operation.

Pro Tips for Best Radiomaster T8L Setup

• Use bind phrase: It simplifies binding and ensures your radio and receiver always connect automatically.
• Always calibrate sticks: Calibration ensures your inputs are accurate and centered. Recalibrate after any gimbal adjustment.
• Set packet rate properly: 250Hz is the best starting point for most pilots. Adjust only if you have specific needs.
• Use WebUI instead of guessing: The browser interface is powerful and intuitive—take time to explore all the settings.
• Test in simulator first: Before flying your real drone, verify all switches and stick movements work correctly in a simulator.
• Keep firmware updated: Regular updates improve performance and add new features.
• Label your switches: Use small stickers or a marker to remember which switch does what, especially if you use multiple configurations.

Frequently Asked Questions About Radiomaster T8L Setup

Final Thoughts: Master Your Radiomaster T8L Setup

The Radiomaster T8L proves that you don’t need an expensive, screen-equipped radio to get powerful features. Its WebUI system makes configuration easier than traditional radios, especially for beginners learning how to setup radiomaster t8l for fpv drones simulators. With proper setup, this compact radio delivers excellent performance for both FPV flying and simulator practice.

Take time to explore the WebUI, understand your switch configurations, and calibrate your gimbals properly. Practice in the simulator until your muscle memory is solid, then transfer those skills to your real drone. The T8L’s ExpressLRS integration gives you a reliable, low-latency link that rivals much more expensive radios.

At Mall of Aviation, we are committed to helping you choose and configure the best FPV gear for your journey. Whether you are just starting or adding to your collection, the Radiomaster T8L is an excellent choice that delivers far more than its price suggests.
