How to Setup Position Hold and Altitude Hold in Betaflight (Complete 2026 Guide)

If you want to setup position hold and altitude hold in Betaflight, you have come to the right place. These are two of the most powerful and genuinely useful features available in the latest Betaflight firmware — and yet they remain surprisingly underused by a large portion of the FPV community, largely because the setup process involves multiple steps across hardware, firmware, and software that are not immediately obvious to pilots new to GPS-assisted flight modes.

With GPS Position Hold and Altitude Hold properly configured in Betaflight, your FPV drone gains capabilities that were previously exclusive to consumer camera drones like DJI systems. With a single switch flip, your quad can hover in place without any stick input, maintain a precise altitude using barometric pressure data, and even recover its position after a wind gust — all automatically, while you focus on composing your shot, managing a complex flying situation, or simply taking a moment to orient yourself during a demanding flight.

One of the most powerful new features in modern Betaflight is GPS Position Hold and Altitude Hold. With a simple switch, your drone can hover in place hands-free, maintain altitude automatically, and help in emergency situations. Whether you are flying long-range missions, capturing cinematic footage, or just want a reliable safety backup mode — learning how to setup position hold and altitude hold in Betaflight can completely change your flying experience.

In this complete guide by Mall of Aviation, you will learn exactly how to setup position hold and altitude hold in Betaflight — covering hardware requirements, GPS module selection, wiring, firmware configuration, calibration procedures, mode assignment, real-world usage, troubleshooting, and professional tips for getting the most reliable performance from these features on your specific build.

Hardware Required to Setup Position Hold and Altitude Hold in Betaflight

Before you can setup position hold and altitude hold in Betaflight, you need to verify that your hardware supports these features. Not all flight controllers and GPS modules are compatible, and using the wrong hardware combination is one of the most common reasons pilots struggle with GPS flight modes. Here is exactly what you need:

• GPS Module (mandatory): A GPS module is the absolute foundation of the position hold feature. Without a functioning GPS module with sufficient satellite lock, Position Hold will not activate. Betaflight requires a minimum of 6 satellites for basic function, with 8 or more strongly recommended for reliable, stable position holding. The GPS module communicates with the flight controller via a UART serial connection at a specific baud rate.
• Flight Controller with Accelerometer (mandatory): Both Position Hold and Altitude Hold require an accelerometer to function correctly. The accelerometer provides the tilt and orientation data that Betaflight needs to level the drone and correct position. Most modern flight controllers include accelerometers, but verify that yours does and that it is in working condition before beginning setup.
• Barometer (strongly recommended): A barometer measures atmospheric pressure, which Betaflight uses to calculate altitude. While Altitude Hold can operate without a barometer (using GPS altitude data alone), barometric altitude data is significantly more accurate and stable for short-term altitude holding. If your flight controller includes an onboard barometer, always enable it for the best Altitude Hold performance.
• Magnetometer / Compass (optional but beneficial): A compass provides heading information that dramatically improves Position Hold behavior — particularly at the moment of activation and when the drone is stationary. Without a compass, Betaflight must infer heading from GPS velocity data, which requires the drone to be moving. The compass is especially valuable for pilots who need to activate Position Hold immediately from a stationary hover.

GPS and Compass — Understanding What You Need to Setup Position Hold and Altitude Hold in Betaflight

Understanding the roles of GPS and compass in Betaflight’s Position Hold system helps you make informed decisions about your hardware and set realistic expectations for performance. When you setup position hold and altitude hold in Betaflight, these two components work together — but they serve distinct purposes.

The GPS module provides absolute position data — your drone’s latitude, longitude, and altitude in the real world. Betaflight uses this data to know where your drone is and calculate how far it has drifted from its locked position. The GPS update rate (typically 10Hz for modern modules) determines how quickly Betaflight can detect and correct position drift.

The compass (magnetometer) provides heading data — the direction your drone is pointing relative to magnetic north. This information is critical because Betaflight needs to know the drone’s orientation to calculate which motor to speed up or slow down to correct a position error. If the drone has drifted north and needs to fly south to return to its locked position, Betaflight needs to know which direction is south relative to the drone’s current heading to issue the correct control commands.

With Compass — Benefits for Position Hold Setup

• Instant Position Hold activation from a stationary hover — no forward flying required
• Better heading accuracy throughout the position hold session
• More stable behavior in windy conditions where the drone may rotate slightly while holding position
• More reliable position maintenance when the drone is stationary with no GPS velocity data available

Without Compass — What to Expect

• Must fly forward for a brief period (typically 50–100 meters) before activating Position Hold to establish GPS-derived heading
• Slight drift may occur, particularly when transitioning from forward flight to stationary hover
• Position Hold is less reliable at the moment of activation if the drone was not already moving
• Overall simpler setup with fewer calibration steps and no magnetic interference concerns

Choosing the Right GPS Module for Betaflight Position Hold Setup

Not all GPS modules perform equally when used to setup position hold and altitude hold in Betaflight. The key specifications to consider when selecting a GPS module are:

• Update rate: A 10Hz update rate is the minimum recommended for reliable Position Hold. Slower update rates (5Hz) produce sluggish position correction that can feel unstable. Most modern GPS modules designed for FPV drones support 10Hz operation.
• Multi-constellation support: GPS modules that can receive signals from multiple satellite constellations simultaneously — GPS (American), GLONASS (Russian), Galileo (European), and BeiDou (Chinese) — achieve faster satellite lock and higher satellite counts than single-constellation modules. This directly improves the reliability and accuracy of your Betaflight position hold setup.
• Integrated compass: Many GPS modules designed for FPV include an integrated magnetometer. Choosing a combined GPS+compass module simplifies wiring since both functions share a single connector to the flight controller.
• Weight and size: For FPV drones, particularly sub-250g builds where weight is critical, GPS module weight directly impacts flight time and handling. Nano-sized GPS modules (like the Flywoo GOKU Nano) offer excellent performance in minimal weight packages.

Popular GPS modules recommended for Betaflight position hold setup include the Flywoo GOKU Nano GPS V3, BetaFPV M8N GPS, and Matek M8Q-5883. For detailed GPS module comparisons, the GPS module comparison guide at Oscar Liang’s website provides excellent up-to-date information on the best options available for FPV builds in 2026.

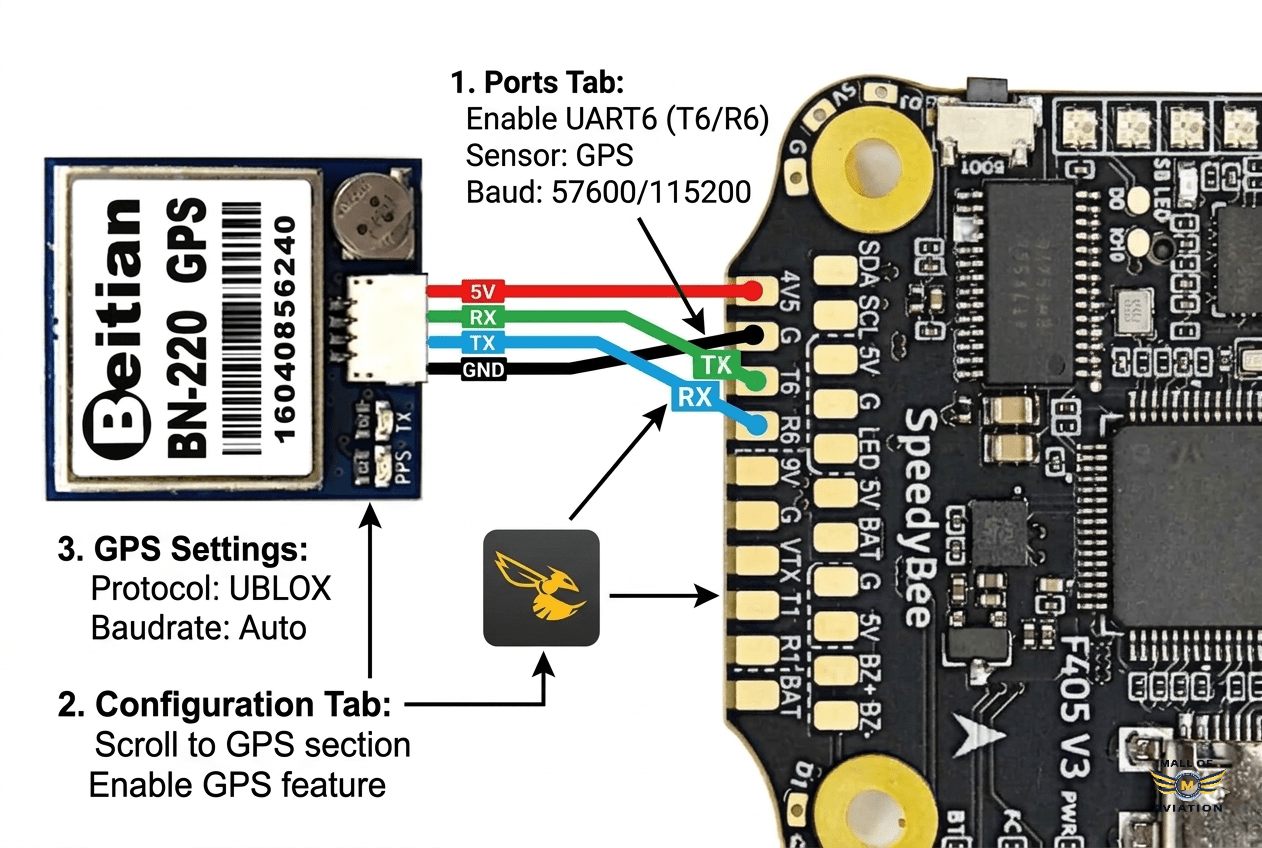

How to Connect GPS to best flight controller for FPV drones — Wiring Guide

Correct wiring is a critical step when you setup position hold and altitude hold in Betaflight. An incorrectly wired GPS module is one of the most common causes of GPS detection failure in Betaflight, and it is worth taking the time to verify every connection before powering up.

The basic GPS serial connections are straightforward:

• GPS TX → FC RX (the GPS transmits data to the FC receive pin)
• GPS RX → FC TX (the FC transmits commands to the GPS receive pin)
• 5V → 5V (power supply from the FC’s 5V BEC output)
• GND → GND (common ground)

If you are also connecting an integrated compass (magnetometer) on the same module, add these I2C connections:

• SDA → SDA (I2C data line)
• SCL → SCL (I2C clock line)

After wiring, verify the physical connections are secure — GPS wires are thin and the connectors can work loose from vibration over time. A GPS module that appears to work initially but loses connection during flight is a common cause of unexpected Position Hold failures. Consider adding a small amount of hot glue or silicone adhesive to secure the connector once you have confirmed everything is working correctly.

How to Setup Position Hold and Altitude Hold in Betaflight — Complete Step-by-Step

With your hardware wired correctly, the Betaflight software configuration is the core of the process to setup position hold and altitude hold in Betaflight. Follow these steps exactly in order for the most reliable results:

Step 1 — Update to the Latest Betaflight Firmware

GPS position hold and altitude hold features in Betaflight have received significant improvements through recent firmware updates. Always ensure you are running Betaflight 2025.12 or newer before attempting to configure these modes. Earlier firmware versions have known limitations and bugs with GPS flight modes that have been resolved in recent releases. Flash the latest stable firmware through Betaflight Configurator’s Firmware Flasher tab before proceeding with any configuration.

• Open Betaflight Configurator and navigate to the Firmware Flasher tab
• Select your flight controller target and choose the latest stable release
• Enable the GPS, Altitude Hold, and Position Hold features in the firmware build configuration if using a custom build
• Flash and allow the FC to reboot fully before reconnecting

Step 2 — Ports Tab Configuration

Navigate to the Ports tab in Betaflight Configurator. Find the UART row corresponding to the hardware UART you physically connected your GPS module to. In the Sensor Input dropdown for that UART, select GPS. Set the baud rate to Auto — Betaflight will automatically negotiate the correct baud rate with your GPS module on startup. Click Save and Reboot.

Step 3 — Configuration Tab Settings

In the Configuration tab, enable the following features based on your hardware:

• Accelerometer: Enable this — mandatory for all GPS flight modes
• Barometer: Enable if your FC has an onboard baro — strongly recommended for Altitude Hold
• Magnetometer: Enable only if you are using an external compass module and have completed compass calibration
• GPS: Enable the GPS feature globally

Scroll down to the GPS section in the Configuration tab and set the GPS protocol to UBLOX. Set Ground Assistance Type to Auto Detect. Save and Reboot.

Step 4 — CLI Configuration for No-Compass Setup

If you are setting up position hold and altitude hold in Betaflight without a compass (the recommended starting configuration for most pilots), you need to enable compass-free Position Hold mode via the CLI:

set pos_hold_without_mag = ON
save

This tells Betaflight to allow Position Hold activation even when no magnetometer is available, using GPS velocity to determine heading instead. Without this command, attempting to activate Position Hold without a compass will result in a “POSHOLD FAIL” OSD message.

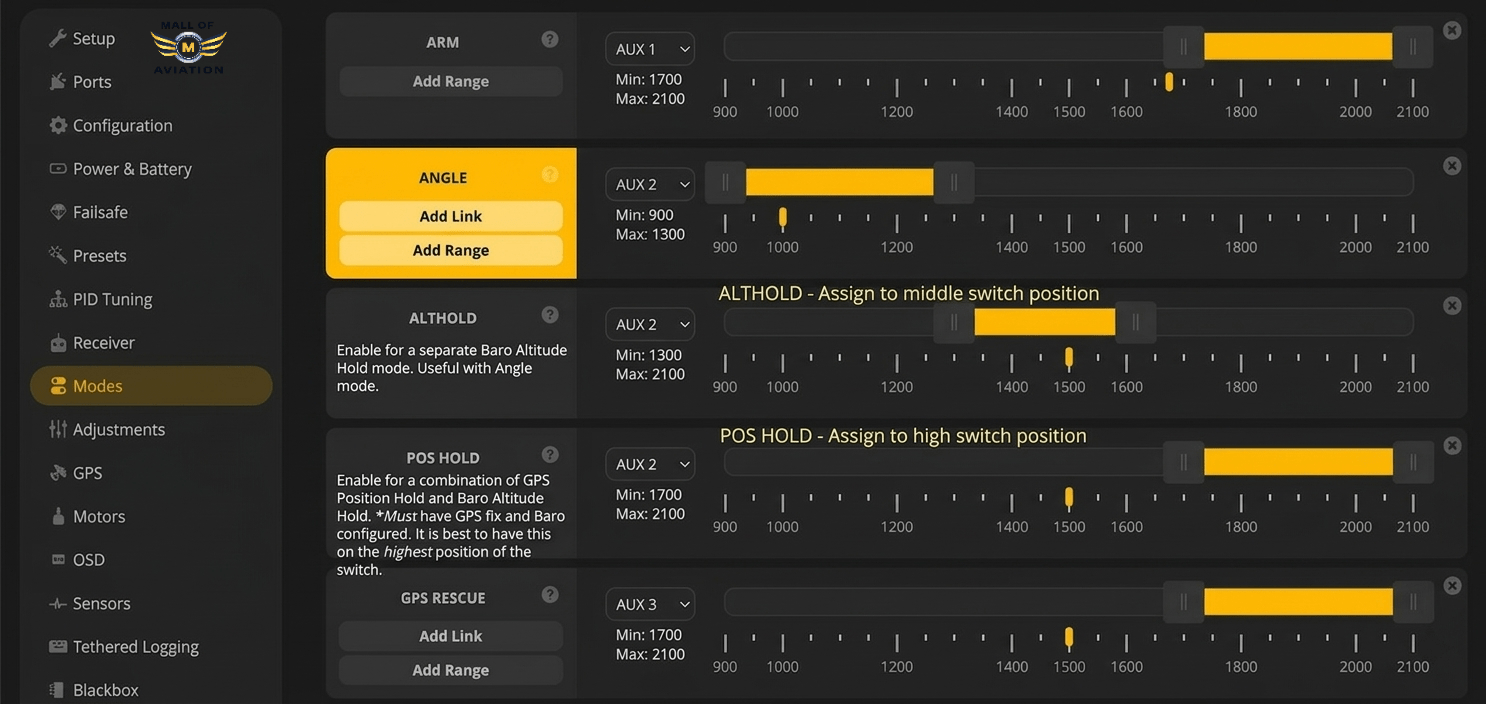

Step 5 — Modes Tab — Assigning Altitude Hold and Position Hold Switches

Navigate to the Modes tab in Betaflight Configurator. You need to assign both Altitude Hold (ALTHOLD) and Position Hold (POS HOLD) to switches on your radio transmitter. The most effective configuration for piloting convenience when you setup position hold and altitude hold in Betaflight is a 3-position switch assigned as follows:

• Switch Position 1 (bottom/off): Normal Acro/Manual mode — no GPS assistance
• Switch Position 2 (middle): Altitude Hold only — drone maintains altitude while you control horizontal position
• Switch Position 3 (top): Both Altitude Hold AND Position Hold active — fully hands-free hover

Setting the Correct Hover Throttle — Critical Step

One of the most important steps when you setup position hold and altitude hold in Betaflight is correctly configuring the hover throttle value. This tells Betaflight what throttle level your specific drone needs to maintain a stable hover — and it varies significantly between different drone weights, motor KV ratings, propeller sizes, and battery voltages.

If this value is set too low, your drone will descend when Altitude Hold is activated. If set too high, it will climb. An incorrectly configured hover throttle is the most common cause of unstable Altitude Hold behavior.

How to Find Your Drone’s Hover Throttle

1. Fly your drone in normal mode and find the throttle position where it hovers perfectly at a stable altitude — no climbing, no descending
2. Note the throttle percentage displayed in your radio or OSD
3. Convert this to a 1000–2000 microsecond value (50% throttle = 1500, 25% = 1250, 35% = 1350)
4. Enter this value in the CLI

set ap_hover_throttle = 1275
save

The value 1275 in this example corresponds to approximately 27.5% throttle — a typical hover point for a 5-inch freestyle quad. Your value will likely be different. A 3-inch cinewhoop might hover at 1350–1400 while a heavy long-range 7-inch build might hover at 1200–1250. Test and adjust in 25-point increments until Altitude Hold maintains a perfectly stable altitude.

Calibration Steps for Reliable Position Hold and Altitude Hold

Proper sensor calibration is essential when you setup position hold and altitude hold in Betaflight. Poor calibration is directly responsible for a large proportion of drifting, unstable, or non-activating GPS mode issues that pilots report. Take calibration seriously — a few minutes spent on accurate calibration can save hours of frustrating troubleshooting later.

Accelerometer Calibration

• Place your drone on a perfectly flat, level surface — use a spirit level if available
• Ensure the drone is completely still and not vibrating
• In Betaflight Configurator’s Setup tab, click “Calibrate Accelerometer”
• Wait for the confirmation message before moving the drone
• Repeat this calibration any time you change the drone’s physical configuration or if you notice unexpected tilt behavior in GPS modes

Compass Calibration (If Using Magnetometer)

• Take the drone to an open area away from metal structures, power lines, vehicles, and electronic equipment — all of which can cause magnetic interference that corrupts compass calibration
• Initiate compass calibration in Betaflight (or via the configurator if supported)
• Slowly rotate the drone through all three axes — roll 360 degrees, pitch 360 degrees, yaw 360 degrees — ensuring all orientations are represented during the calibration sequence
• Avoid performing compass calibration indoors, near reinforced concrete structures, or near your vehicle

How to Setup Position Hold in Betaflight Without a Compass — The Correct Flying Procedure

A significant number of pilots who want to setup position hold and altitude hold in Betaflight choose to do so without a magnetometer, and this is a completely valid approach. However, operating Position Hold without a compass requires a specific flying procedure to establish the GPS-derived heading that Betaflight needs to know which direction to correct position drift.

When no compass is available, Betaflight calculates the drone’s heading by analyzing GPS velocity data — specifically, by determining which direction the drone is physically moving and assuming that is the direction it is facing (forward). This approach works well when the drone is moving, but fails when the drone is stationary because there is no velocity data to analyze.

Correct Procedure for Position Hold Without Compass

1. Take off and fly in a straight line at moderate speed (not hovering in place) for at least 50–100 meters
2. Allow Betaflight to establish GPS velocity-derived heading during this forward flight phase
3. Activate Position Hold only after this forward flight phase
4. The OSD should display “POSH” (Position Hold active) rather than “POSHOLD FAIL”
5. If you see “POSHOLD FAIL”, fly forward again briefly and retry activation

OSD Setup for Position Hold Status Monitoring

Configuring your OSD (On-Screen Display) to show GPS and position hold status information is an important practical step when you setup position hold and altitude hold in Betaflight. Flying GPS modes without OSD feedback forces you to fly blind — you cannot tell whether Position Hold is actually active, how many satellites you have, or whether any error conditions exist.

In Betaflight’s OSD tab, add the following elements to your video feed for complete situational awareness during GPS flight modes:

• GPS Satellites: Shows current satellite count — you want to see 8 or higher before activating Position Hold
• GPS HDOP (Horizontal Dilution of Precision): Lower numbers indicate better GPS accuracy — aim for HDOP below 2.0
• Flight Mode Display: Shows the currently active flight mode — look for “POSH” when Position Hold is active and “ALTH” when Altitude Hold is active
• Altitude: Shows current altitude — useful for monitoring Altitude Hold performance
• GPS Speed: Helpful for monitoring unexpected drift during Position Hold

According to the official Betaflight GPS documentation, maintaining a minimum of 8 satellites with HDOP below 2.0 before activating Position Hold is the recommended threshold for reliable operation. Flying with fewer satellites or higher HDOP increases the risk of position drift and mode failures.

Common Problems and Fixes When You Setup Position Hold and Altitude Hold in Betaflight

Pro Tips for Better Performance When You Setup Position Hold and Altitude Hold in Betaflight

• Always wait for strong GPS lock before flying: Never activate GPS modes unless your OSD shows at least 8 satellites. Impatient activation with low satellite count is the leading cause of Position Hold failures and unexpected drone behavior.
• Mount the GPS module away from interference sources: Your VTX is one of the most significant sources of GPS interference on an FPV drone. Mount your GPS module as far from the VTX and its antenna as physically possible — ideally on an elevated mast or at the front of the frame.
• Test setup position hold and altitude hold in Betaflight in open areas first: Always validate your position hold and altitude hold configuration in a large, open outdoor area before using these modes near obstacles, people, or buildings. GPS modes can behave unexpectedly on first use, and you need space to manage any surprises safely.
• Use compass only if your specific use case requires it: Adding a compass introduces compass interference calibration challenges — particularly on carbon fiber frames near ESCs and motors. Unless you specifically need immediate Position Hold activation from a hover, starting without a compass produces a simpler, more reliable overall system.
• Never rely on GPS modes as your primary safety system: GPS Position Hold is a useful tool and genuine safety aid, but it is not infallible. GPS signal can be degraded or lost, satellite counts can drop unexpectedly, and atmospheric conditions can affect barometer accuracy. Always maintain the skills and attentiveness to fly manually if GPS modes disengage unexpectedly.
• Log your first GPS mode flights with Blackbox: Recording Blackbox data during your initial Position Hold and Altitude Hold test flights provides invaluable diagnostic information if problems occur. You can review exactly what sensors were reporting, what corrections Betaflight was making, and identify any calibration or configuration issues that are not visible during the flight itself.
• Keep your Betaflight firmware updated: GPS flight mode performance has improved significantly with each recent Betaflight release. Staying current with firmware updates directly benefits the quality and reliability of your position hold setup. Review the Betaflight release notes on GitHub for GPS-related improvements in each new version.

Final Thoughts — How to Setup Position Hold and Altitude Hold in Betaflight

Learning how to setup position hold and altitude hold in Betaflight is one of the most rewarding configuration projects available to FPV pilots in 2026. These features bridge the gap between the raw, manual flying experience that defines FPV and the autonomous stability assistance that consumer drones have offered for years — and having them available on your own custom-built FPV quad adds a genuinely new dimension to what you can do with your aircraft.

The setup process we have covered in this guide — hardware selection, GPS wiring, firmware configuration, calibration, mode assignment, and hover throttle tuning — covers every variable that determines whether your position hold and altitude hold setup works reliably or frustratingly. Follow each step methodically, test thoroughly before relying on these modes in demanding situations, and you will have a rock-solid GPS-assisted flight system on your FPV drone.

These features are not perfect yet — they will not match the refined, years-polished GPS performance of a DJI Mavic in every situation. But when configured correctly as described in this guide, they provide excellent safety backup capability, dramatically improve the ease of cinematic flying, and give you confidence in situations where hands-free hovering is genuinely valuable.

Use them wisely, test thoroughly before depending on them, and never let GPS assistance become a substitute for genuine manual flying skill. The best FPV pilot is one who can fly equally well with GPS modes enabled or disabled — and this guide gives you the foundation to build both capabilities confidently.

Mall of Aviation helps you build smarter FPV systems — not just fly them. Explore our complete guides on Betaflight configuration, GPS module selection, and FPV build optimization for everything you need to take your flying to the next level.

Frequently Asked Questions — Setup Position Hold and Altitude Hold in Betaflight

Can I setup position hold and altitude hold in Betaflight without GPS?

No — GPS is an absolute hardware requirement for Position Hold in Betaflight. There is no software workaround or alternative sensor combination that can substitute for GPS data in the Position Hold algorithm. Altitude Hold can technically function without GPS (using barometer data alone), but Position Hold requires GPS satellite lock. Without a GPS module physically connected and receiving a valid fix, Position Hold will never activate regardless of any software settings.

Is Betaflight Position Hold as stable as DJI camera drone position hold?

Not quite — DJI’s GPS hold system benefits from downward optical flow sensors, ultrasonic altitude sensors, and years of refined algorithm development that give it exceptional indoor and near-ground stability that Betaflight’s GPS-only system currently cannot match. However, for outdoor FPV flying at altitude with a good GPS fix, Betaflight’s Position Hold is genuinely useful and stable enough for practical applications including cinematic photography and safety backup during long-range flying.

Why is my drone drifting even with Position Hold active?

The most common causes of drift during active Position Hold are: insufficient satellite count (below 8 satellites), poor HDOP value (above 2.0 indicating low GPS accuracy), incorrect accelerometer calibration, or GPS module interference from nearby electronics. Work through these causes systematically — check your OSD satellite count and HDOP first, then recalibrate the accelerometer, then investigate GPS module placement if issues persist.

Can beginners use Position Hold and Altitude Hold in Betaflight?

Yes — with appropriate precautions. These modes are valuable tools for beginners, particularly as safety backups that can give you a moment to reorient yourself during a stressful situation. However, beginners should practice in large open areas well away from obstacles, people, and buildings during initial testing. Always maintain the ability to switch back to manual mode and fly conventionally if GPS modes behave unexpectedly.

Do I need a compass to setup position hold in Betaflight?

Not required, but beneficial for specific use cases. Without a compass, you must fly forward for 50–100 meters before activating Position Hold to establish GPS-derived heading. With a compass, Position Hold can be activated immediately from a stationary hover. For most pilots who fly primarily in forward flight before needing Position Hold, the without-compass approach works well and involves simpler setup. Enable the pos_hold_without_mag = ON CLI command to allow compassless operation.

What is the correct hover throttle value for my drone?

Hover throttle varies for every drone and must be measured from your specific build. Fly in normal mode and identify the throttle position where your drone hovers with no vertical movement. Convert that throttle percentage to a 1000–2000 microsecond value (e.g., 30% throttle = approximately 1300) and enter it with the CLI command: set ap_hover_throttle = [your value]. Test and adjust in 25-point increments. This calibration is critical for stable Altitude Hold performance.
