If you need to fix analog FPV video issues, you are in the right place. Despite the rise of digital FPV systems like DJI O4 Pro and Avatar HD, analog FPV video systems remain extremely popular among a significant portion of the FPV community in 2026. The reasons are compelling: analog systems offer ultra-low video latency that many pilots argue still provides a more reactive flying feel than digital, they are significantly more affordable to build and repair, they work with a wider variety of cameras and video transmitters, and the sheer number of analog components available in the market means replacement parts are always accessible and cheap.

However, analog video systems come with a well-known set of technical challenges that require careful diagnosis to fix. Unlike digital systems that either display perfect video or display nothing at all, analog systems can degrade in complex, frustrating ways — noise lines crawling across the screen, video rolling vertically or scrolling sideways, interference patterns that worsen when you increase throttle, and intermittent signal dropouts that make flying unreliable and potentially dangerous. For pilots who are new to analog systems, these symptoms can seem mysterious and difficult to fix.

The good news — which experienced analog FPV pilots know well — is that the vast majority of analog FPV video issues are not caused by broken hardware. They are caused by identifiable, fixable problems in power supply quality, wiring practices, grounding configuration, shielding, or component compatibility. Once you understand what each symptom indicates about the underlying cause, you can fix analog FPV video issues quickly and permanently.

In this comprehensive guide by Mall of Aviation, we walk through every common analog FPV video issue, explain what is actually causing each symptom at the electronic level, and provide step-by-step solutions that have been proven effective by experienced pilots in real builds. According to Oscar Liang’s comprehensive FPV video noise guide, the majority of analog video problems can be traced to just three root causes: power quality, grounding, and wiring — which is exactly the framework this guide follows.

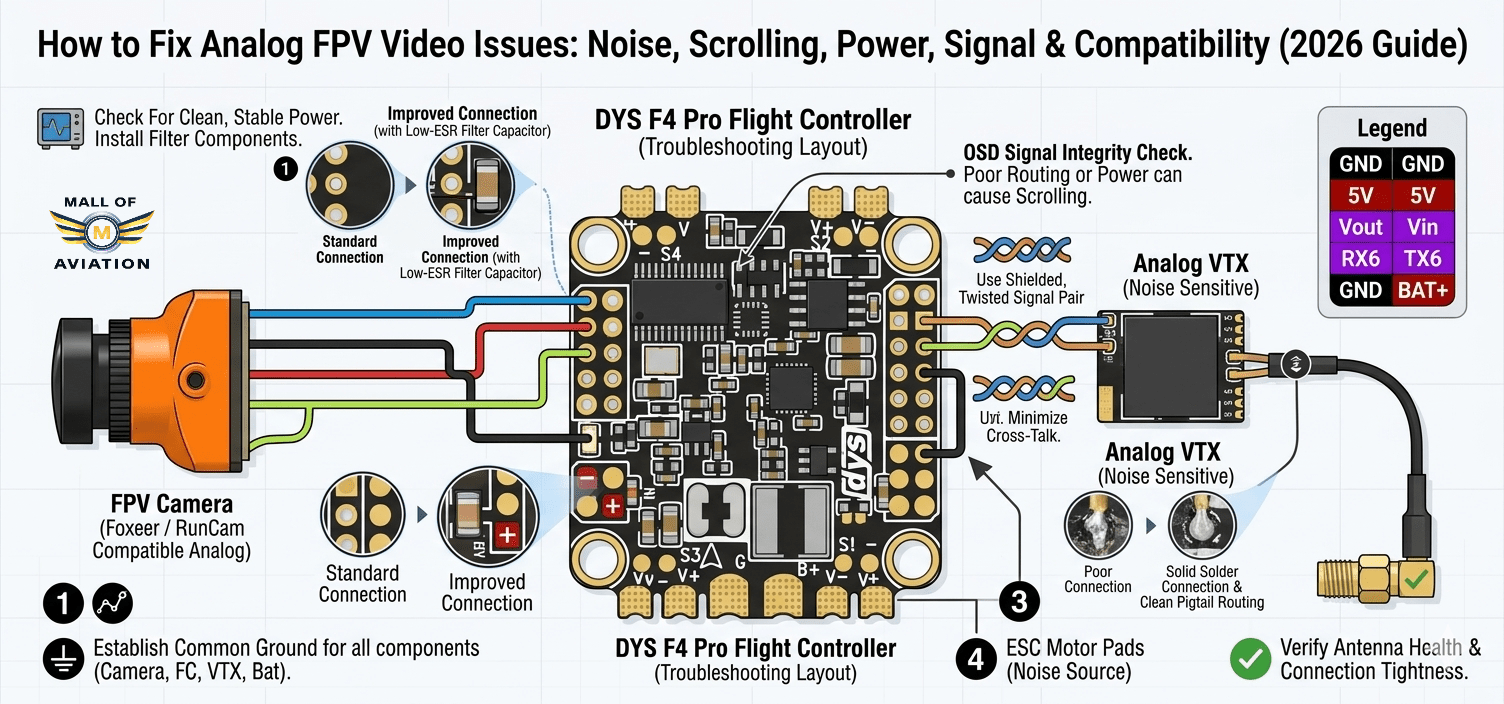

Understanding Analog FPV Video Systems Before You Fix Analog FPV Video Issues

Before diving into specific problems and solutions, it helps to understand how an analog FPV video system actually works — because understanding the signal chain makes it significantly easier to fix analog FPV video issues when they appear. Every symptom you see on screen is a direct reflection of something happening in this chain.

An analog FPV system consists of three primary components working together in sequence:

• FPV Camera: Captures the live image and outputs it as an analog composite video signal — a continuously varying electrical signal that encodes brightness and color information using voltage levels. The most common format is NTSC (480 lines, 60Hz) or PAL (576 lines, 50Hz). The camera requires a stable, clean power supply to output a clean signal. Any power instability here is one of the most common analog FPV video issues to fix.
• Video Transmitter (VTX): Receives the analog video signal from the camera and modulates it onto a radio frequency carrier wave — typically in the 5.8GHz band. The modulated RF signal is broadcast through the VTX antenna. VTX power output is measured in milliwatts (mW) and ranges from 25mW to 1000mW+ depending on the model and intended range.
• Video Receiver and Display: The video receiver on the ground (integrated into FPV goggles or as a standalone module connected to a monitor) picks up the RF signal, demodulates it back into analog composite video, and displays it. The quality of what you see depends on the quality of the signal at every stage of this chain.

Any disruption at any point in this chain — noise in the camera’s power supply, interference in the video signal wire between camera and VTX, poor antenna connection on the VTX, or interference at the receiver — produces visible artifacts in the displayed video. The character of those artifacts — white lines, black lines, rolling, scrolling, static — provides direct clues about exactly where in the chain the problem is occurring. Understanding this is the foundation of knowing how to fix analog FPV video issues effectively.

Fix Analog FPV Video Issues — Powering VTX and Camera Correctly

Incorrect or unstable power supply is the single most common root cause of analog FPV video issues, and addressing it is the first step when you want to fix analog FPV video issues permanently. Understanding why power quality matters so much requires a brief explanation of how motors and ESCs create electrical noise.

When your drone’s motors spin, the ESCs control them by rapidly switching current on and off at very high frequencies — this is called PWM (Pulse Width Modulation) switching, and it occurs thousands of times per second. Each switching event creates a brief voltage spike on the power system. These spikes propagate through the battery leads and power distribution to every component connected to the battery — including your FPV camera and VTX. When these voltage spikes reach your camera’s power input, they appear in the video output as noise lines, typically white or colored horizontal bands that move or flicker. This is one of the most widespread analog FPV video issues that pilots need to fix.

Most modern flight controller stacks include a built-in 5V and 9V BEC for exactly this purpose. Connect your camera and VTX to the BEC output pads on the flight controller rather than directly to the battery voltage pads. If your VTX requires a higher voltage than your BEC provides, use a dedicated DC-DC converter module that accepts battery voltage input and provides a filtered, regulated output at your required voltage.

The importance of voltage stability cannot be overstated — a clean, stable power supply eliminates a large percentage of analog FPV video issues without any other changes to the build. This single fix resolves the majority of noise-related analog FPV video issues that pilots encounter.

Add Capacitors to Fix Analog FPV Video Noise Issues

Even with a regulated BEC powering your video components, voltage spikes originating at the ESC can still cause analog FPV video issues by propagating through the shared power system. The most effective and widely used solution to fix analog FPV video issues caused by ESC noise is adding a low-ESR electrolytic capacitor directly across the main battery input pads of the ESC.

A capacitor stores electrical charge and releases it almost instantaneously to smooth out voltage fluctuations. When the ESC’s switching creates a voltage spike, the capacitor absorbs the excess charge — preventing it from propagating through the power system. When the switching creates a voltage dip, the capacitor releases its stored charge to fill the gap. The result is a significantly cleaner, more stable voltage on the power bus — which directly fixes analog FPV video issues caused by power noise.

Capacitor Specifications to Fix Analog FPV Video Issues

• Capacitance value: 470μF to 1000μF is the typical range for 5-inch FPV builds. Higher capacitance provides more filtering but adds more weight. 470μF is usually sufficient for most freestyle builds; 1000μF is better for larger, higher-current setups where analog FPV video issues are more severe.
• Voltage rating: The capacitor’s voltage rating must exceed your battery’s maximum voltage. For 4S LiPo (maximum 16.8V), use a 25V or 35V rated capacitor. For 6S (maximum 25.2V), use 35V minimum. Never use an underrated capacitor — it will fail and potentially cause a fire.
• ESR (Equivalent Series Resistance): Low-ESR capacitors respond faster to voltage transients. Look for capacitors specifically rated as “low ESR” — standard electrolytic capacitors work but low-ESR variants perform significantly better for fixing analog FPV video noise issues.
• Installation location: Solder the capacitor directly across the positive and negative battery input pads on the ESC or power distribution board — as close to these pads as physically possible. Longer leads between the capacitor and the pads reduce its effectiveness by adding inductance.
• Polarity: Electrolytic capacitors are polarized — the negative lead (marked with a stripe) must connect to the negative pad. Reversed polarity will destroy the capacitor immediately and potentially cause it to rupture.

Twist Signal and Ground Wires to Fix Analog FPV Video Issues

The video signal wire that runs from your FPV camera to your VTX is a low-voltage analog signal that is highly susceptible to electromagnetic interference (EMI) from the high-current power wires and motor phase wires that run nearby inside an FPV drone. Any interference picked up by the signal wire appears directly in the video output as noise — creating analog FPV video issues that can be difficult to trace if you do not know what to look for.

One of the most effective and easiest techniques to fix analog FPV video issues caused by EMI is twisting the signal wire together with its corresponding ground wire along their entire length. This technique — called twisted pair wiring — is a fundamental principle of signal integrity engineering used throughout the electronics industry.

The reason twisted pair wiring works to fix analog FPV video issues is elegant: when a signal wire and its ground wire are twisted together, any external electromagnetic field that induces a noise voltage in the signal wire simultaneously induces an equal and opposite voltage in the ground wire. These equal and opposite noise voltages cancel each other out at the receiver — a phenomenon called common-mode noise rejection. The tighter the twist, the more effective the cancellation.

For FPV builds, twist the camera signal wire and its ground wire together at approximately two twists per centimeter along the entire run from camera to VTX. Keep this twisted pair physically separated from high-current power wires and motor phase wires wherever possible — running them along opposite sides of the frame if the build geometry allows.

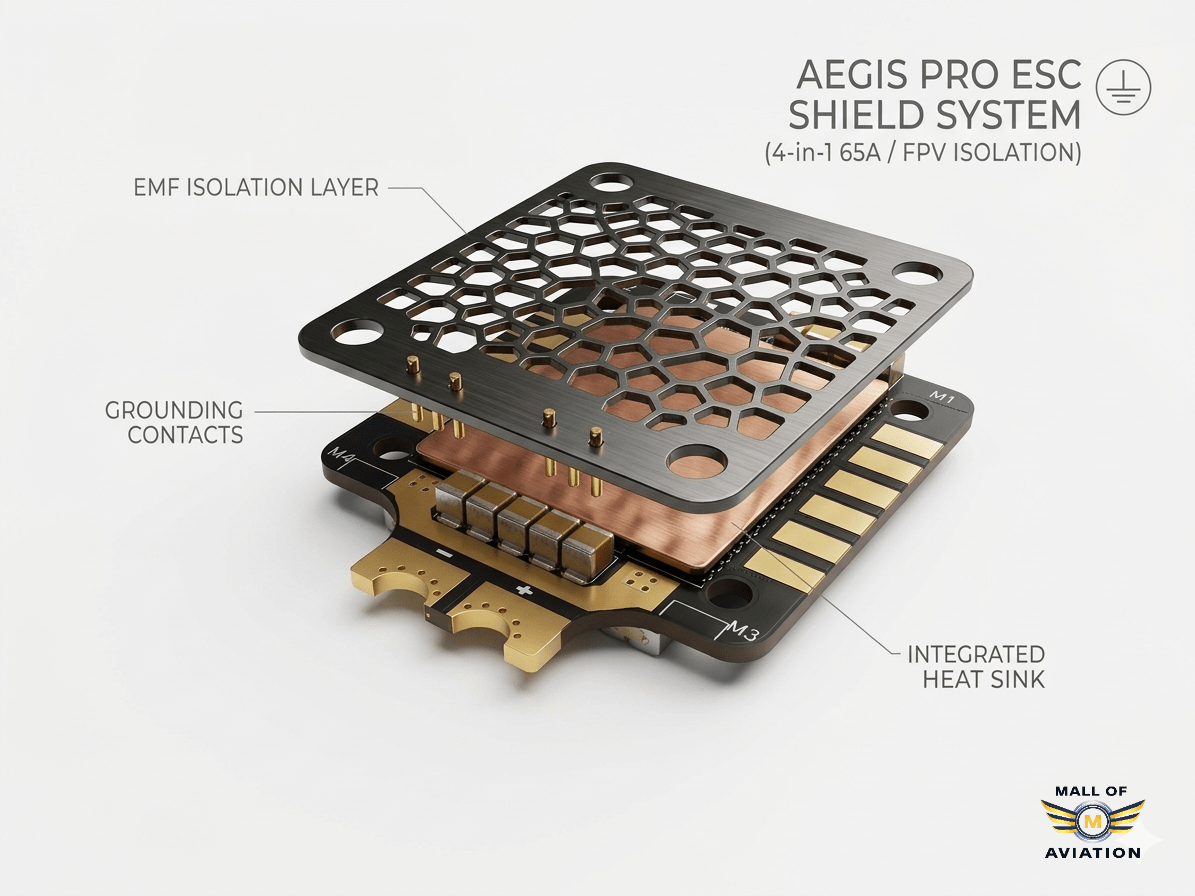

Shield the ESC from the Flight Controller to Fix Analog FPV Video Issues

The ESC stack generates intense high-frequency electromagnetic noise as a byproduct of its MOSFET switching operation. This noise radiates from the ESC in all directions and creates analog FPV video issues by being picked up by the flight controller’s gyroscope — causing tuning difficulties — and by signal wires running nearby, including the camera-to-VTX video wire.

In multi-layer stack builds where the ESC and flight controller are mounted directly above each other with only standoffs separating them, this electromagnetic coupling is especially problematic. Several approaches help fix analog FPV video issues caused by ESC radiation:

• Use an ESC with integrated EMI filtering: Premium ESCs from manufacturers like BLHeli_32 and AM32 often include on-board EMI filtering components. These reduce the amount of high-frequency noise the ESC radiates in the first place, addressing the root of these analog FPV video issues at their source.
• Increase stack separation distance: If your frame geometry allows, using longer standoffs between the ESC and flight controller layers increases the physical distance between the noise source and the sensitive flight controller components — reducing coupling by the inverse square law.
• Add an EMI shielding layer: A thin copper or aluminum foil layer placed between the ESC and flight controller, connected to the system ground, acts as a Faraday shield that blocks high-frequency electromagnetic radiation from passing between layers. This technique is used in professional electronics manufacturing and is one of the most effective ways to fix analog FPV video issues caused by inter-stack coupling.

Wrapping Signal Wire in Copper Tape to Fix Analog FPV Video Issues

For builds where analog FPV video issues persist despite BEC power, capacitors, and twisted pair wiring, adding a physical electromagnetic shield around the camera signal wire is the next escalation to fix analog FPV video issues. Copper tape — available inexpensively from electronics suppliers — can be wrapped around the signal wire to create a coaxial-cable-like shielding arrangement that provides very effective EMI protection.

The key principle when using copper tape to fix analog FPV video issues is that the copper shield must be connected to the system ground to function. An ungrounded copper shield simply acts as an antenna that picks up additional noise rather than blocking it. Connect one end of the copper tape shield to the nearest available ground pad on the flight controller or ESC. Do not connect both ends — a single-ended grounding prevents ground loops that can introduce new analog FPV video issues.

Proper Grounding — Why It Matters When You Fix Analog FPV Video Issues

Grounding problems are responsible for a category of analog FPV video issues that are particularly frustrating because they can be intermittent and difficult to reproduce consistently. Understanding why proper grounding matters is essential for anyone trying to fix analog FPV video issues at the root cause level.

An analog video signal is transmitted as a voltage level relative to a ground reference. The camera encodes image brightness information as voltages between approximately 0V and 1V relative to its ground. The VTX reads those voltage levels relative to its own ground to decode the image information. If the camera ground and the VTX ground are at different voltage potentials — a situation called a ground offset — the VTX misinterprets the signal levels and the result is noise, rolling, or complete loss of video. This grounding problem is one of the most commonly missed analog FPV video issues that pilots struggle to fix.

• Connect camera and VTX ground to the same ground pad: The most reliable approach to fix analog FPV video issues from grounding is to connect both the camera ground wire and the VTX ground wire to the same physical pad on the flight controller. This ensures both components share an identical ground reference with zero potential difference between them.
• Avoid floating grounds: A floating ground is one that is not connected to the main system ground — it is electrically isolated and its voltage potential can drift unpredictably. Any component with a floating ground in an analog video chain will produce noise or no signal — a classic analog FPV video issue that is easy to fix once identified.
• Use a star grounding topology for critical signal components: In a star ground configuration, all ground connections radiate from a single common point rather than daisy-chaining from one component to the next. This prevents ground currents from one component from flowing through another component’s ground path and creating new analog FPV video issues.

Fix Analog FPV Video Issues — White Lines Diagnosis and Solution

White horizontal lines moving through the video image are the classic signature of analog FPV video issues caused by electrical noise entering the video signal from the power system. The lines appear white because the noise voltages are positive spikes that push the video signal above its normal maximum level — which the camera and receiver interpret as maximum brightness.

The pattern of the lines provides diagnostic information about the noise source that helps you fix these analog FPV video issues precisely. Lines that increase in frequency or intensity when you increase throttle indicate motor or ESC switching noise. Lines that are present even at idle suggest power supply instability or a grounding issue. Lines that appear only when specific switches or modes are activated suggest those components are introducing noise at the activation moment.

Step-by-Step Process to Fix Analog FPV Video Issues — White Lines

1. Verify camera and VTX are powered from a regulated BEC, not directly from battery voltage
2. Add a 470μF–1000μF low-ESR capacitor across the main battery input pads of the ESC
3. Check all ground connections — ensure camera and VTX share a common ground point
4. Twist the camera signal wire with its ground wire along the entire run
5. If white lines persist, add copper tape shielding to the signal wire with proper grounding

Fix Analog FPV Video Issues — Black Lines Diagnosis and Solution

Black horizontal lines in the video image are the inverse symptom of white lines — they indicate negative voltage spikes or insufficient power delivery causing the video signal to drop below its normal minimum level, which the receiver interprets as minimum brightness (black). These are analog FPV video issues caused by power delivery rather than noise injection, and the fix approach is different.

The most common cause of these analog FPV video issues is insufficient current delivery from the BEC powering the camera or VTX. When the VTX briefly draws more current than the BEC can supply — which can happen during frequency channel switching or during high-power transmission moments — the voltage sags and the resulting dip appears as a black line in the video.

Solutions to Fix Analog FPV Video Issues — Black Lines

• Check BEC current rating: Verify the BEC you are using is rated for sufficient current to power both camera and VTX simultaneously. A VTX running at 600mW or 1000mW can draw 300–500mA alone. Add the camera’s current draw and ensure your BEC can deliver the total comfortably with headroom. Undersized BECs are responsible for more analog FPV video issues than most pilots realize.
• Add a small filter capacitor on the VTX power input: A 100μF capacitor directly on the VTX’s power input pins smooths out brief current demand spikes and prevents the voltage from sagging during high-demand moments — an effective way to fix this category of analog FPV video issues.
• Consider direct LiPo power with filtering: For high-power VTX units (600mW+), powering directly from battery voltage through a dedicated LC filter (inductor-capacitor filter) can provide more stable, higher-current power than a BEC that may be operating near its limit.

Check and Match Your Antennas to Fix Analog FPV Video Issues

Antenna problems are a frequently overlooked source of analog FPV video issues. Unlike power noise that shows up as lines or static, antenna-related analog FPV video issues typically manifest as weak signal across the entire image — static, reduced range, or complete loss of video at distances that should be comfortably within range. According to the RC Groups 5.8GHz antenna guide, antenna mismatch is responsible for a significant percentage of unexplained FPV video quality problems reported by pilots.

Connector Type Matching — SMA vs RP-SMA

The FPV community uses two physically similar but electrically incompatible connector types: SMA and RP-SMA (Reverse Polarity SMA). The difference is subtle — SMA connectors have the center pin on the male connector, while RP-SMA connectors have the center pin on the female connector — but the consequence is critical: connecting an SMA antenna to an RP-SMA VTX (or vice versa) results in the connectors physically mating but with no electrical contact between the signal pins. The VTX transmits into an effectively open circuit, producing extremely weak signal. This is one of the easiest analog FPV video issues to fix once identified — simply use the correct matching connector type.

Polarization Matching — RHCP vs LHCP

Circular polarized antennas come in right-hand circular polarization (RHCP) and left-hand circular polarization (LHCP) variants. Using an RHCP antenna on the VTX with an LHCP antenna on the receiver (or vice versa) causes a 3dB or greater signal loss due to polarization mismatch — creating analog FPV video issues that worsen progressively with distance. Always match polarization between transmit and receive antennas. The most common standard is RHCP for both — verify both antennas before blaming other components for poor range.

Physical Antenna Inspection to Prevent and Fix Analog FPV Video Issues

FPV drone crashes frequently damage VTX antennas — the antenna is typically the most exposed component on the airframe. Inspect your VTX antenna after every crash for physical damage including cracked antenna elements, bent or broken SMA connectors, and delaminated antenna structures. A visually damaged antenna should be replaced immediately — flying with a damaged antenna at high power can potentially damage the VTX’s final amplifier stage, creating much more serious and expensive analog FPV video issues to fix.

Flying With Others — Channel Management to Avoid Analog FPV Video Issues

When multiple FPV pilots fly in the same location simultaneously, channel interference is one of the most common analog FPV video issues to fix — and also one of the most preventable. Each pilot’s VTX transmits on a specific frequency channel within the 5.8GHz band. If two pilots transmit on the same channel or on channels that are too close in frequency, their signals interfere with each other — both pilots see degraded video with noise, rolling, or complete loss of their own feed.

The 5.8GHz FPV band is divided into multiple band groups (Raceband, Fatshark, Boscam A/B/E, etc.), each containing eight channels. Channels within the same band that are adjacent to each other have significant spectral overlap — meaning you cannot simply use adjacent channels without creating analog FPV video issues. The correct approach is to spread pilots across different bands and use band-channel combinations that have maximum spectral separation.

• For two pilots: Use channels R1 and R8 (first and last channels of Raceband) — these have maximum separation within the band and minimize analog FPV video issues from channel bleed.
• For three to four pilots: Use a frequency coordination chart to identify channels with at least 40MHz of separation between all pairs. A comprehensive channel frequency chart is available on the FPV Freedom Coalition frequency management page.
• Pitmode during preparation: Always keep your VTX in pitmode (ultra-low power output) while on the ground preparing to fly. Only activate full power immediately before launch. High-power ground transmission from multiple VTXs in close proximity is one of the most avoidable analog FPV video issues and can even damage nearby receivers.
• VTX power management: Use the minimum VTX power level needed for your flying distance. Flying at 25–100mW within 200 meters produces cleaner video with less spectral pollution than running 600mW at the same distance — preventing analog FPV video issues for yourself and your fellow pilots.

Fix Analog FPV Video Issues — The Jello Effect

The jello effect — a wavy, gelatinous distortion of the video image where vertical elements appear to wobble — is a distinct category of analog FPV video issues caused by vibration affecting the camera sensor during flight. It is a rolling shutter artifact: the camera sensor reads image data line by line from top to bottom, and if the camera is vibrating during this readout period, different lines capture the image at slightly different lateral positions — creating the characteristic wobble.

The jello effect is distinct from the electrical noise analog FPV video issues covered above — it is a mechanical problem, not an electrical one. Solutions to fix these analog FPV video issues address the vibration source or the camera’s mechanical isolation from that vibration:

• Check propeller balance: Unbalanced propellers create cyclic vibration at their rotation frequency — the most common source of jello-type analog FPV video issues. Use a prop balancer to verify each propeller is balanced before flying. Even brand-new props from reputable manufacturers occasionally ship with minor imbalances that cause jello.
• Inspect motor bearings: Worn or damaged motor bearings produce irregular vibration at all speeds. Spin each motor by hand (battery disconnected) and feel for roughness, grinding, or wobble. A motor that does not spin silently and smoothly on its bearings should be replaced to fix these analog FPV video issues at their mechanical source.
• Use soft-mounted camera: Mounting the camera on TPU (thermoplastic polyurethane) soft mounts isolates it from frame vibrations. TPU absorbs high-frequency vibration before it reaches the camera — significantly reducing jello-related analog FPV video issues even when some vibration is present in the frame.
• Check frame hardware tightness: Loose motor screws, frame standoffs, or camera mount hardware all create vibration resonance points that cause analog FPV video issues. Systematically check and tighten all hardware before flights, especially after crashes.

Fix Analog FPV Video Issues — Vertical Video Rolling

Vertical rolling — where the video image appears to continuously scroll upward or downward as if on a conveyor belt — is one of the most disorienting analog FPV video issues to experience during flight. It is caused by loss of vertical sync signal. In analog video, a synchronization pulse is transmitted between each frame to tell the receiver when one frame ends and the next begins. If the receiver cannot reliably detect this sync pulse, it loses track of where each frame starts and the image appears to roll continuously.

• Check signal wire integrity: A damaged, partially shorted, or high-resistance camera signal wire can degrade the sync pulse amplitude below the receiver’s detection threshold — causing these analog FPV video issues. Inspect the signal wire for kinks, abrasion damage, or bad solder joints at both the camera and VTX ends.
• Enable sync reconstruction on your receiver: Many modern FPV goggles and video receivers include a sync reconstruction or sync enhancement feature that uses DSP to reconstruct degraded or missing sync pulses. Enabling this feature in the receiver settings often fixes analog FPV video issues with vertical rolling caused by weak sync signals.
• Try a different video receiver module: Receiver modules with better sync detection sensitivity handle degraded signals more reliably. If vertical rolling analog FPV video issues occur only at range, a higher-sensitivity receiver module often resolves the issue without requiring any changes to the drone’s video system.

Fix Analog FPV Video Issues — Sideways Scrolling

Horizontal or sideways scrolling — where the image appears to shift left or right continuously — is another category of analog FPV video issues caused by a loss of horizontal sync signal. The analog video receiver cannot determine where each horizontal line starts, causing lines to be displayed at incorrect horizontal positions that change each frame.

• Camera NTSC/PAL mismatch: If your camera is outputting PAL format video but your receiver is set to NTSC (or vice versa), the horizontal timing is fundamentally incompatible and sideways scrolling analog FPV video issues result. Verify that camera and receiver are set to the same format — most modern systems support both but must be configured identically to fix this issue.
• Disable sync reconstruction: In cases of horizontal scrolling analog FPV video issues, the sync reconstruction feature on some receivers can interfere with correct horizontal sync detection. Try disabling sync reconstruction to see if the issue resolves.
• Swap the camera: Some FPV cameras have weak or incorrectly timed horizontal sync output that is incompatible with specific receivers. Testing with a different camera quickly determines whether the camera is the source of these analog FPV video issues.

Fix Analog FPV Video Issues — Black Screen Troubleshooting

A completely black screen with no image is the most alarming of all analog FPV video issues but is often caused by something simple. Work through this diagnostic sequence before assuming hardware failure when trying to fix analog FPV video issues of this type:

1. Check the lens cap: Sounds obvious, but a forgotten lens cap on the camera produces a perfectly black screen that looks identical to a hardware failure — one of the easiest analog FPV video issues to fix.
2. Verify the receiver is on the correct channel: If your VTX transmits on Raceband 3 but your receiver is tuned to Fatshark 5, you will see nothing. Systematically scan through all channels on your receiver to verify.
3. Check camera power: Verify the camera has power by checking for an LED indicator if present, or use a multimeter to confirm voltage at the camera’s power input pads. A camera with no power produces a black screen identical to signal loss — and is one of the most common fixable analog FPV video issues.
4. Verify VTX power and signal input: Check that the VTX has power and that the video signal wire from the camera is connected to the correct input pad. A VTX that is powered but receiving no signal from the camera may output a black carrier or a static screen depending on the model.
5. Test with a known-good component: Substitute the camera with a known-working camera to isolate whether the fault is in the camera or in the VTX/antenna/receiver chain. Component substitution is the most reliable way to fix analog FPV video issues when the cause is unclear.

Fix Analog FPV Video Issues — Video That Worsens on Throttle

If your analog FPV video is clean at idle but degrades noticeably when you increase throttle — developing noise lines, static, or rolling — this is one of the most diagnostic analog FPV video issues you can experience. The cause is almost certainly motor or ESC switching noise entering the power system under load. This is one of the most common analog FPV complaints and fortunately one of the most reliably fixable.

At idle or low throttle, motors draw minimal current and ESC switching frequency effects are relatively mild. As throttle increases, motor current draw rises dramatically — increasing the magnitude of switching noise spikes proportionally. If your filtering and power management are marginal, the increased noise at high throttle overwhelms the filtering and appears as analog FPV video issues that worsen progressively with throttle.

The solution sequence to fix analog FPV video issues that worsen on throttle is: first, verify BEC power for camera and VTX; second, add or upgrade the capacitor on the ESC battery pads; third, improve signal wire routing and twisting; fourth, check grounding. In the large majority of cases, addressing these four factors in order resolves throttle-dependent analog FPV video issues completely. This step-by-step approach is also recommended by Betaflight’s official FPV video noise wiki as the standard diagnostic sequence.

Final Thoughts — How to Fix Analog FPV Video Issues Systematically

Analog FPV systems reward pilots who understand them. Unlike digital systems where problems are binary — either working or not — analog systems communicate the nature of their problems through the character of the video artifacts they produce. White lines, black lines, rolling, scrolling, jello, and signal loss all have specific causes that point directly to specific solutions. Once you understand this language, you can fix analog FPV video issues quickly and confidently.

The principles covered in this guide — clean regulated power, proper capacitor filtering, twisted pair signal wiring, correct grounding, antenna matching, and careful shielding — address the root causes of virtually every common analog FPV video issue. Most pilots who apply these principles systematically to fix analog FPV video issues achieve clean, stable video that rivals digital systems in consistency, with the latency advantage that makes analog compelling for performance flying.

Start with power quality — it fixes the majority of analog FPV video issues. Then work through wiring, grounding, and shielding progressively. Test after each change so you can confirm improvement and identify any remaining issues clearly. With patience and methodical troubleshooting, fixing all analog FPV video issues and achieving a clean, stable video feed is reliably achievable on any well-built drone.
