How to Choose ExpressLRS Receiver: Frequency, Diversity, Gemini and Compatibility (2026 Guide)

ExpressLRS (ELRS) has quickly become the most popular radio link system in FPV due to its low latency, long range, and affordability. However, with so many receiver options available, knowing how to choose ExpressLRS receiver can be overwhelming for both beginners and experienced pilots. The wrong choice can lead to poor range, signal dropouts, or unnecessary weight on your drone. In this complete guide from Mall of Aviation, we break down everything you need to know — from frequency selection to Gemini mode — so you can confidently learn how to choose ExpressLRS receiver that perfectly matches your needs.

2.4GHz vs 900MHz: Which Frequency to Choose When You Choose ExpressLRS Receiver

One of the first decisions you will make when learning how to choose ExpressLRS receiver is selecting the right frequency. ExpressLRS receivers come in two main frequency bands: 2.4GHz and 900MHz. Each has its own strengths and weaknesses.

2.4GHz ExpressLRS Receivers (Most Popular)

• Compact antennas: 2.4GHz antennas are small and lightweight, making them ideal for freestyle drones, tiny whoops, and racing quads where weight matters.
• Great range: A properly configured 2.4GHz ELRS receiver can easily achieve 10-20km range, which is more than enough for 95% of pilots.
• Supports more pilots simultaneously: 2.4GHz band has more available channels, making it better for race events with many pilots flying together.
• Perfect for freestyle and racing: Low latency and fast refresh rates make 2.4GHz the preferred choice for aggressive flying.
• Better penetration through foliage: 2.4GHz actually handles multipathing better than 900MHz in many environments.

When you how to choose ExpressLRS receiver for freestyle or racing, 2.4GHz is almost always the correct answer.

900MHz ExpressLRS Receivers (Long Range Specialist)

• Better penetration through solid obstacles: 900MHz signals travel through trees, buildings, and terrain more effectively than 2.4GHz.
• More reliable for long-range flying: If you plan to fly 20km+ or through dense forest, 900MHz offers extra peace of mind.
• Larger antennas: The downside is that 900MHz antennas are significantly larger and heavier, which can be problematic for small drones.
• Lower refresh rates: 900MHz cannot achieve the same packet rates as 2.4GHz, but this is rarely noticeable for long-range cruising.

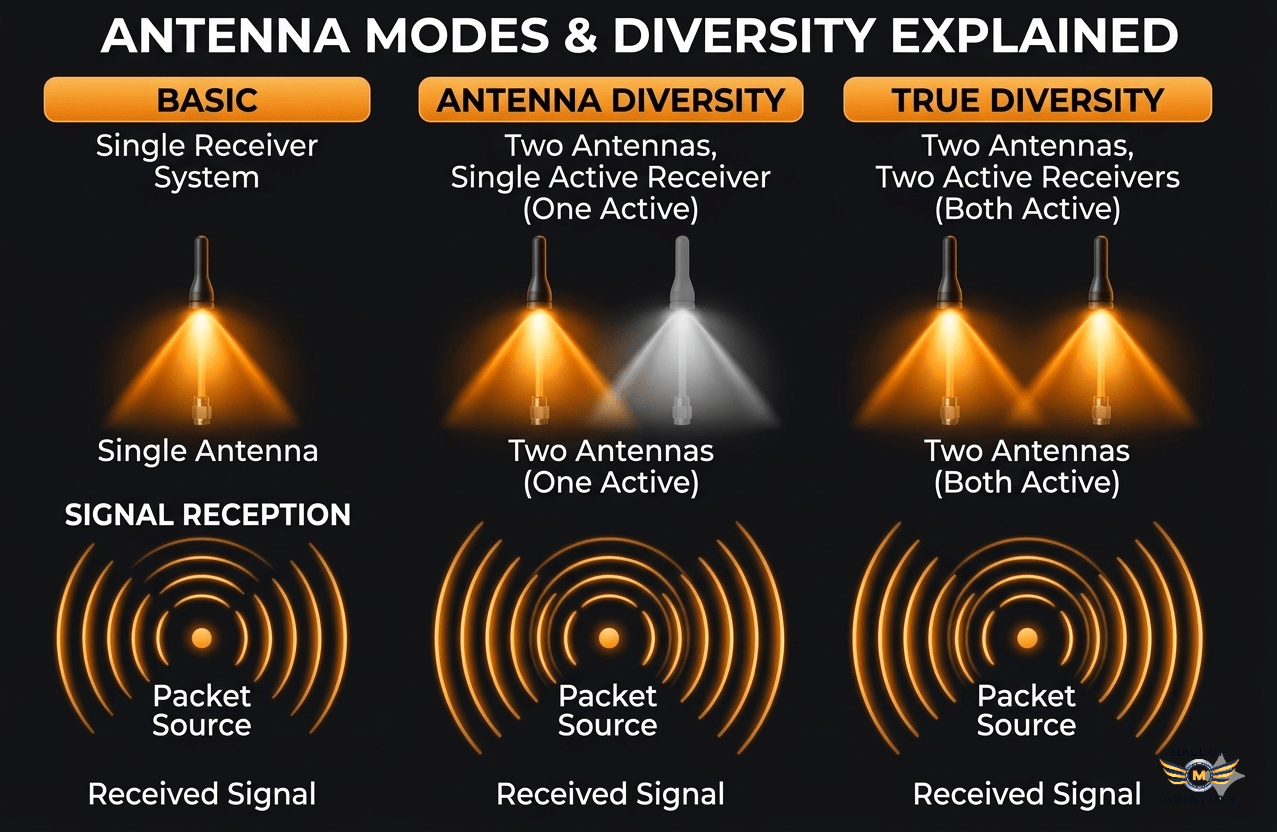

Antenna Modes and Diversity: Key Factors When You Choose ExpressLRS Receiver

Understanding antenna modes is crucial when you how to choose ExpressLRS receiver for your specific application. Different modes offer different levels of signal reliability and range.

Basic Mode (Single Antenna)

Basic mode is the simplest configuration. The transmitter sends one signal at a time using a single antenna on the receiver. This mode works perfectly for most freestyle and racing setups. When you how to choose ExpressLRS receiver for a lightweight build, a basic single-antenna receiver is often the best choice.

• Lowest cost
• Lightest weight
• Perfect for tiny whoops and small quads
• Range is still excellent (10km+ in open areas)

Antenna Diversity

Diversity receivers have one RF chip but two antennas. The receiver automatically switches between the two FPV antenna systems to use whichever one has the stronger signal. This helps reduce signal dropouts caused by antenna orientation or multipathing.

• 1 RF chip + 2 antennas
• Automatically switches to the best signal
• Reduces signal dropouts during acrobatic maneuvers
• Minimal weight increase over single antenna

When you how to choose ExpressLRS receiver for freestyle where you will be doing rapid rolls and flips, diversity is highly recommended.

True Diversity (2 RF Chips)

True diversity is the ultimate in signal reliability using high-quality FPV antennas. These receivers have two independent RF chips and two antennas, processing both signals simultaneously. This provides the best possible link quality but comes at a higher cost and power consumption.

• 2 RF chips + 2 antennas
• Processes both signals simultaneously (no switching delay)
• Best reliability and range
• Required for Gemini mode (more on that below)
• Higher power consumption and cost

Gemini Mode and Gem-X: Next-Level Link Reliability

If you want the absolute best link reliability, understanding Gemini mode is essential when you how to choose ExpressLRS receiver for high-end builds.

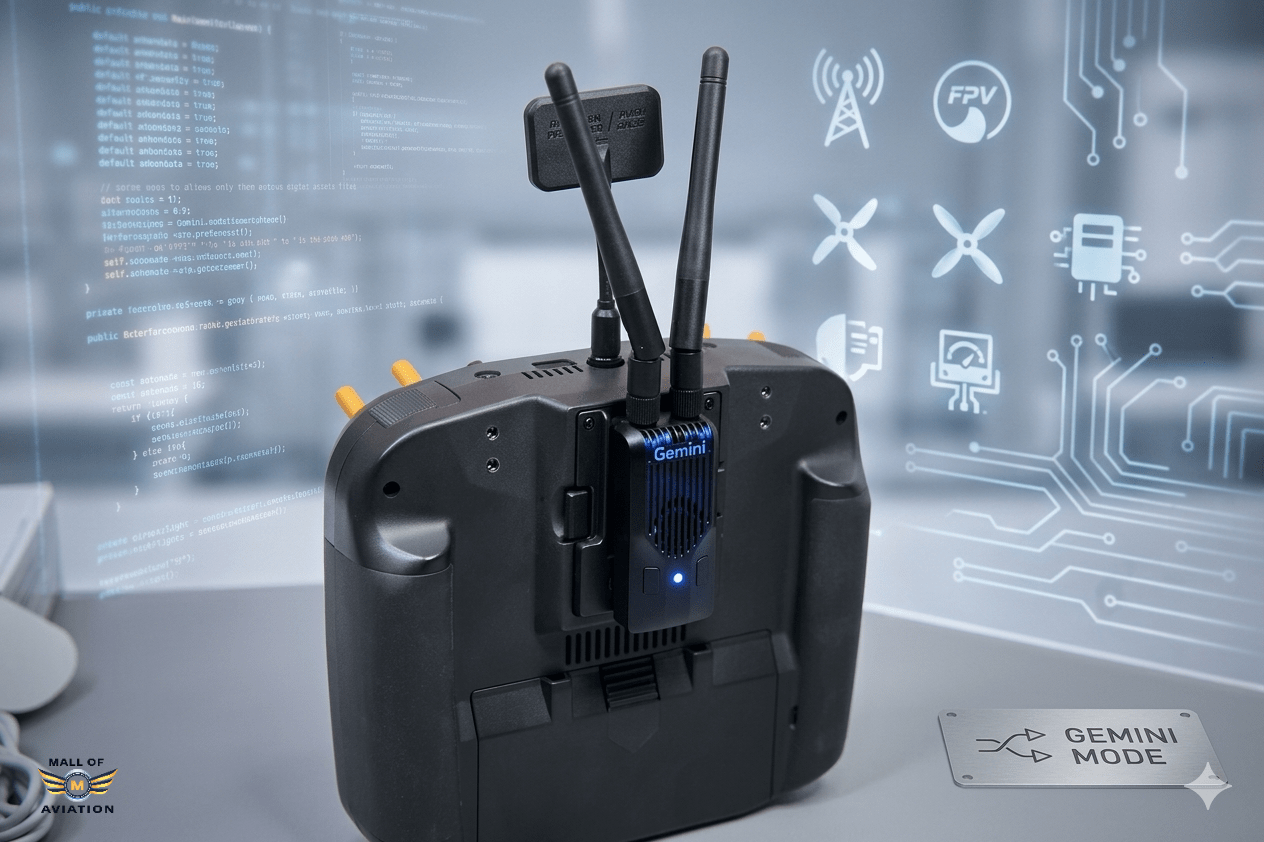

Gemini Mode

Gemini mode uses two antennas on the transmitter to send duplicate signals on slightly different frequencies. This provides frequency diversity, meaning if one frequency experiences interference, the other signal may still get through.

• Uses two antennas on the transmitter
• Sends duplicate signals on different frequencies
• Improved reliability in noisy RF environments
• Reduced interference from other pilots or Wi-Fi
• Requires a true diversity receiver (2 RF chips)

When you how to choose ExpressLRS receiver for flying in urban areas or at race events with many pilots, Gemini mode can provide noticeable improvements in link stability.

Gemini Xrossband (Gem-X)

Gem-X is the most advanced version of Gemini. It transmits on both 2.4GHz and 900MHz simultaneously using a dual-band FPV radio controller or transmitter module. This provides the ultimate redundancy because even if one entire frequency band is completely blocked, the other band continues to work.

• Transmits on both 2.4GHz and 900MHz simultaneously
• Maximum possible redundancy
• Best for extreme long-range (30km+)
• Requires a dual-band receiver (LR1121 chip)
• Higher cost and complexity

Understanding Receiver Hardware: What to Look For

When you how to choose ExpressLRS receiver, understanding the hardware components will help you make an informed decision. Here are the key components to consider:

RF Chip (The Heart of the Receiver)

• SX1281: The standard 2.4GHz RF chip. Excellent performance for most applications. Used in the vast majority of 2.4GHz ELRS receivers.
• SX1276: The standard 900MHz RF chip. Good for long-range but cannot achieve the same packet rates as 2.4GHz.
• LR1121: The dual-band RF chip. Can operate on both 2.4GHz and 900MHz. This is the best option for Gemini X and ultimate flexibility.

PA and LNA (Power Amplifier and Low Noise Amplifier)

• PA (Power Amplifier): Boosts the telemetry signal from your drone back to your transmitter. Higher PA power means more reliable telemetry data with GPS tracking (battery voltage, RSSI, GPS coordinates) at longer ranges.
• LNA (Low Noise Amplifier): Improves the receiver’s sensitivity, allowing it to pick up weaker signals from the transmitter.

When you how to choose ExpressLRS receiver for long-range flying, look for receivers with both PA and LNA for the best telemetry range.

TCXO (Temperature Compensated Crystal Oscillator)

TCXO provides stable frequency reference regardless of temperature changes. Without TCXO, temperature fluctuations can cause frequency drift, potentially leading to signal loss. When you how to choose ExpressLRS receiver for extreme environments (hot summers or cold winters), TCXO is highly recommended.

Telemetry Power

Telemetry power determines how far your receiver can send data back to your transmitter. Typical telemetry power ranges from 10mW to 500mW.

• 10-25mW: Standard for most receivers. Fine for 5-10km range.
• 50-100mW: Better for medium-range flying.
• 250-500mW: Best for long-range where you need reliable telemetry at 15km+.

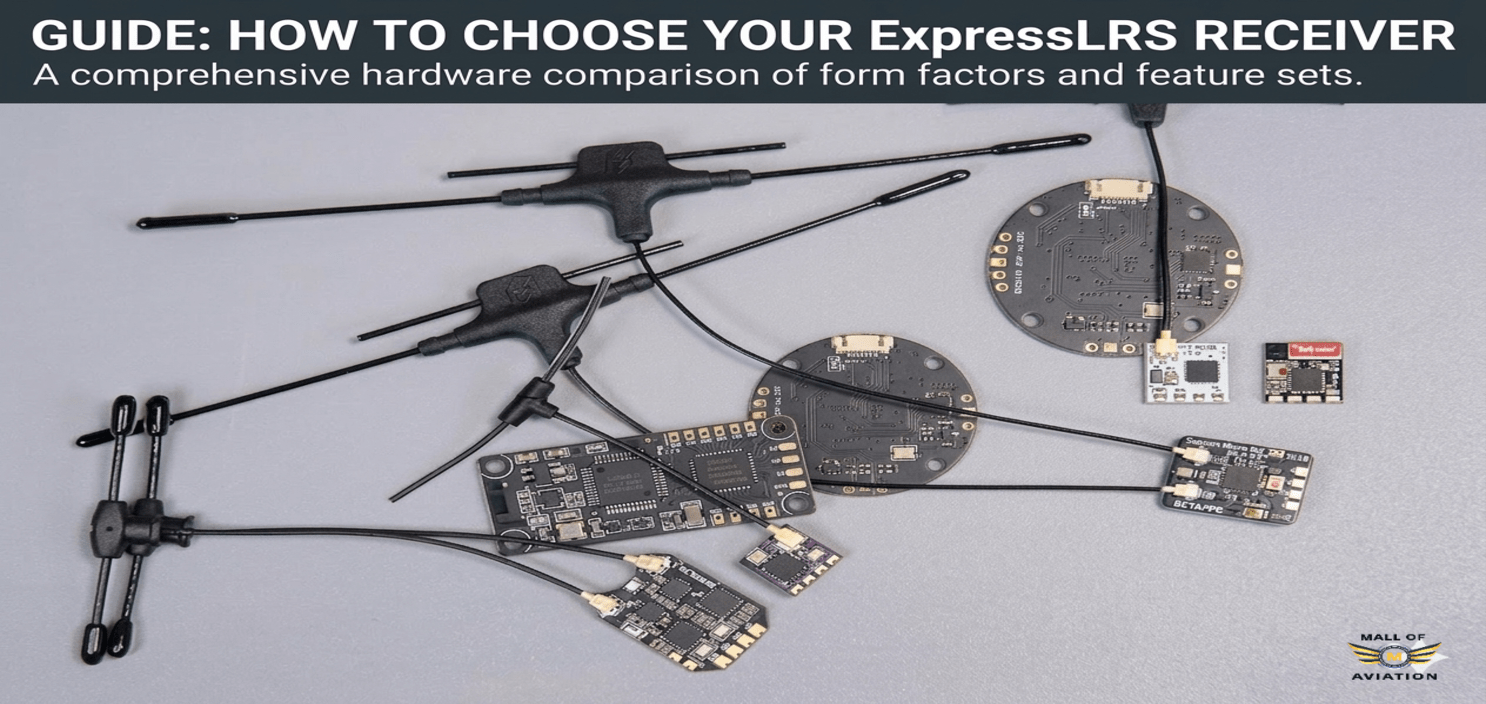

Types of ExpressLRS Receivers

When you how to choose ExpressLRS receiver, you will encounter several different form factors and types. Here is what each type is best for:

1. Standard UART Receivers

These are the most common ExpressLRS receivers used in FPV drones. They connect to your flight controller via UART (using TX and RX pads). They come in various sizes from full-size (for 5-inch quads) to nano (for tiny whoops).

• Best for: All FPV drones from tiny whoops to 7-inch long-range
• Connection: UART (CRSF protocol)
• Features: Lightweight, small form factor

2. PWM Receivers

PWM receivers have individual output pins for each channel. These are designed for fixed-wing aircraft, helicopters, and ground vehicles that use standard servos.

• Best for: Fixed-wing aircraft, RC cars, boats
• Connection: Direct servo connections (PWM)
• Features: Multiple channel outputs, larger size

3. Integrated Receivers (Built into Flight Controller)

Many tiny whoop flight controllers come with an ExpressLRS receiver built directly onto the board. These are the lightest and most compact option.

• Best for: Tiny whoops, micro drones (1S-2S)
• Connection: Integrated directly on FC
• Features: Extremely lightweight, no wiring needed

4. Antenna Types: External vs Onboard

• External antennas: These have a connector (usually IPEX or U.FL) for an external antenna. They offer better range because you can position the antenna optimally. Best for larger drones where weight is not critical.
• Onboard (ceramic) antennas: The antenna is printed directly on the receiver circuit board. These are very compact and durable but have shorter range. Best for tiny whoops and small micro drones.

When you how to choose ExpressLRS receiver for a tiny whoop, an onboard antenna receiver is fine. For a 5-inch freestyle drone, always choose a receiver with an external antenna connector for the best range.

Compatibility Guide: What Works With What

Understanding compatibility is critical when you how to choose ExpressLRS receiver. Not all receivers work with all transmitters. Here are the compatibility rules:

• Frequency must match: A 2.4GHz receiver will only work with a 2.4GHz transmitter module. A 900MHz receiver will only work with a 900MHz transmitter module. Dual-band receivers (LR1121) work with both but require compatible transmitter firmware.
• Firmware version must match: Your receiver and transmitter must be on the same major firmware version (e.g., both on 3.x). Always update both to the latest stable release.
• Binding phrase: Using a binding phrase (same on both TX and RX) makes binding automatic and ensures compatibility.
• Gemini mode requires true diversity receiver: If you enable Gemini mode on your transmitter, your receiver must have true diversity (2 RF chips). Single-antenna or standard diversity receivers will fall back to basic mode.

How to Choose ExpressLRS Receiver Based on Your Flying Style

Now that you understand all the technical details, here is a practical guide on how to choose ExpressLRS receiver based on what type of flying you do most often.

For Freestyle and Racing (Most FPV Pilots)

• Frequency: 2.4GHz
• Antenna mode: Single antenna or diversity (diversity is nice but not required)
• Gemini: Not needed
• Recommended receiver: HappyModel EP1/EP2, RadioMaster RP1, or BetaFPV SuperP
• Why: These receivers are lightweight, affordable, and offer more than enough range for freestyle (5-10km).

For Medium Range / Bando Bashing (2-5km with obstacles)

• Frequency: 2.4GHz
• Antenna mode: Diversity (recommended) or true diversity
• Gemini: Optional but helpful in high-interference environments
• Recommended receiver: RadioMaster RP3 (diversity), HappyModel EP2 Dual (diversity), or Matek Diversity ELRS-R24-D
• Why: Diversity helps reduce dropouts when flying behind buildings or through trees.

For Long Range (10km+ flying)

• Frequency: 2.4GHz (for most) or 900MHz (for extreme range through obstacles)
• Antenna mode: True diversity required for best results
• Gemini: Recommended for maximum reliability
• TCXO and LNA: Essential
• Recommended receiver: Matek Diversity ELRS-R24-D (with TCXO), HappyModel ES900RX (for 900MHz), or dual-band receivers for Gem-X
• Why: Long-range flying demands the best possible link reliability. TCXO prevents frequency drift, LNA improves sensitivity, and diversity ensures signal redundancy.

For Tiny Whoops and Micro Drones (1S-2S)

• Frequency: 2.4GHz
• Antenna mode: Single antenna with onboard (ceramic) antenna
• Gemini: Not needed
• Recommended receiver: HappyModel EP2 (with onboard antenna), BetaFPV Lite Receiver, or integrated receiver on AIO flight controller
• Why: Tiny whoops need the lightest possible components. Onboard antenna receivers weigh under 1 gram and are perfect for micro builds.

For Fixed-Wing and Gliders

• Frequency: 2.4GHz (for most) or 900MHz (for very long-range gliders)
• Antenna mode: Diversity recommended
• Gemini: Optional for long-range gliders
• Receiver type: PWM receiver (for servo outputs)
• Recommended receiver: RadioMaster ER8 (8-channel PWM), Matek ELRS-PWM, or HappyModel PP series
• Why: Fixed-wing aircraft use servos that require PWM outputs. Standard UART receivers cannot connect directly to servos.

Frequently Asked Questions About How to Choose ExpressLRS Receiver

Final Thoughts: Choose ExpressLRS Receiver with Confidence

Learning how to choose ExpressLRS receiver doesn’t have to be complicated. Start with your flying style, then pick the frequency and features accordingly. For most freestyle and racing pilots, a simple 2.4GHz diversity receiver is more than enough — it offers excellent range, small antennas, and great reliability at an affordable price.

If you are pushing the limits with long-range flying (10km+), invest in a receiver with TCXO, LNA, true diversity, or even Gemini mode. These features provide the extra peace of mind you need when your drone is miles away. For tiny whoops and micro drones, prioritize weight above all else — onboard antenna receivers or integrated FC receivers are the way to go.

Remember, your radio link is the most critical part of your FPV system. A poor receiver choice can lead to failsafes, lost drones, and frustration. Invest wisely, and your radio link will never be the weak point in your FPV setup.
