Don’t Forget to Load RC Link Preset in Betaflight: Complete 2026 Guide

If your FPV drone build and setup feels jittery, noisy, or unstable during stick movements, the problem might not be your PID tuning—it could be your RC link settings. One of the most overlooked steps in Betaflight setup is loading the correct rc link preset in betaflight. This simple step can dramatically improve flight performance, especially when using ExpressLRS receiver system. In this comprehensive guide by Mall of Aviation, we will explain why rc link preset in betaflight matters, how it affects feedforward, and how to set it up correctly for the smoothest possible flying experience.

Why Do You Need RC Link Preset in Betaflight?

Your FPV radio controller sends a signal to your drone in discrete packets rather than a continuous stream. This means your stick input is not perfectly smooth—instead, it updates in small steps at each packet interval. Understanding why rc link preset in betaflight is essential starts with understanding how your RC link works.

Different FPV receivers and RC link systems operate at different packet rates:

• 50Hz: Slower updates, larger steps between packets
• 250Hz: Medium update rate, commonly used for ExpressLRS
• 500Hz: Fast updates, smaller steps, more responsive feel
• 1000Hz: Ultra-fast updates, near-continuous feel (ExpressLRS only)

Instead of a smooth, continuous input curve, your RC signal looks like a staircase—a series of discrete steps. This staircase pattern is what causes problems for Betaflight’s feedforward system, and it is precisely why loading the correct rc link preset in betaflight is so important.

The Real Problem: Feedforward Spikes and Oscillations

Betaflight uses Feedforward to react quickly to stick movements. Feedforward is a powerful feature that improves responsiveness by adding a direct input to the PID controller based on stick movement speed. However, this creates a critical interaction with your RC link that the rc link preset in betaflight addresses.

Here is the problem with step-based RC signals:

• Feedforward reacts to changes in signal: It looks at how fast your stick is moving and adds correction accordingly.
• Step signals create sudden jumps: When a new packet arrives, the position jumps from the previous value to the new value instantly.
• These jumps cause feedforward spikes: The sudden change is interpreted as extremely fast stick movement, creating a massive feedforward spike that the rc link preset in betaflight is designed to eliminate.

The results of ignoring rc link preset in betaflight are immediately noticeable in flight:

• Jittery movement: Small, rapid oscillations during stick inputs
• Motor noise: Motors sound rough and produce excess heat
• Oscillations during flight: Visible shaking in your HD footage or FPV feed
• Poor tracking: The drone doesn’t follow your inputs smoothly

How Betaflight Solves This: RC Smoothing

To fix the step-signal problem, Betaflight applies RC smoothing. This is exactly what the rc link preset in betaflight configures for you. RC smoothing works like a low-pass filter on your stick inputs:

• Smooths out step signals: Interpolates between packet updates to create a continuous curve
• Reduces sudden changes: Prevents the instantaneous jumps that cause feedforward spikes
• Matches filter to packet rate: The smoothing algorithm must be tuned to your specific packet rate for optimal results, which is why the rc link preset in betaflight is essential

When you apply the correct rc link preset in betaflight, the result is transformative:

• Smoother control: Stick movements translate directly to smooth drone motion
• Less motor noise: Motors run quieter and cooler
• Better flight stability: No more unexpected oscillations or jitter
• Cleaner feedforward: Feedforward works as intended without spikes

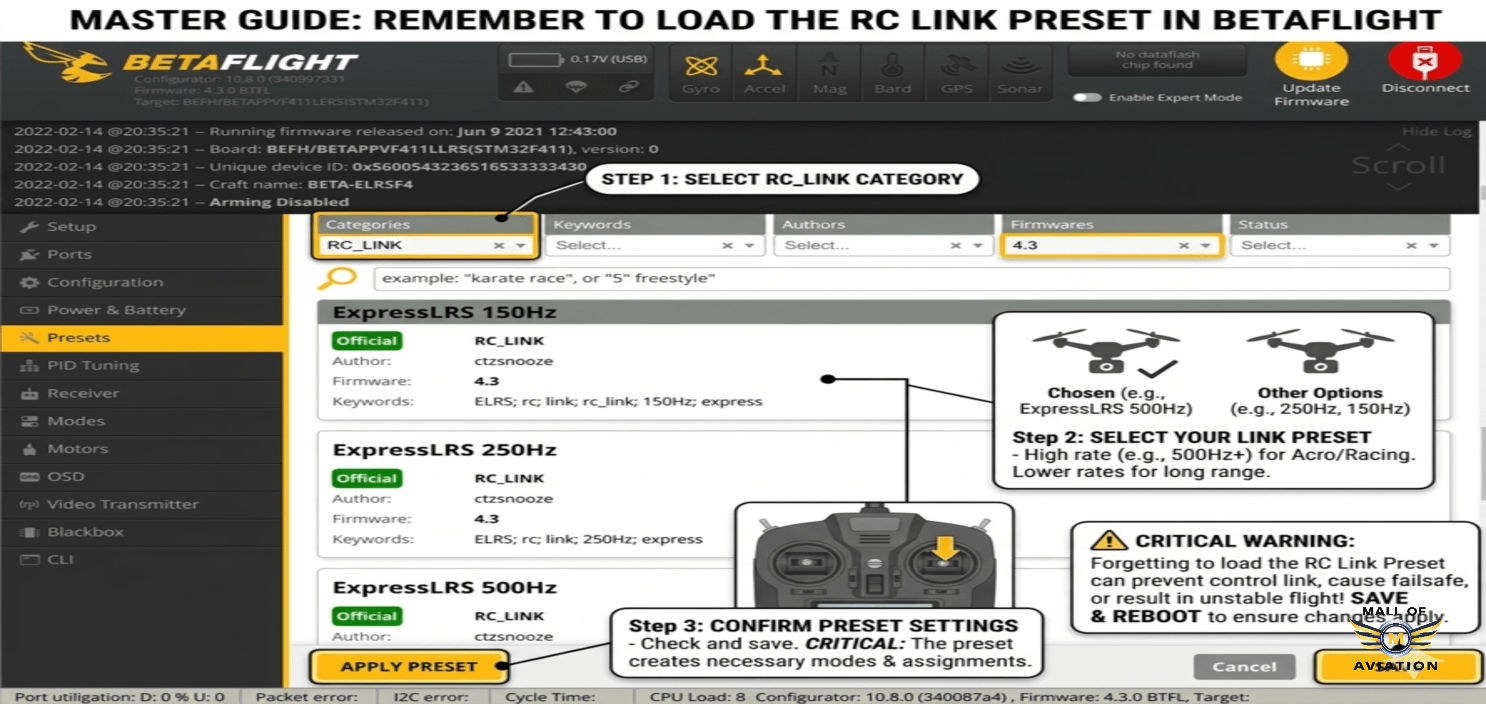

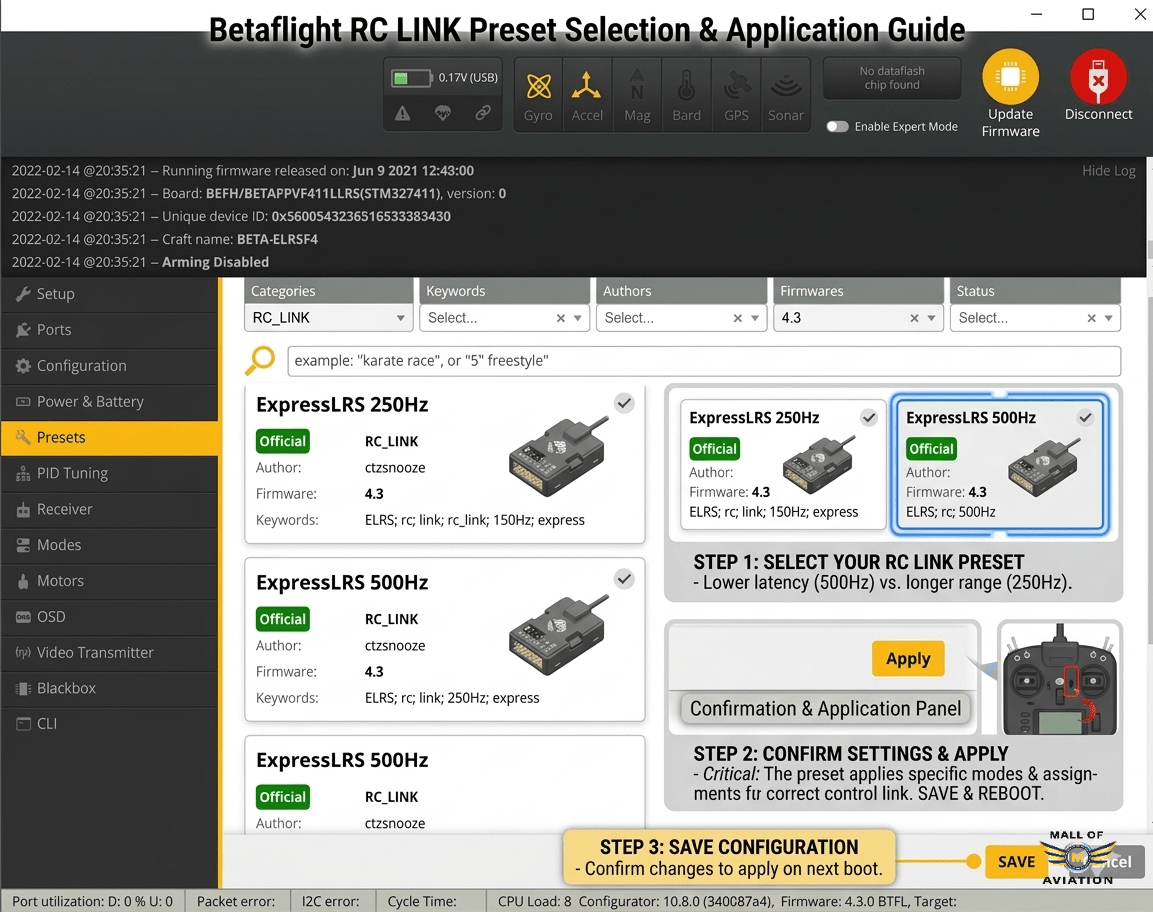

How to Apply RC Link Preset in Betaflight

Applying the correct rc link preset in betaflight is simple and takes less than one minute. Follow these steps carefully:

1. Open Betaflight Configurator and connect your flight controller.
2. Navigate to the Presets Tab – This is where Betaflight stores pre-configured settings for various hardware and use cases, including the rc link preset in betaflight options.
3. Search for your RC link type – Type “expresslrs” if you are using ExpressLRS, or “crossfire” for TBS Crossfire. The rc link preset in betaflight is categorized by protocol.
4. Select the preset that matches your packet rate – Look for options like “ExpressLRS 250Hz,” “ExpressLRS 500Hz,” or “ExpressLRS 1000Hz.”
5. Click Apply and confirm. The rc link preset in betaflight will load instantly.
6. Save your configuration and test fly your FPV drone setup to feel the difference.

Understanding Packet Rates and Preset Selection

Choosing the correct rc link preset in betaflight requires understanding your ExpressLRS or Crossfire packet rate. Here is a breakdown of common packet rates and their characteristics:

ExpressLRS Packet Rates

• 25Hz: Maximum range, slowest response. Use for long-range cruising where responsiveness is less critical. Apply the 25Hz rc link preset in betaflight for this setting.
• 50Hz: Good balance of range and responsiveness. Common for mid-range flying.
• 100Hz: Standard freestyle rate. Excellent responsiveness with good range.
• 250Hz: Very responsive, ideal for freestyle and racing. This is the most popular ExpressLRS packet rate, and the matching rc link preset in betaflight is widely used.
• 500Hz: Extremely responsive, minimal latency. Best for racing and aggressive freestyle.
• 1000Hz: Ultra-low latency, near-instant response. Requires good hardware and is best for competitive racing.

TBS Crossfire Packet Rates

• 50Hz: Default Crossfire rate. Good range and reliability.
• 150Hz: More responsive, slightly reduced range.
• 250Hz: Maximum responsiveness for Crossfire. Best for racing.

Once you know your packet rate, finding the matching rc link preset in betaflight in the Presets tab is straightforward. The preset names clearly indicate the supported packet rate.

Common Mistakes to Avoid with RC Link Preset

Even experienced pilots sometimes make these mistakes when configuring their rc link preset in betaflight. Here is what to watch for:

• Forgetting to apply the preset entirely: Many pilots set up their RC link, bind their receiver, and never apply the rc link preset in betaflight. This leaves RC smoothing at default values that may not match your packet rate.
• Using the wrong packet rate preset: Applying a preset for 500Hz when you are running 250Hz can cause over-smoothing and sluggish feel.
• Changing ExpressLRS settings without updating the preset: If you change your packet rate in the ExpressLRS Lua script, you must reapply the corresponding rc link preset in betaflight.
• Ignoring feedforward tuning issues: Some pilots try to fix feedforward spikes by reducing feedforward strength, which masks the problem rather than solving it. The correct rc link preset in betaflight addresses the root cause.
• Applying the preset but not saving: Always click “Save” after applying any preset to ensure settings persist after reboot.
• Using an outdated Betaflight version: Older versions of Betaflight may not have the latest rc link preset in betaflight options. Update to the latest release for best results.

Pro Tips for Best RC Link Performance

To get the most out of your rc link preset in betaflight configuration, follow these pro tips from experienced FPV pilots:

• Always match preset with packet rate: This is the golden rule. Your rc link preset in betaflight must exactly match the packet rate configured in your ExpressLRS or Crossfire module.
• Use ExpressLRS presets for best results: ExpressLRS has dedicated, optimized presets that are regularly updated. These provide the best feedforward smoothing for ExpressLRS users.
• Check blackbox logs for feedforward spikes: After applying the rc link preset in betaflight, review your blackbox logs. You should see clean, smooth feedforward traces without spikes at each packet interval.
• Reapply preset after firmware updates: When you update Betaflight, ExpressLRS firmware, or your radio firmware, double-check that your rc link preset in betaflight is still applied correctly.
• Keep your RC link clean and stable: A good rc link preset in betaflight works best with a stable RF connection. Ensure your antenna placement is optimal and your packet rate is achievable in your flying environment.
• Test with and without the preset: If you want to appreciate the difference, fly one pack without the rc link preset in betaflight and one pack with it. The difference in smoothness is immediately noticeable.

Using Blackbox to Verify Your RC Link Preset Setup

Blackbox logging is the ultimate tool to verify that your rc link preset in betaflight is working correctly. Here is how to use it:

1. Enable blackbox logging for the “RC Command” and “Feedforward” traces.
2. Perform a flight with aggressive stick movements.
3. Download the log and open it in Betaflight Blackbox Explorer.
4. Look at the RC Command trace—it should appear smooth, not staircase-shaped, after applying the correct rc link preset in betaflight.
5. Examine the Feedforward trace—it should be proportional to your stick movement speed, with no sudden spikes at packet intervals.

If you see spikes in the feedforward trace that align with packet intervals, your rc link preset in betaflight may not be applied correctly, or you may be using the wrong packet rate preset.

A properly configured rc link preset in betaflight produces feedforward that is smooth and proportional, not spiky. This translates directly to a better flying experience.

Frequently Asked Questions About RC Link Preset in Betaflight

Final Thoughts: A Small Setting with a Huge Impact

The rc link preset in betaflight is a small setting with a massive impact on your FPV performance. It is one of the most overlooked configuration steps, yet it directly affects how your drone feels and handles. If you ignore it, your drone may feel unstable even with perfect PID tuning. But once configured correctly, you will notice smoother, cleaner, and more precise control instantly.

Take the one minute required to apply the correct rc link preset in betaflight for your packet rate. Whether you are a freestyle pilot, racer, or long-range cruiser, your drone will fly exactly the way it should—smooth, responsive, and stable.

Remember these key takeaways:

• Your RC signal is step-based, not continuous
• Step signals create feedforward spikes that cause jitter and oscillations
• RC smoothing filters these steps—and the rc link preset in betaflight configures it optimally
• Always match your preset to your exact packet rate
• Reapply the rc link preset in betaflight whenever you change your packet rate or update firmware

At Mall of Aviation, we help you not just build drones, but fly them better. A properly configured rc link preset in betaflight is one of the simplest upgrades you can make to your flight experience. Apply it today and feel the difference.
